Warm-Up Converter (Wu TWC)

Front Pipe Removal:

REMOVAL
1. Disconnect negative battery terminal.
2. Disconnect sub-oxygen sensor electrical connector.
3. Remove support bracket.

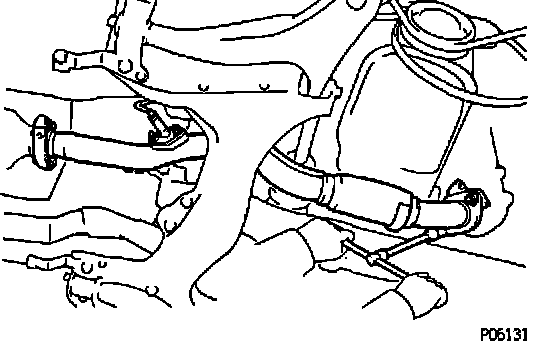

4. Using a 14mm deep socket, remove two nuts securing the front pipe to the warm-up converter.
5. Remove remaining front pipe bolts and remove pipe.

Converter Brace:

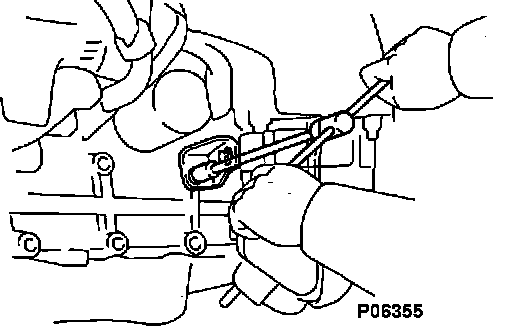

6. Remove bolts and converter brace.

Converter Removal:

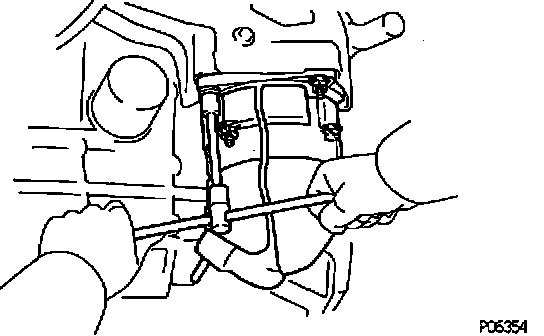

7. Remove converter and gasket.

Heatshield Attachment:

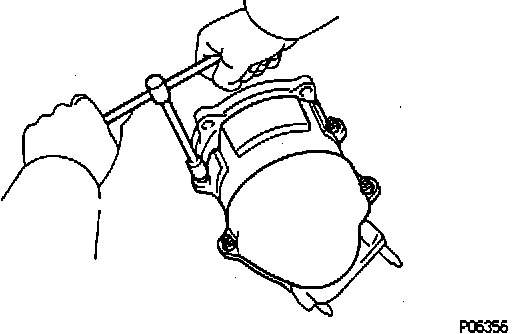

8. Remove securing nuts and remove heat shield.

Gasket Installation:

INSTALLATION
1. Install converter using a new gasket and new nuts.

Torque to: 22 ft.lb (29 Nm)

Manifold Support:

2. Install manifold support.

Torque to: 29 ft.lb (39 Nm)

3. Reverse remainder of procedure to complete.
