Receiver Dryer: Service and Repair

RECEIVER REMOVAL

Receiver:

1. Discharge Refrigerant From Refrigeration System

INSTALLATION HINT: Evacuate air from refrigeration system.

Charge system with refrigerant and inspect for leakage of refrigerant.
Charging the System

Specified amount: 700 ± 50 g (24.69 ± 1.76 oz.)

2. Remove Radiator Grille And Horn.


3. Disconnect 2 Liquid Tubes From Receiver.
Remove the 2 bolts and disconnect the both tubes.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

REMOVAL NOTE: Cap the open fittings immediately to keep moisture out of the system.

INSTALLATION HINT: Lubricate 2 new O-rings with compressor oil and install the tubes.

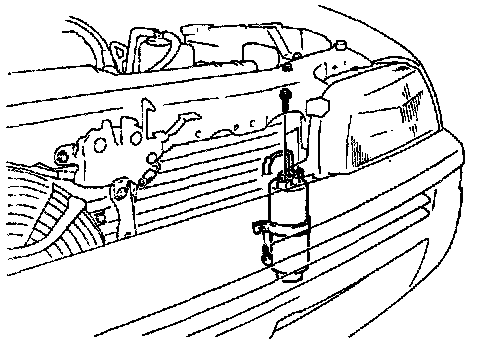

4. Remove Receiver From Receiver Holder.

INSTALLATION HINT: If receiver was replaced, add compressor oil to compressor.

Add 20 cc (0.71 fl.oz.)

Compressor oil:
ND-OIL 8 or equivalent

RECEIVER INSTALLATION
Installation is in the reverse order of removal.
