Heater Core: Service and Repair

HEATER RADIATOR REMOVAL







1. Remove Heater Unit
Service and Repair

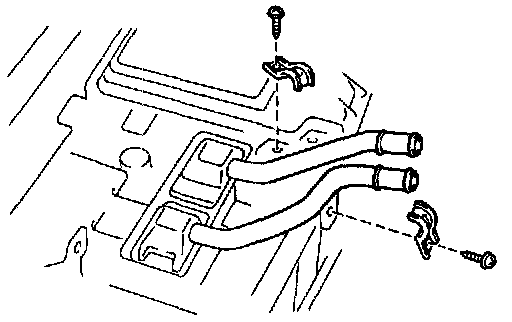

2. Remove Heater Radiator
a. Remove 3 screws and 2 plates and clamp.
b. Pull the radiator upward.

HEATER RADIATOR INSTALLATION
Installation is in the reverse order of removal.
