Home
>>
Toyota
>>
1994
>>
Corolla Sedan L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Condenser Fan Motor Relay
>>
Testing and Inspection
>>

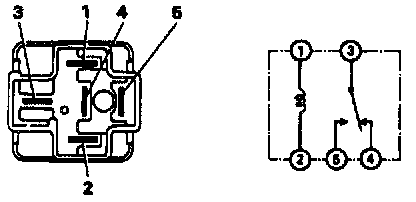

Fan Relay Number 2
Fan Relay Number 2
Inspect
Cooling Fan Relay

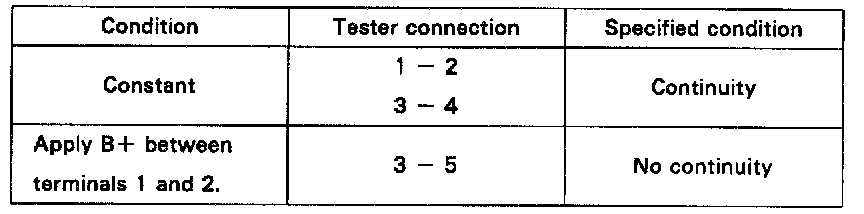

No.2 (Marking: A.C Fan No.2) Continuity
If continuity is not as specified, replace the relay.
