Compressor Clutch Relay: Testing and Inspection
Inspect

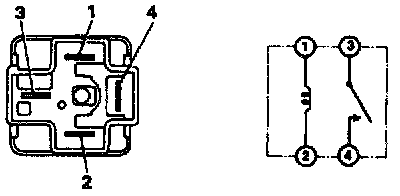

Magnetic Clutch Relay

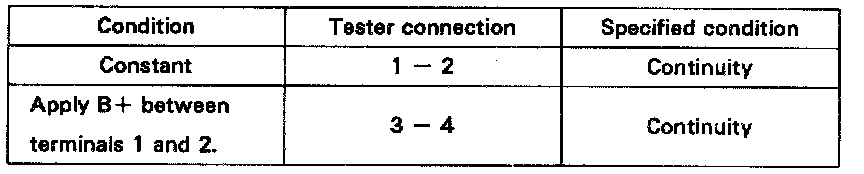

(Marking: MG CLT) Continuity
If continuity is not as specified, replace the relay.
