Air Conditioning Switch: Testing and Inspection

REMOVE


- Carefully remove AC switch by prying it out of the instrument panel with a thin screwdriver.

Tech Tip: Put some scotch tape on the end of your screwdriver before prying out the switch. This will reduce the chance of scratching the dash.

Testing AC Switch:

TEST

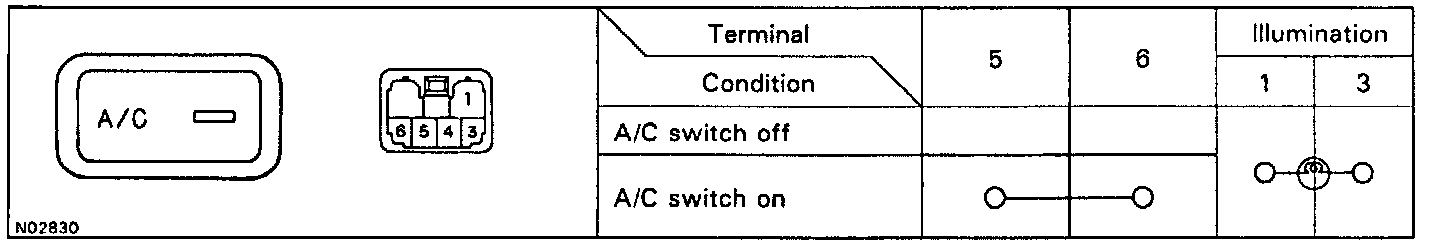

- Check switch function according to the table.
- If the switch fails the test, replace it.
