System Diagram
System Diagram

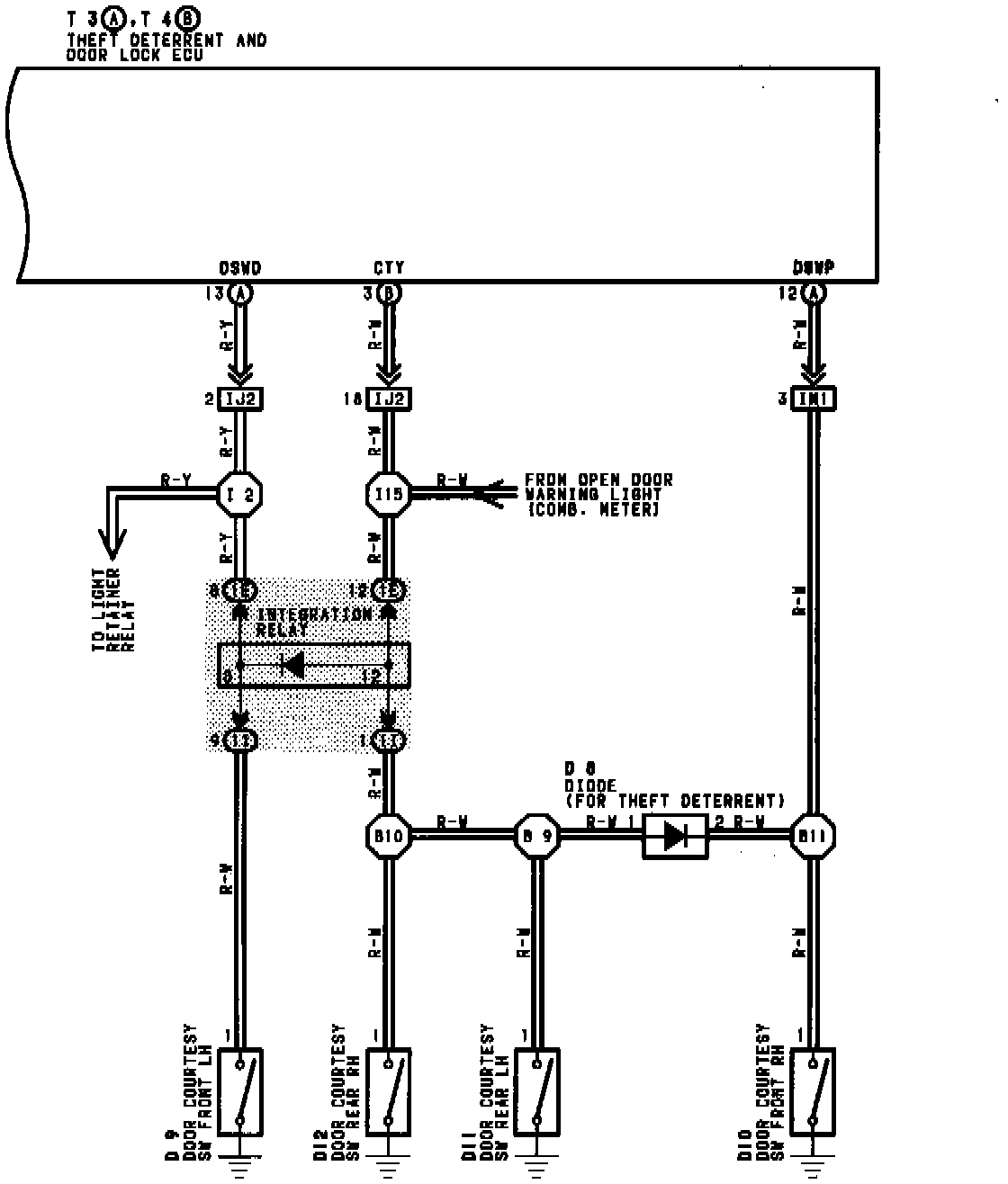

Theft Deterrent And Door Lock Wiring Diagram:

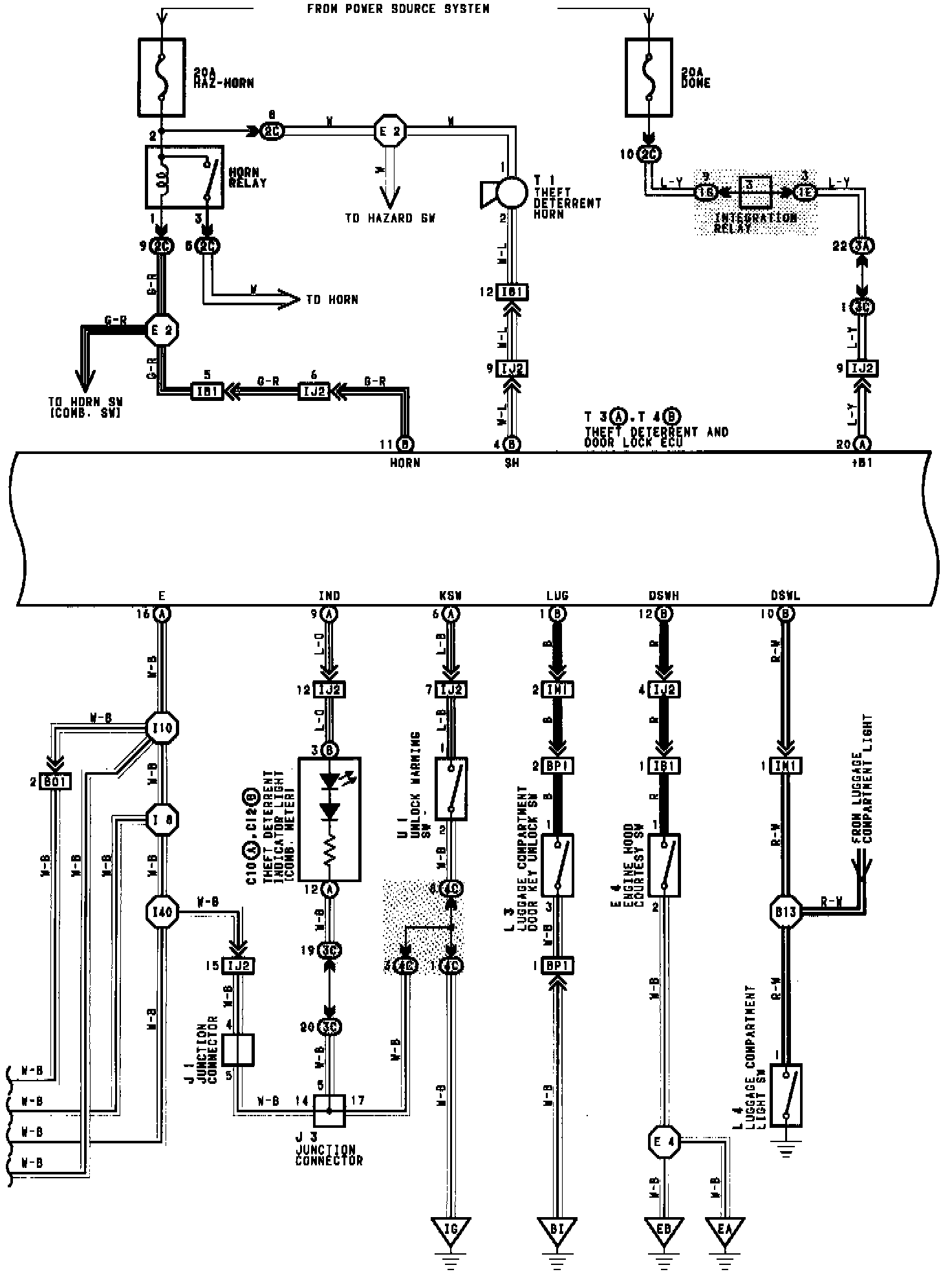

Theft Deterrent And Door Lock Wiring Diagram:

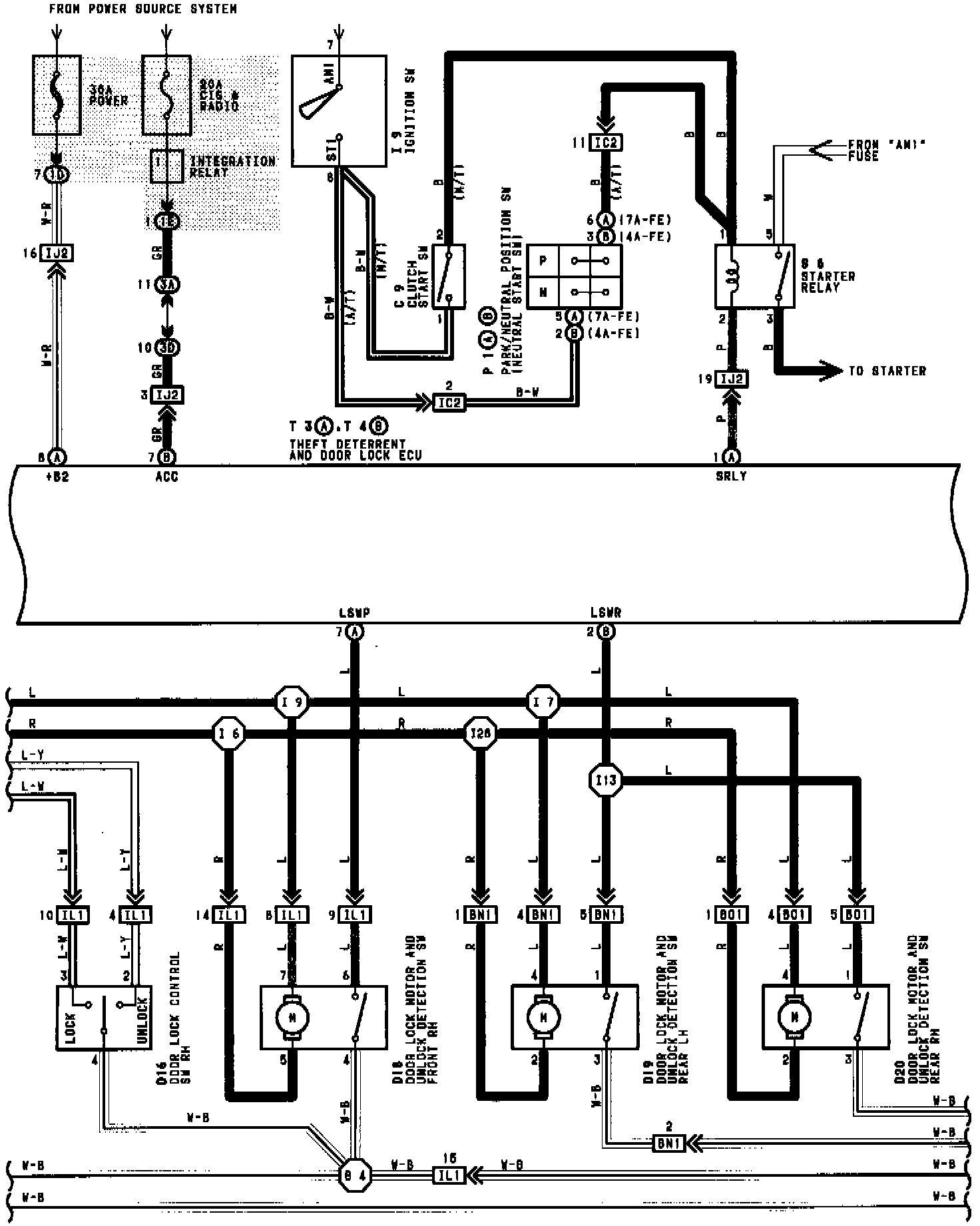

Theft Deterrent And Door Lock Wiring Diagram:
Theft Deterrent And Door Lock Wiring Diagram:
