Tail Lamp
Tail Lamp

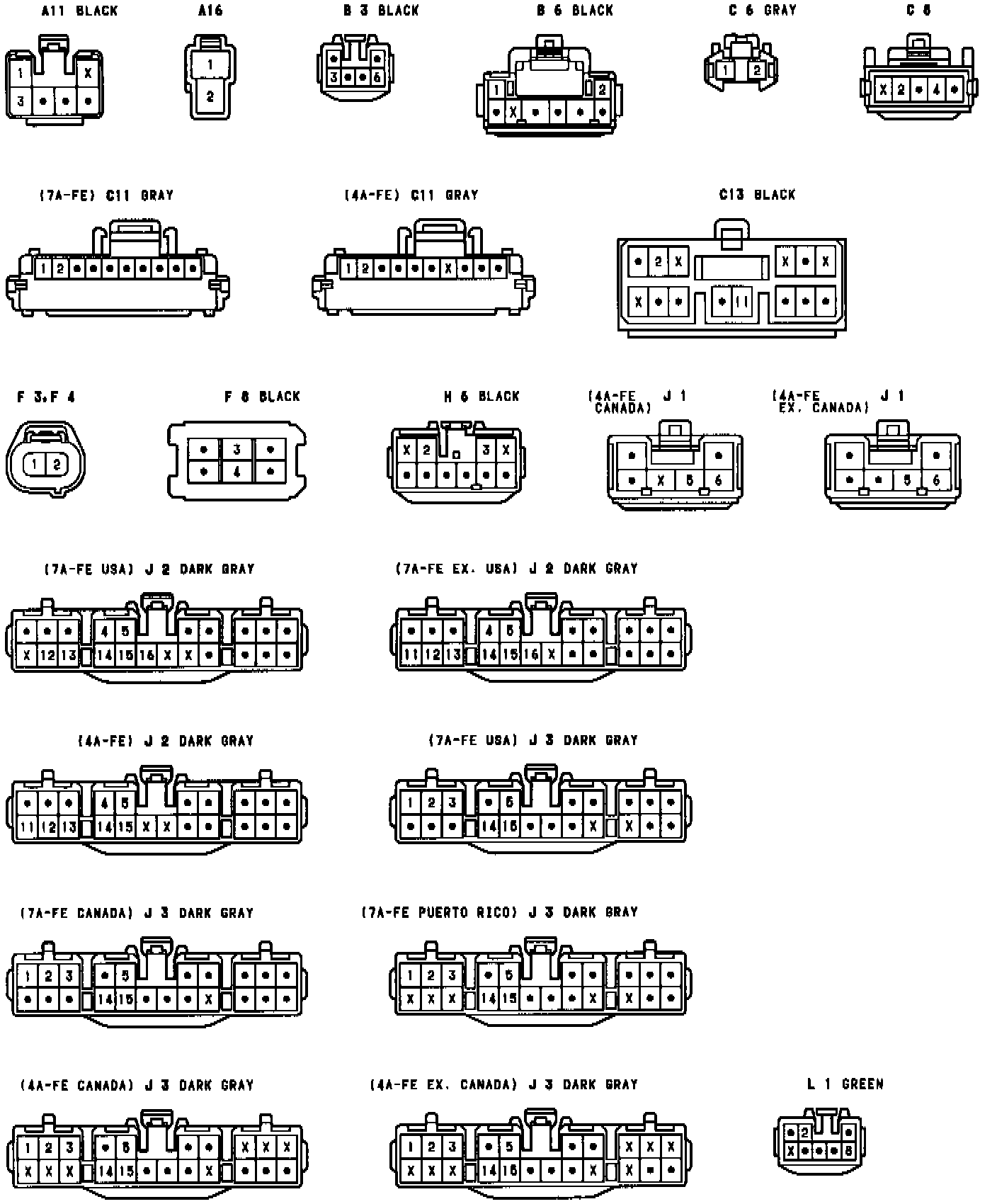

Taillight And Illumination Connector Views:
Taillight And Illumination Wiring Diagram:
