Corolla Sedan L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Diagrams
>>
Connector Views
Connector Views

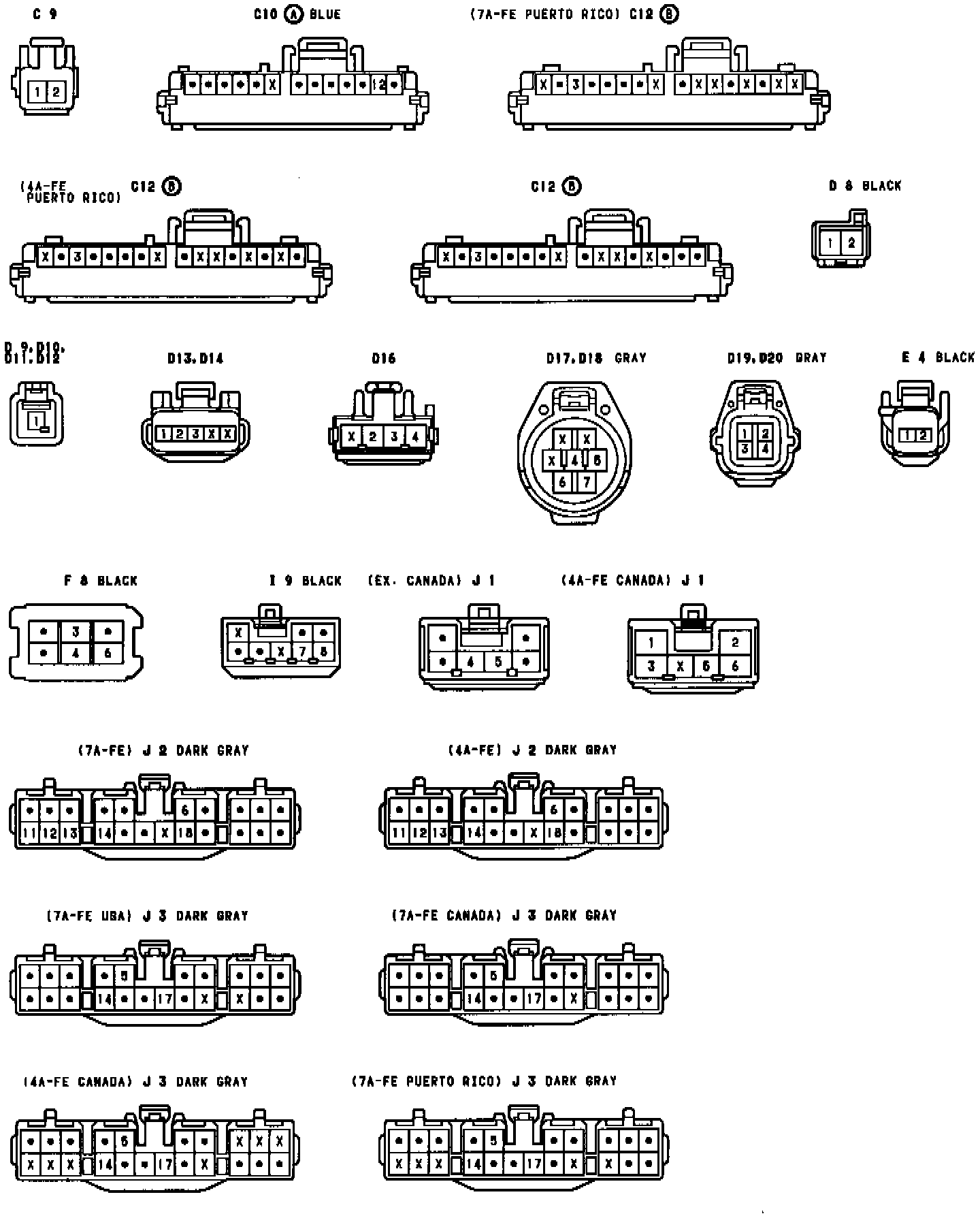

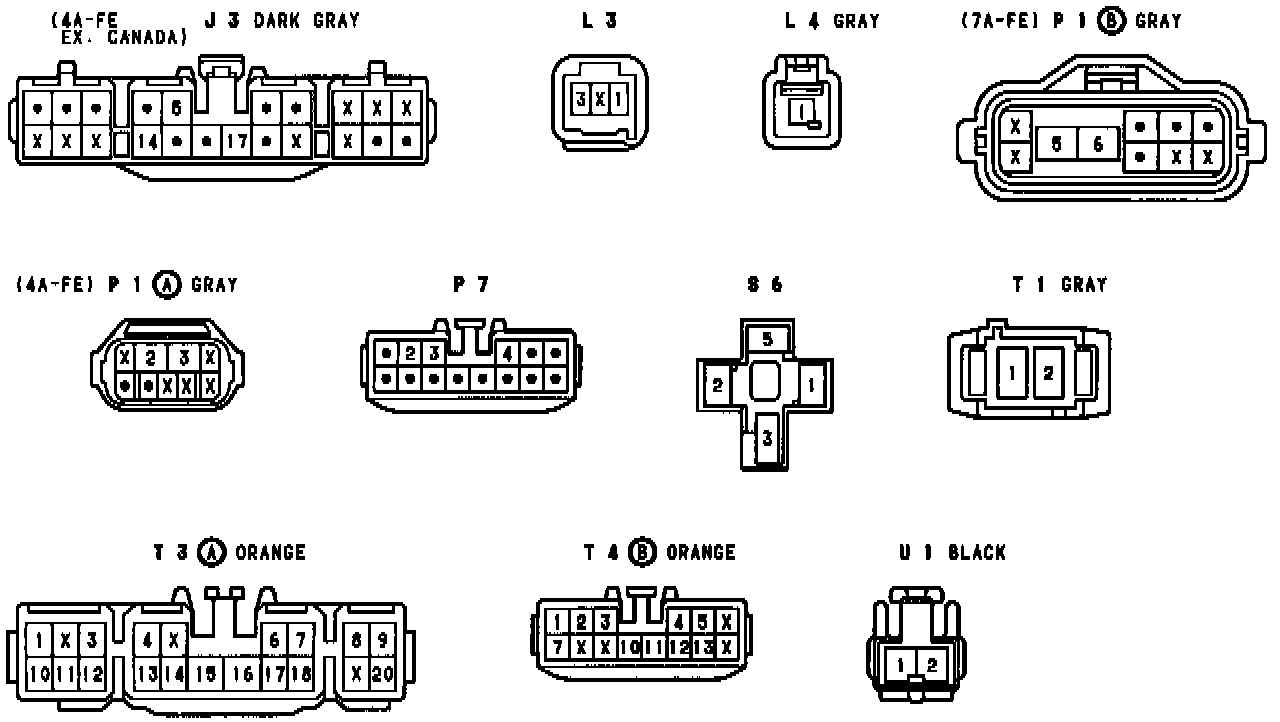

Theft Deterrent And Door Lock Connector Views:
Theft Deterrent And Door Lock Connector Views:
