Engine Control System

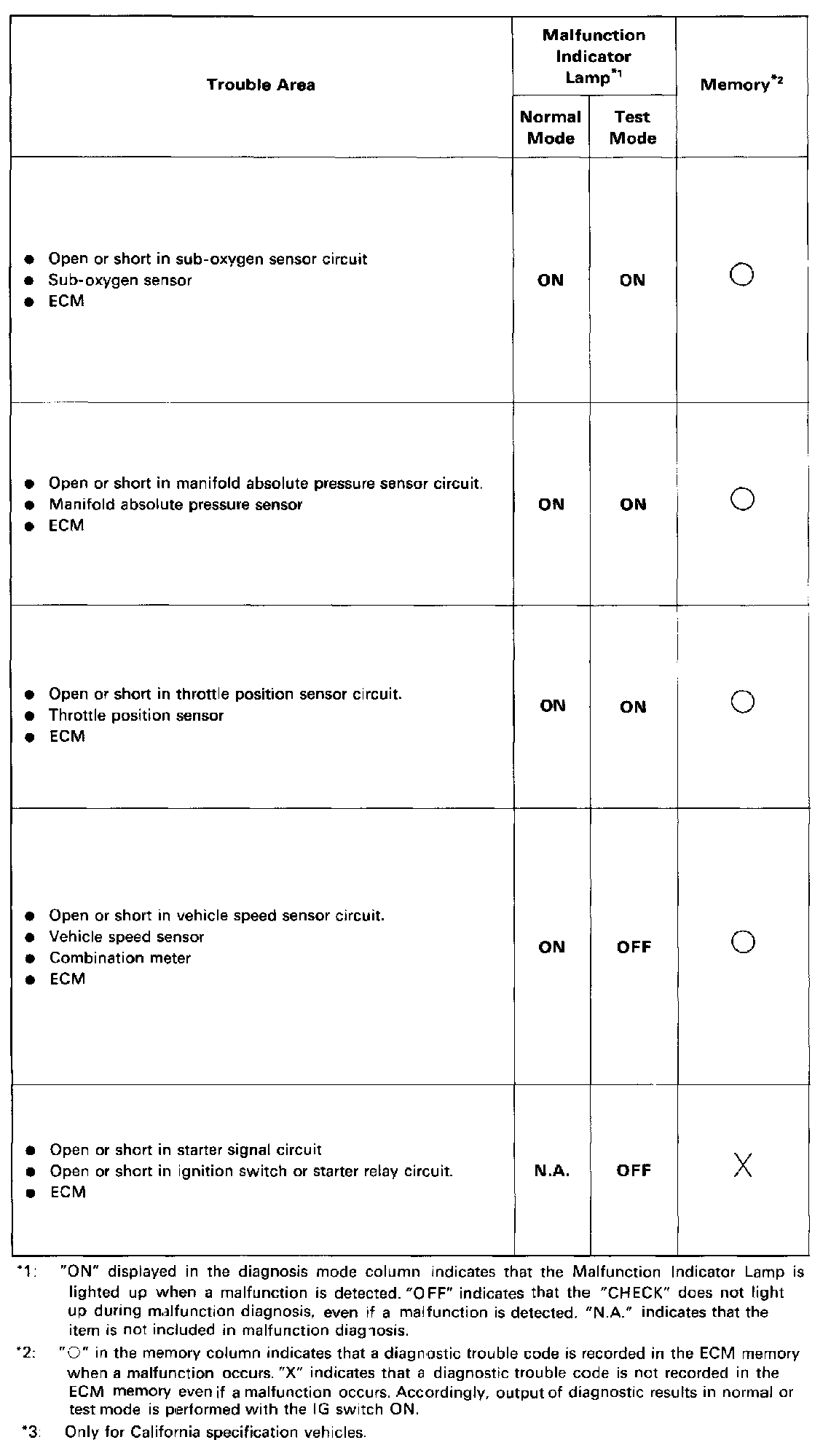

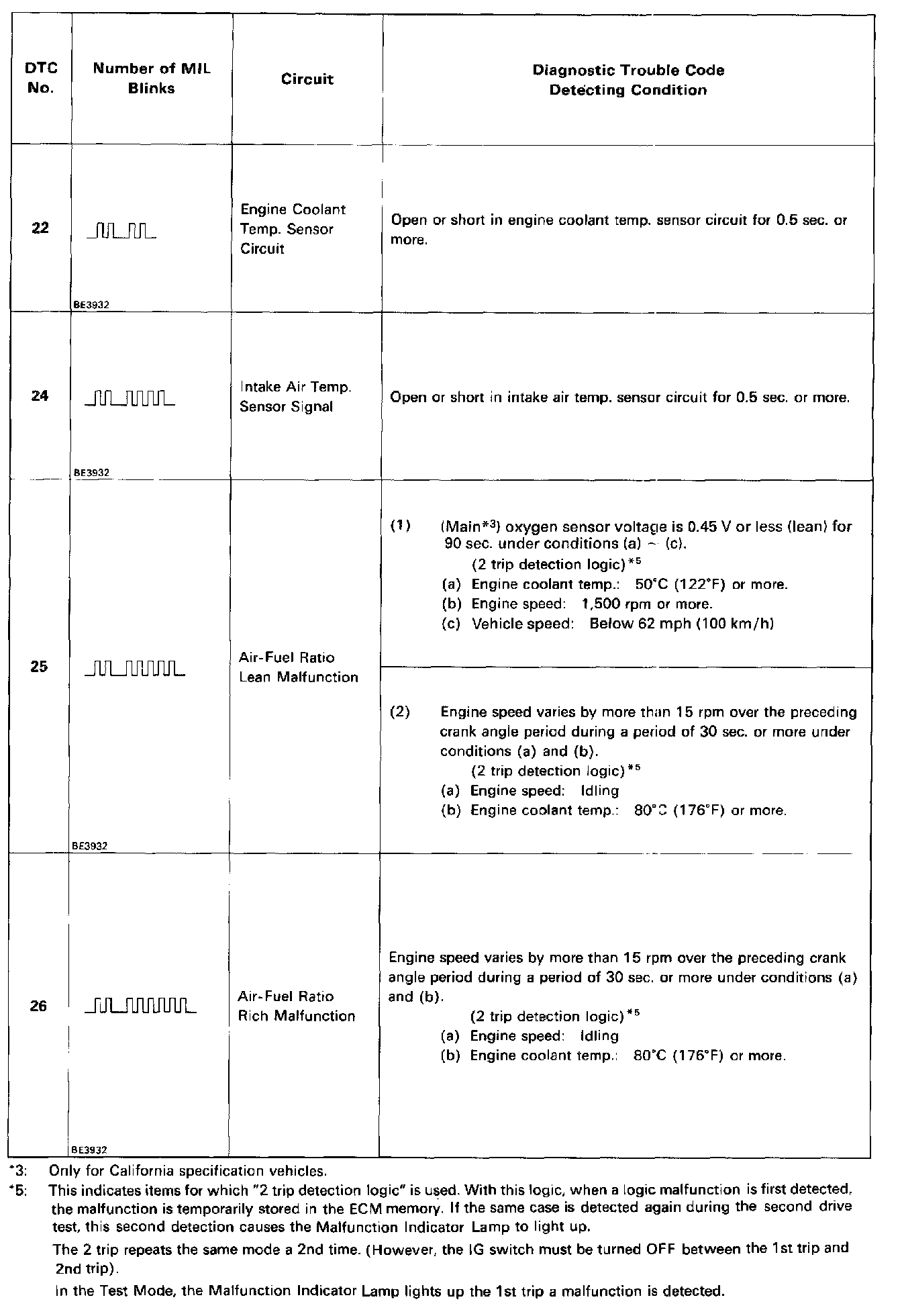

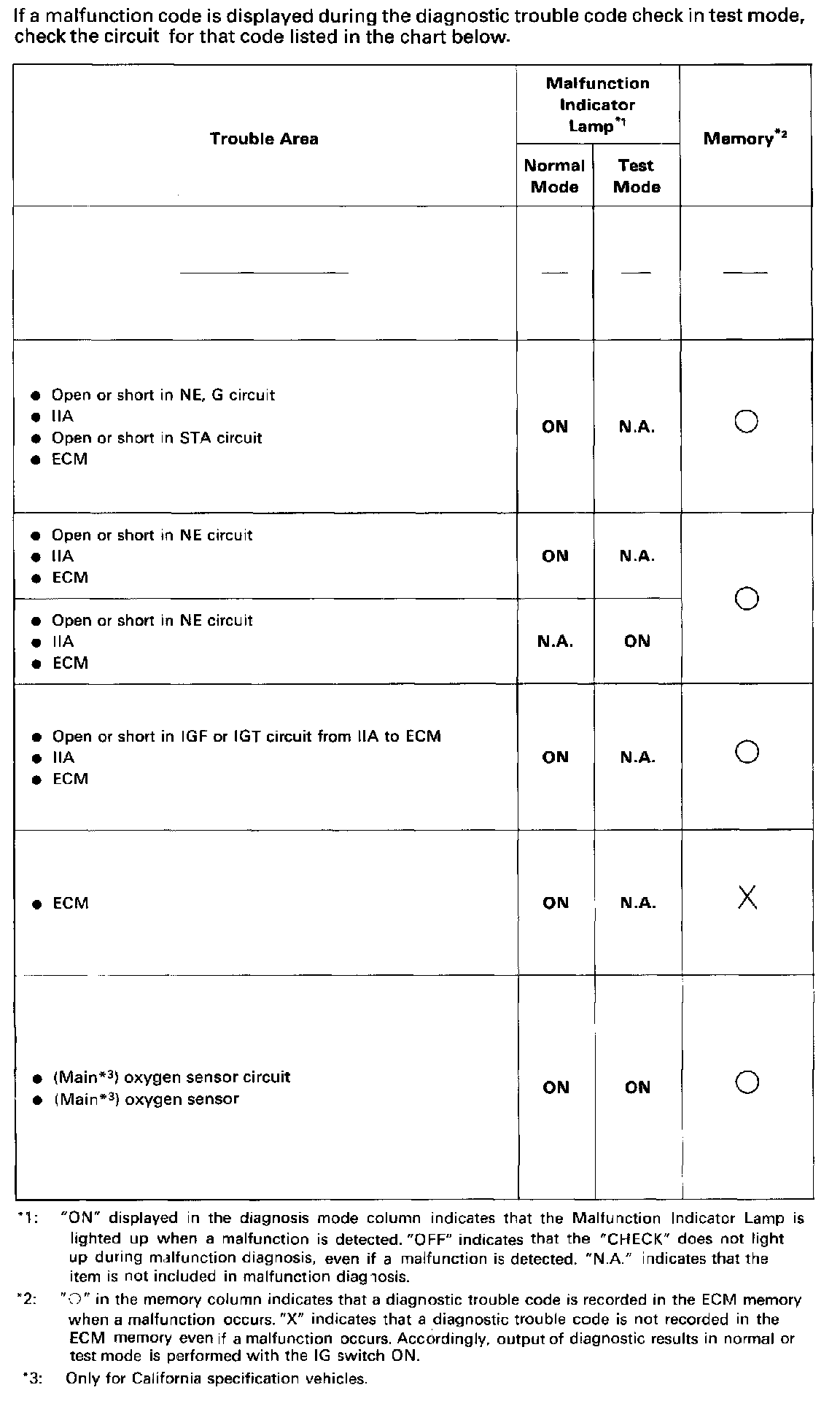

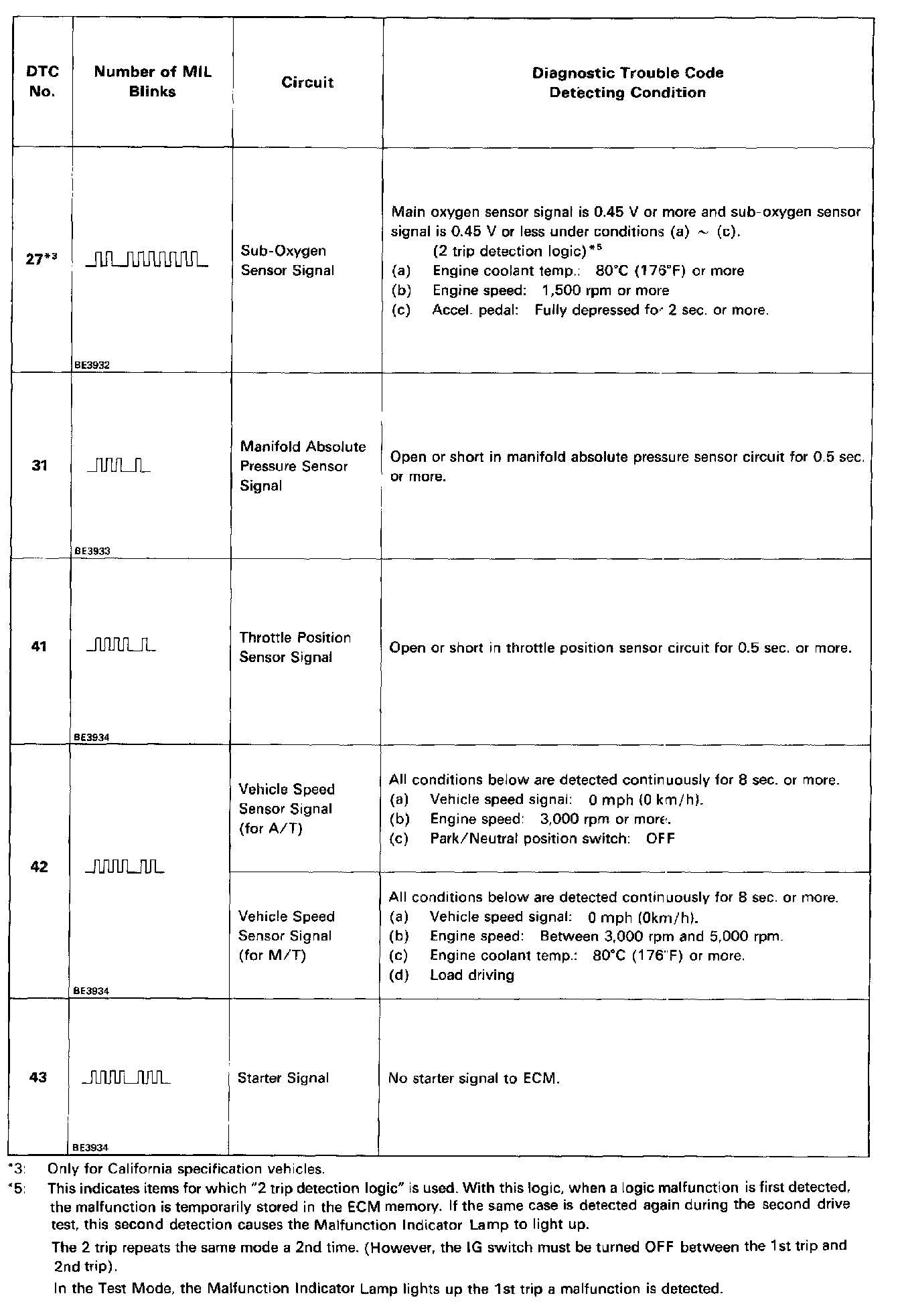

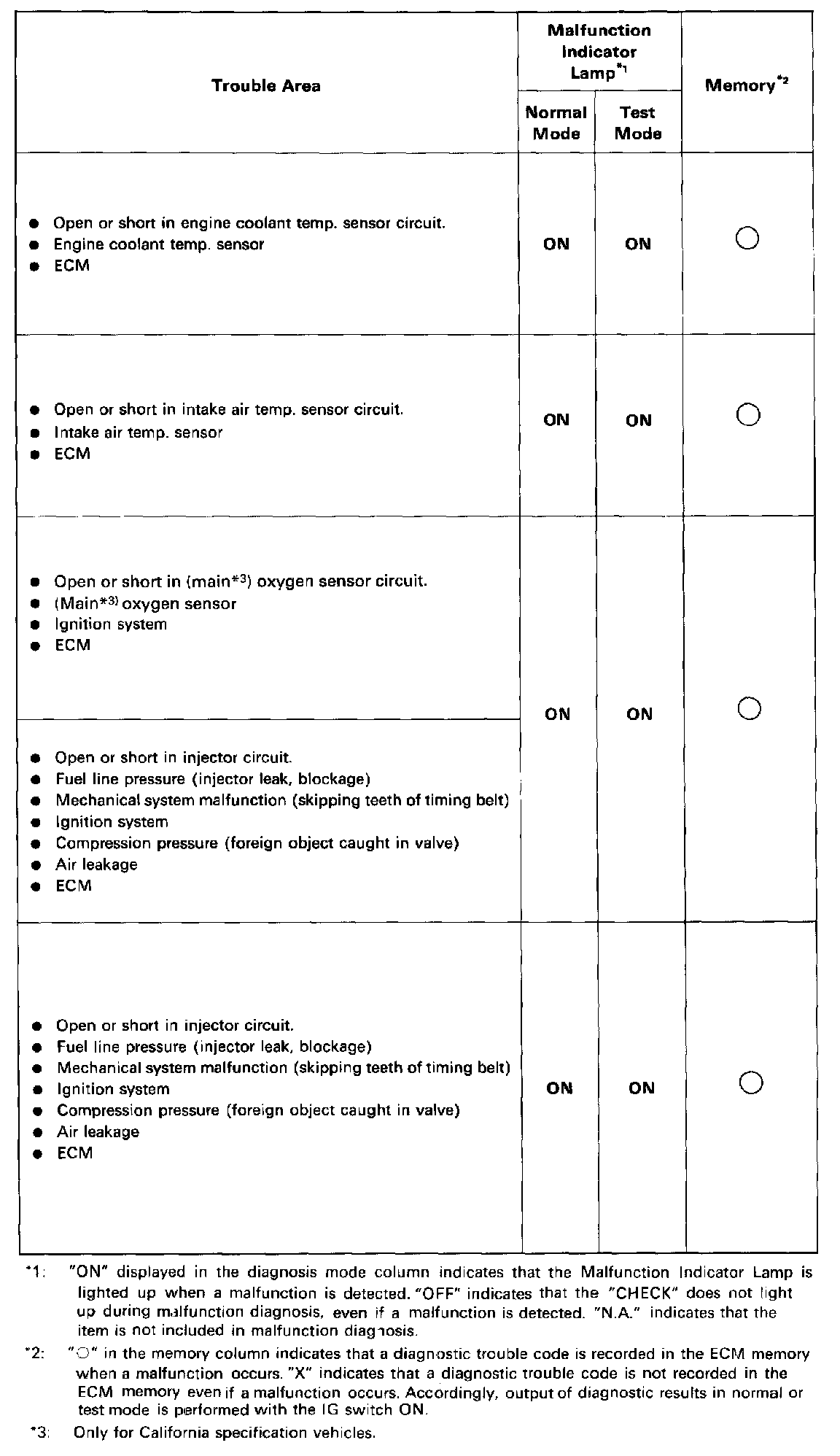

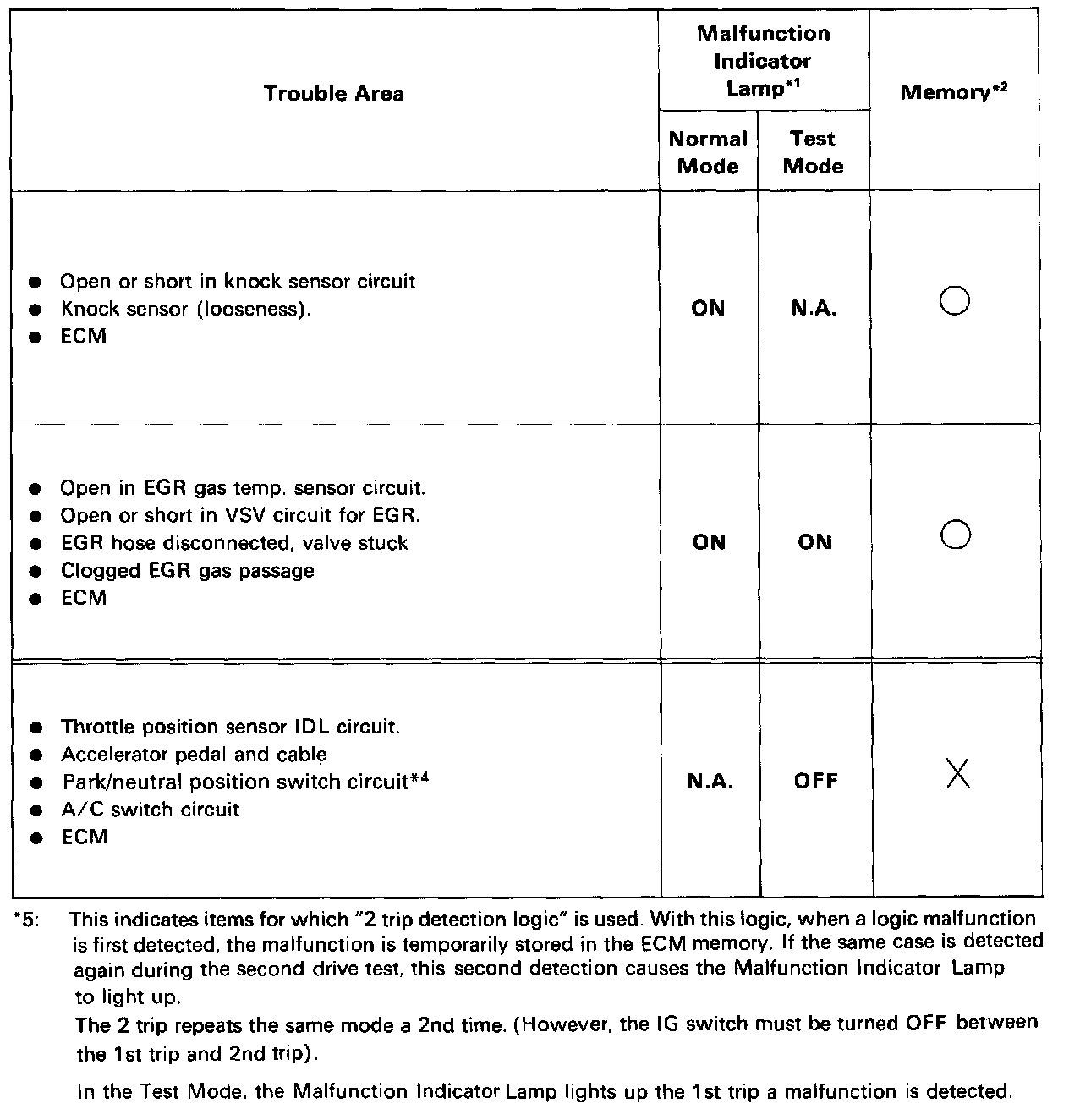

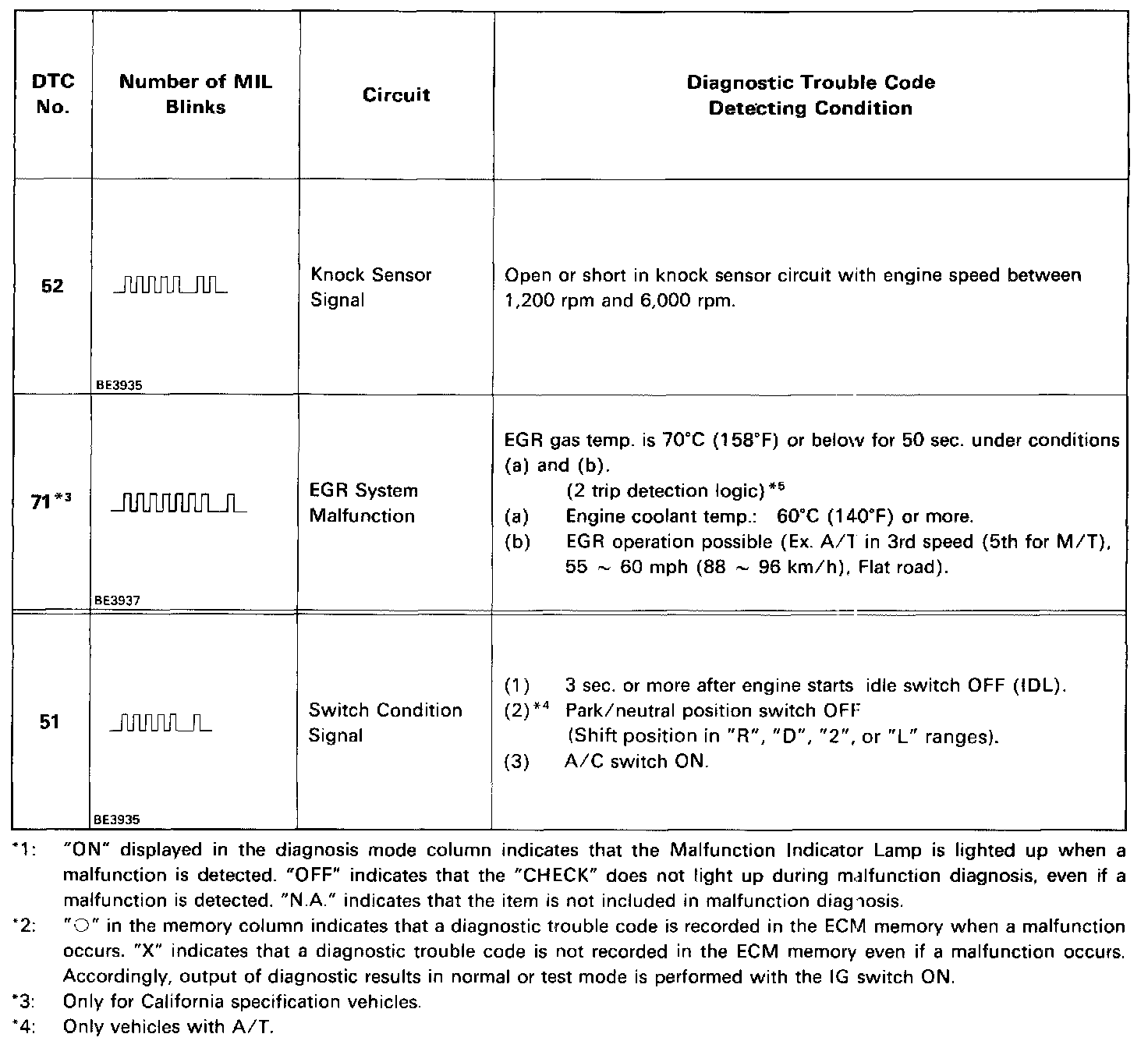

TROUBLE CODE DESCRIPTIONS







PART 1 OF 4







PART 2 OF 4







PART 3 OF 4







PART 4 OF 4

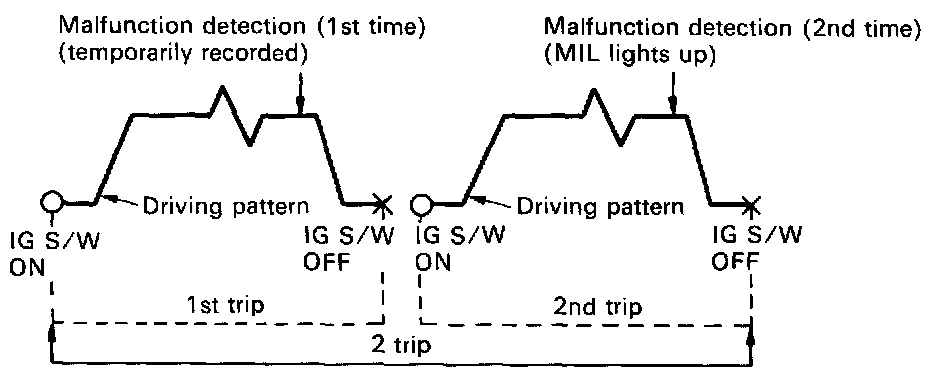

2nd Trip Detection Logic
