Off-Vehicle Inspection
Off-Vehicle Inspection
OFF-VEHICLE INSPECTION MATRIX CHART

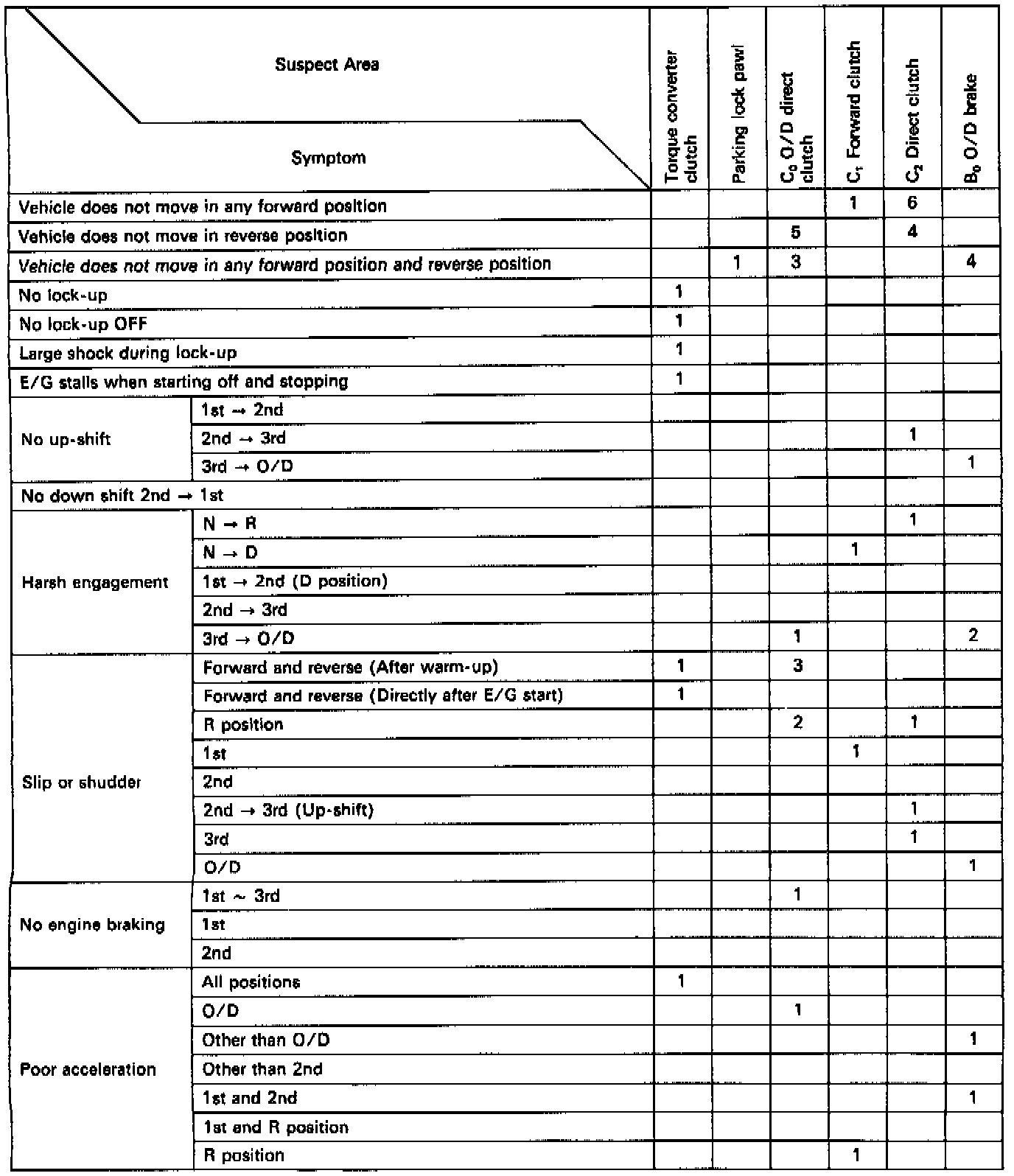

OFF-VEHICLE REPAIR MATRIX - PART 1:
Part 1 of 2

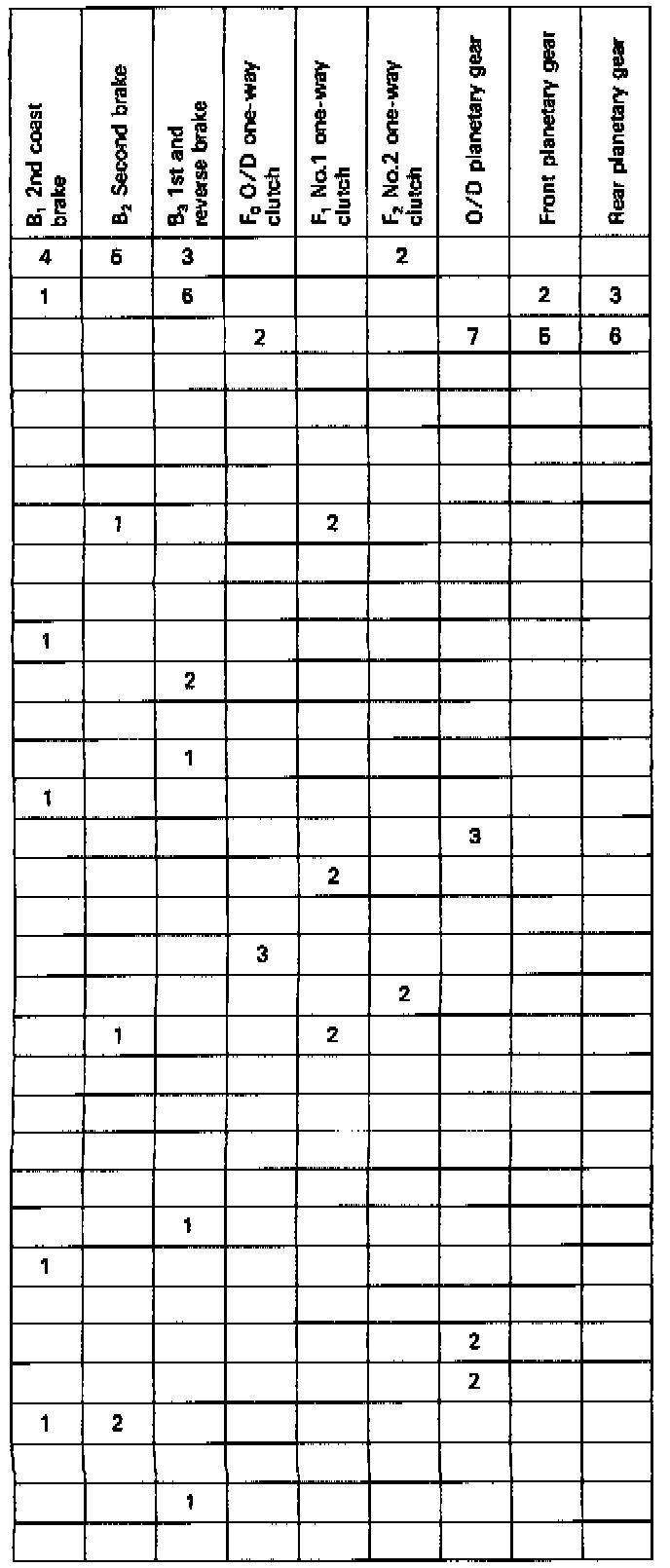

OFF-VEHICLE REPAIR MATRIX - PART 2:
Part 2 of 2
