Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1994
>>
Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Locations
>>
Connector Locations
>>
In Instrument Panel
In Instrument Panel

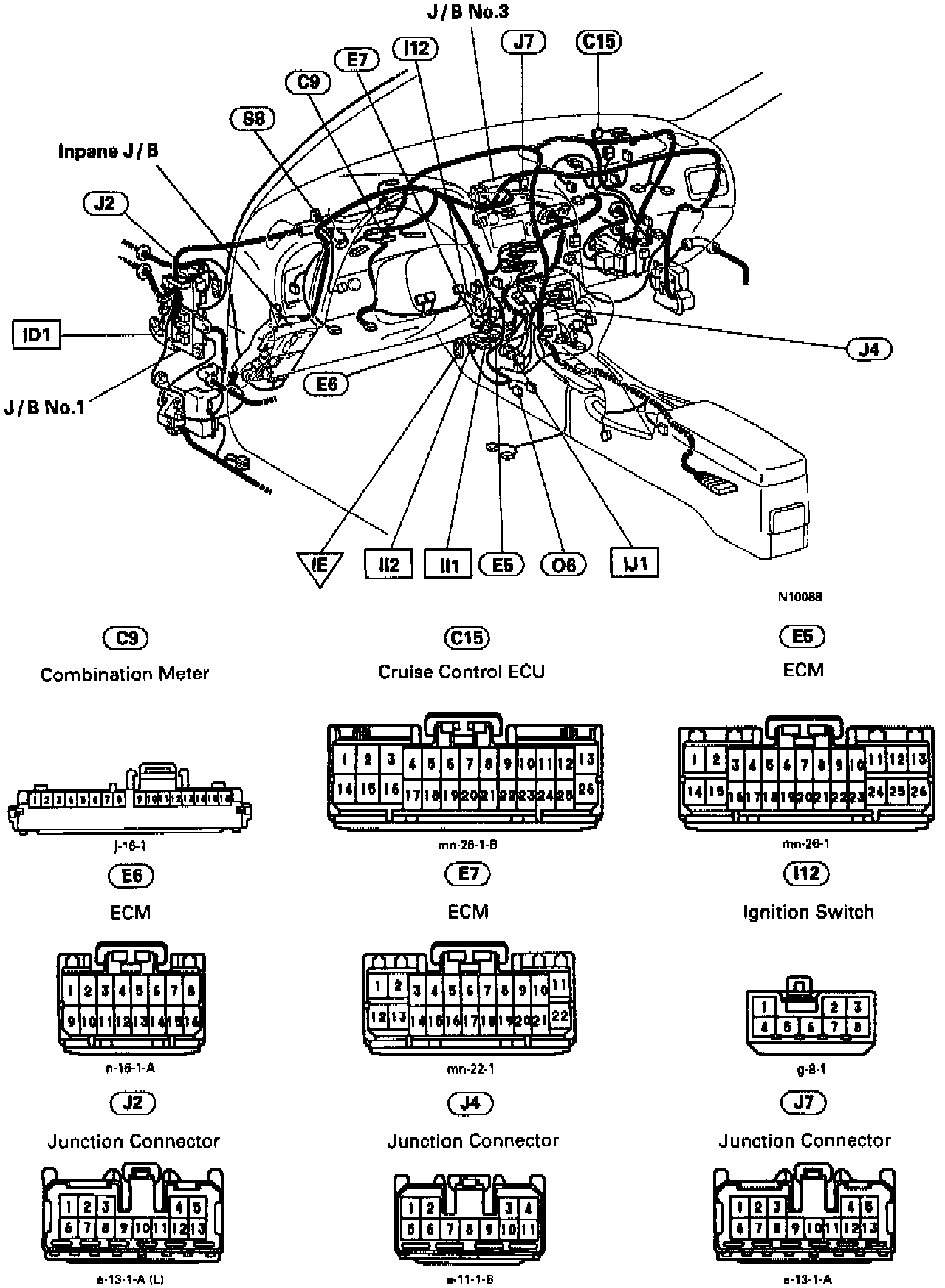

Location Of Instrument Panel Connectors:
