Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Locations
>>
Connector Locations
>>
In Engine Compartment
In Engine Compartment

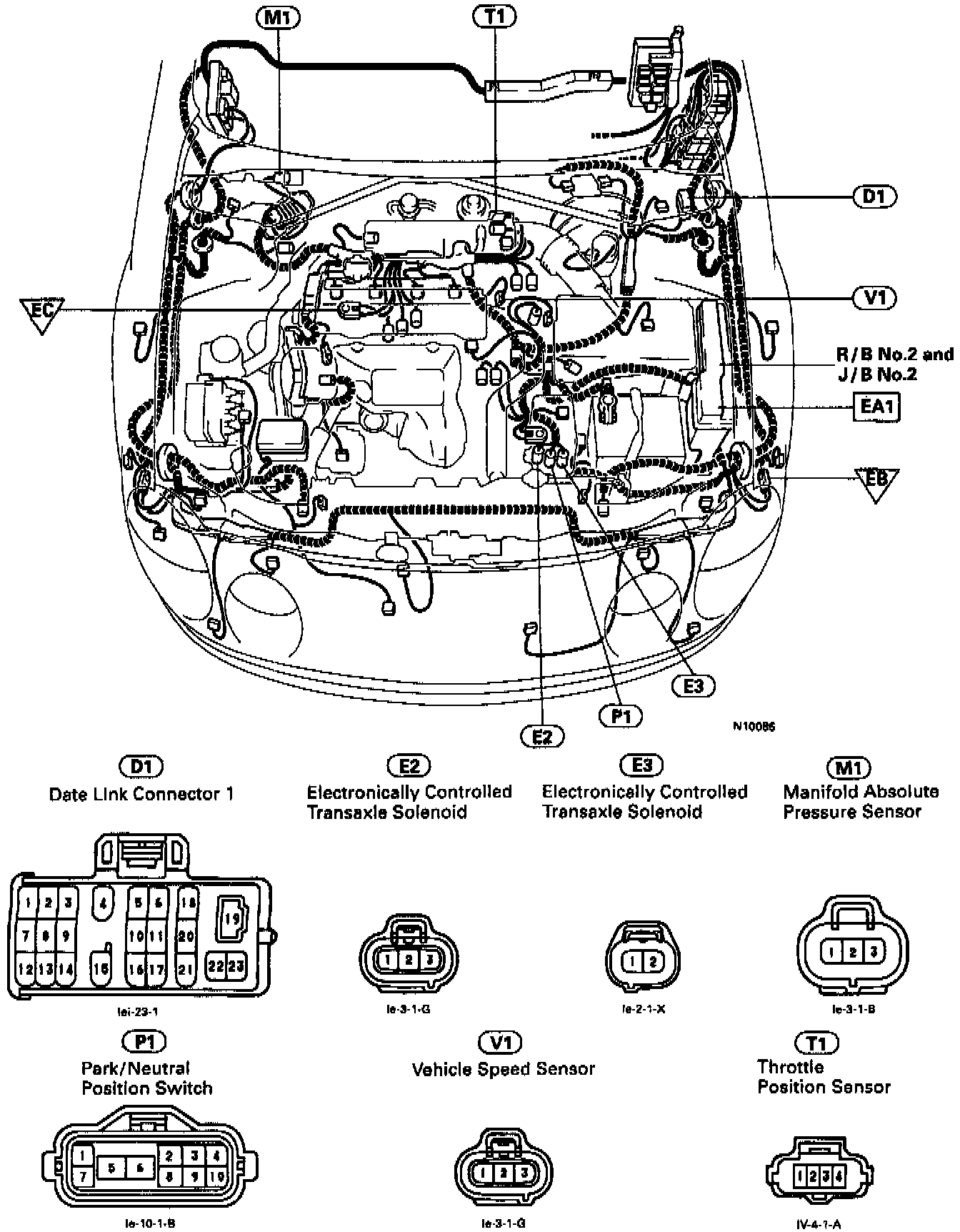

Connectors In The Engine Compartment:
