Fuel Tank: Service and Repair

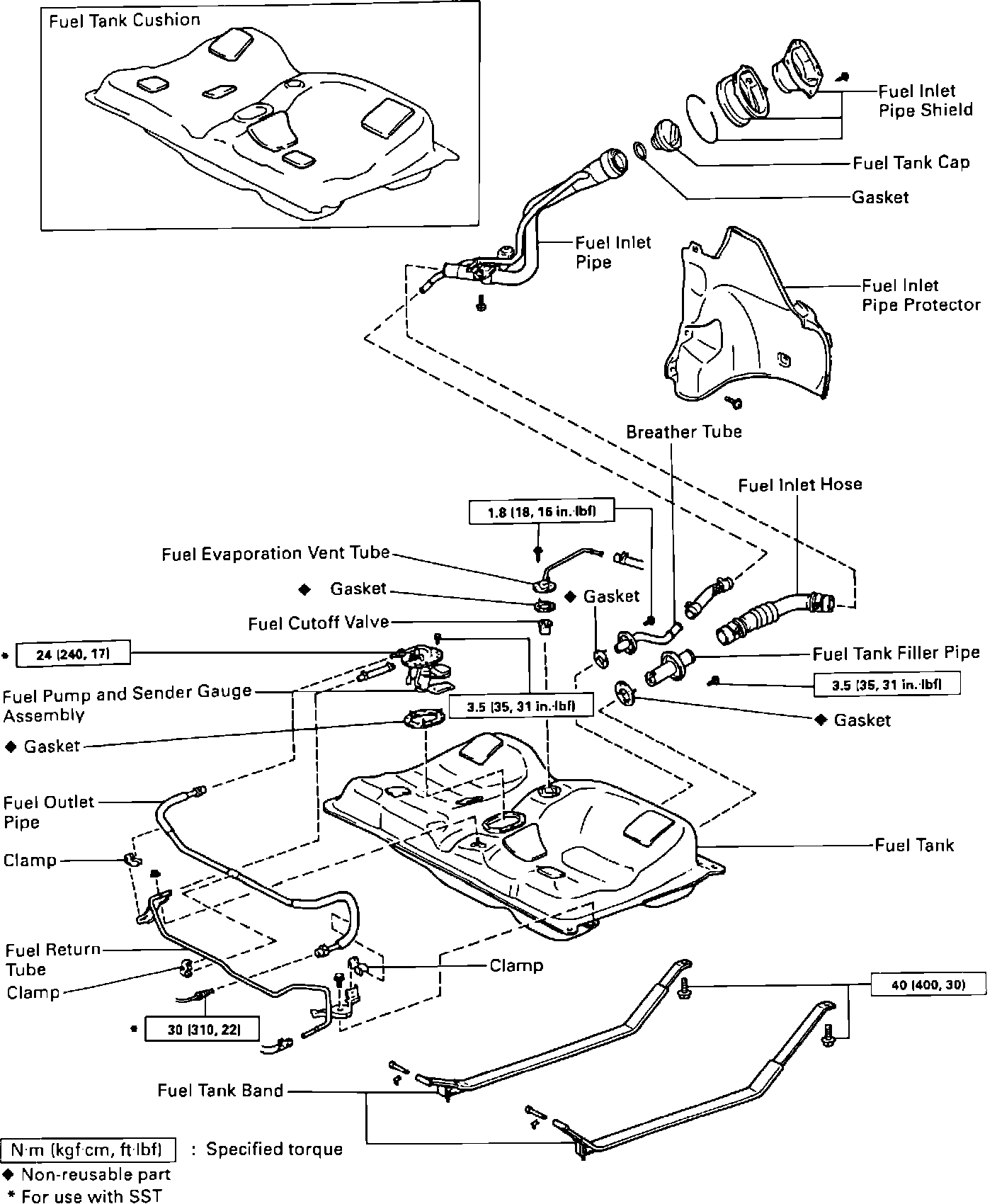

Refer to illustration for Fuel Tank removal, noting all torque values during reassembly.

PRECAUTIONS
1. Always use new gaskets when replacing the fuel tank or component parts.
2. Apply the proper torque to all parts tightened.
