Toyota
>>
1994
>>
Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Pump
>>
Diagrams
>>
Exploded Views
Exploded Views

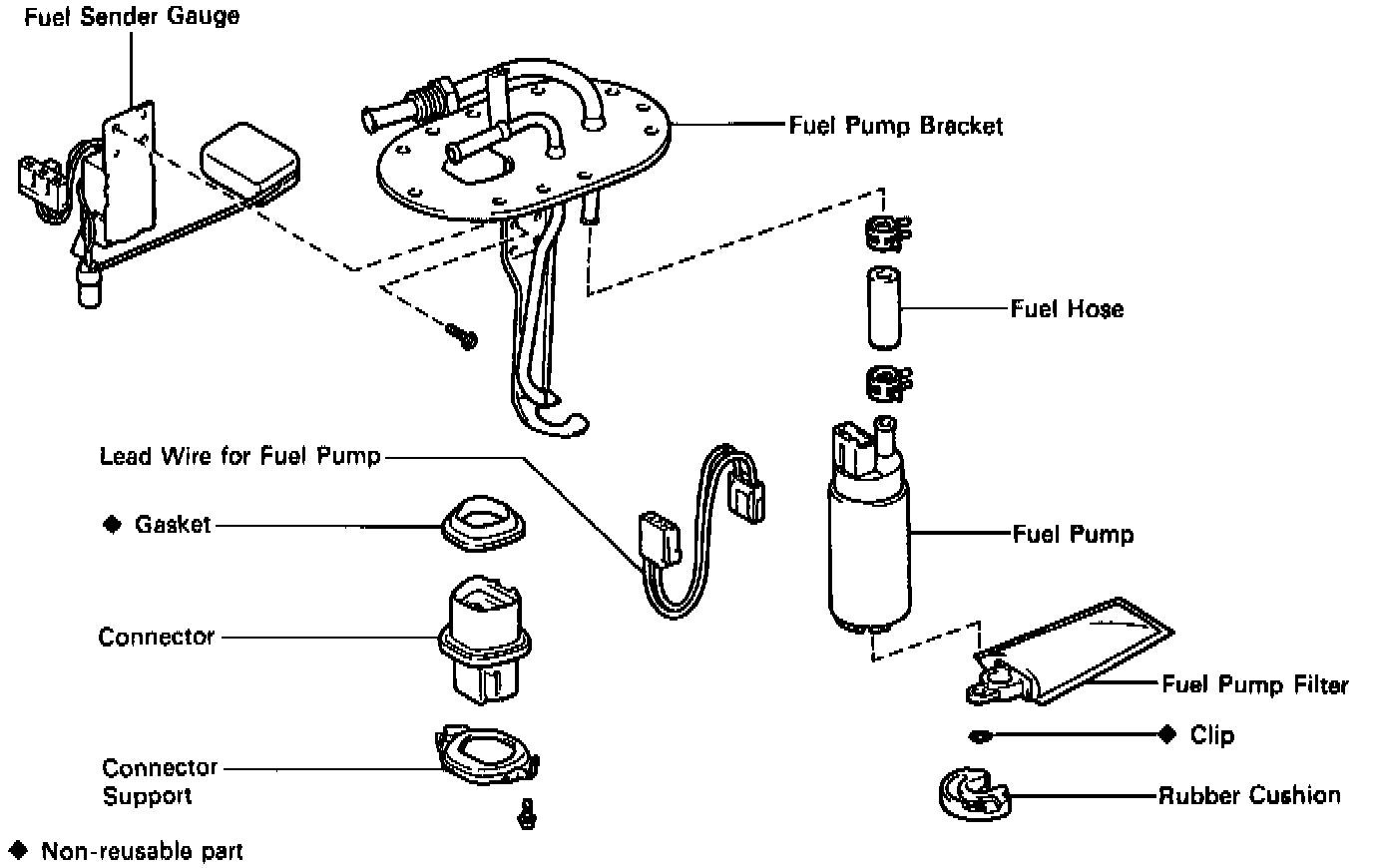

Fuel Pump And Fuel Gauge Sender Bracket:
