California Models Only

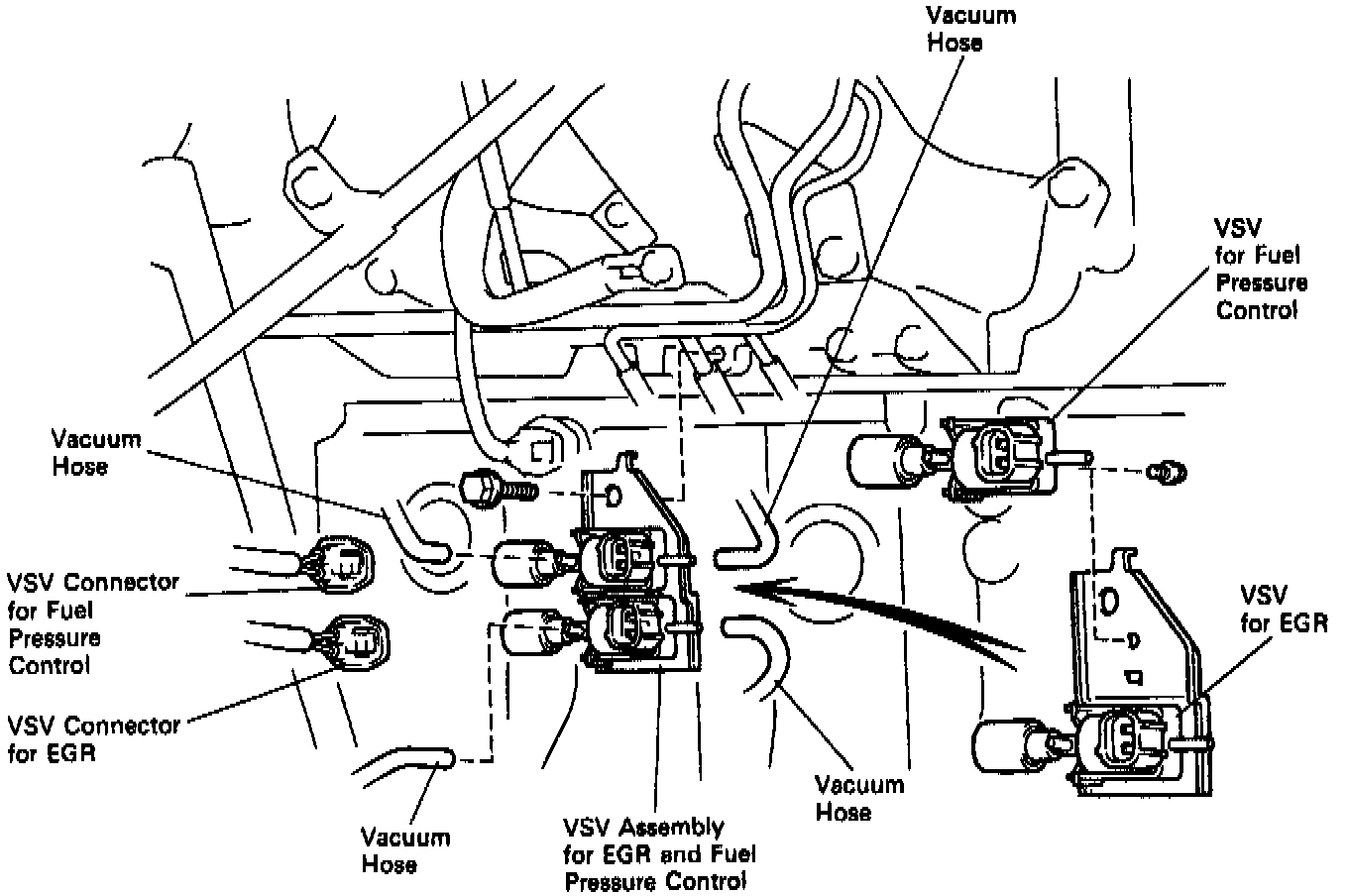

VACUUM SWITCHING VALVE (VSV) FOR EGR

VSV For EGR - California Models:

Removal
- Disconnect VSV electrical connector.
- Remove hose connections from VSV.
- Unbolt and remove valve.
Installation
- Reverse listed procedures to install VSV.
