Evaporative Emissions System: Diagrams

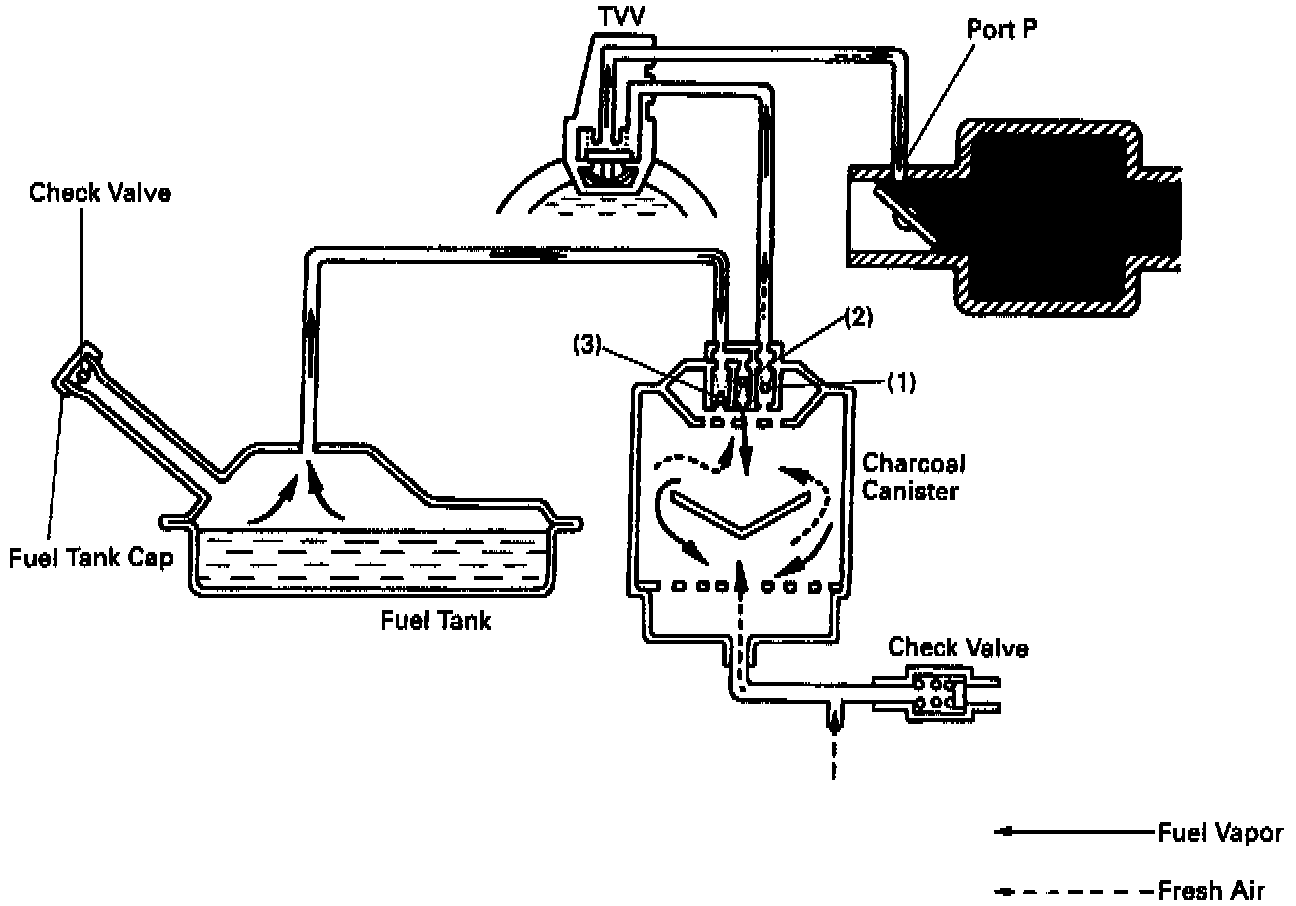

Schematic View Of Vacuum Hose Connections For The EVAP System:
