Home
>>
Toyota
>>
1994
>>
Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Connector Views
>>
Canada
Canada

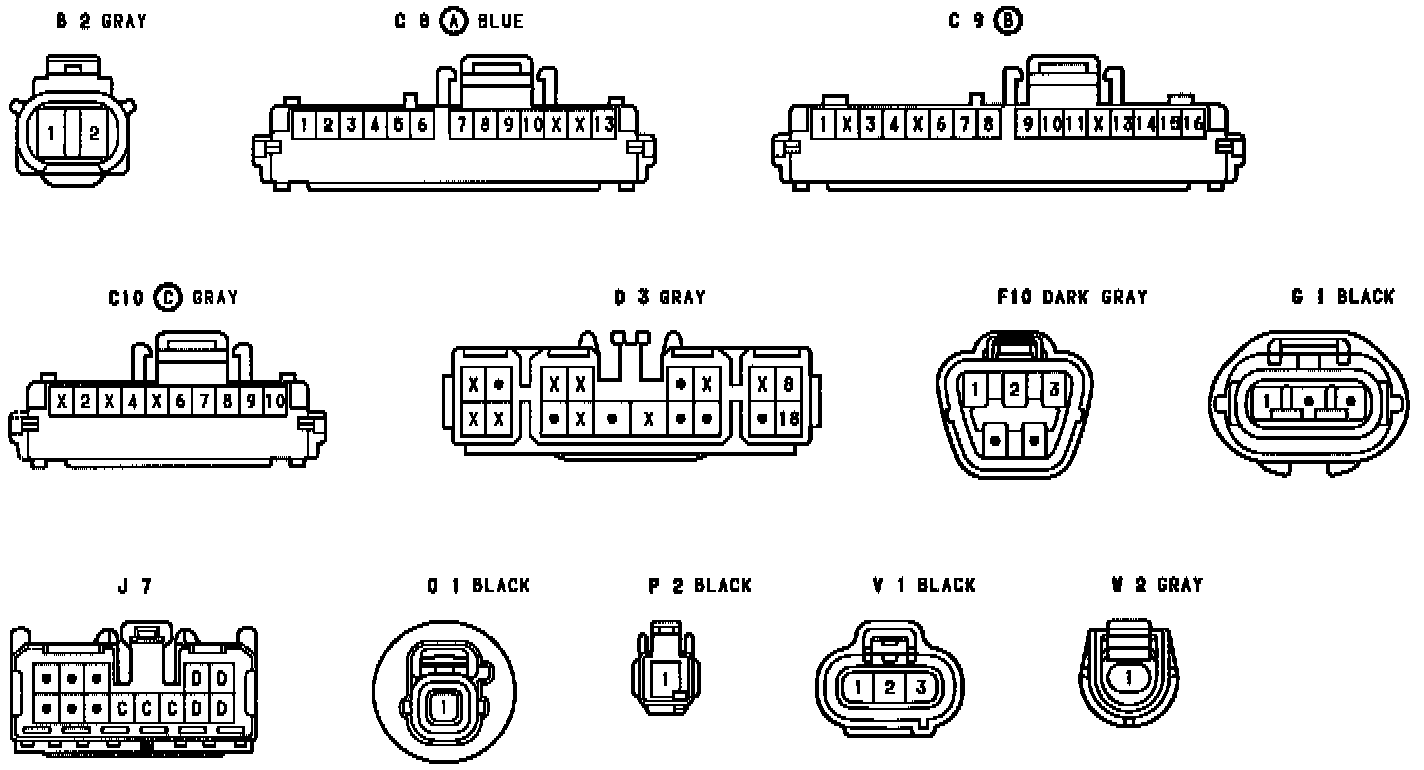

Combination Meter (Canada) Connector Views:
