EGR Backpressure Transducer: Service and Repair

Inspecting and cleaning the EGR Vacuum Modulator filter.

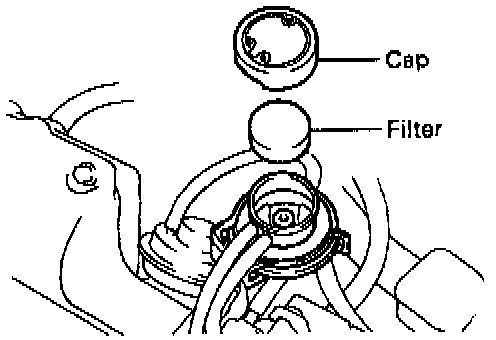

a. Remove the cap and filter.
b. Check the filter for contamination or damage.
c. Using compressed air, clean the filter.
d. Reinstall the filter and cap.
HINT: Install the filter with the coarser surface facing the atmospheric side (outward).
