Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Source
Power Source

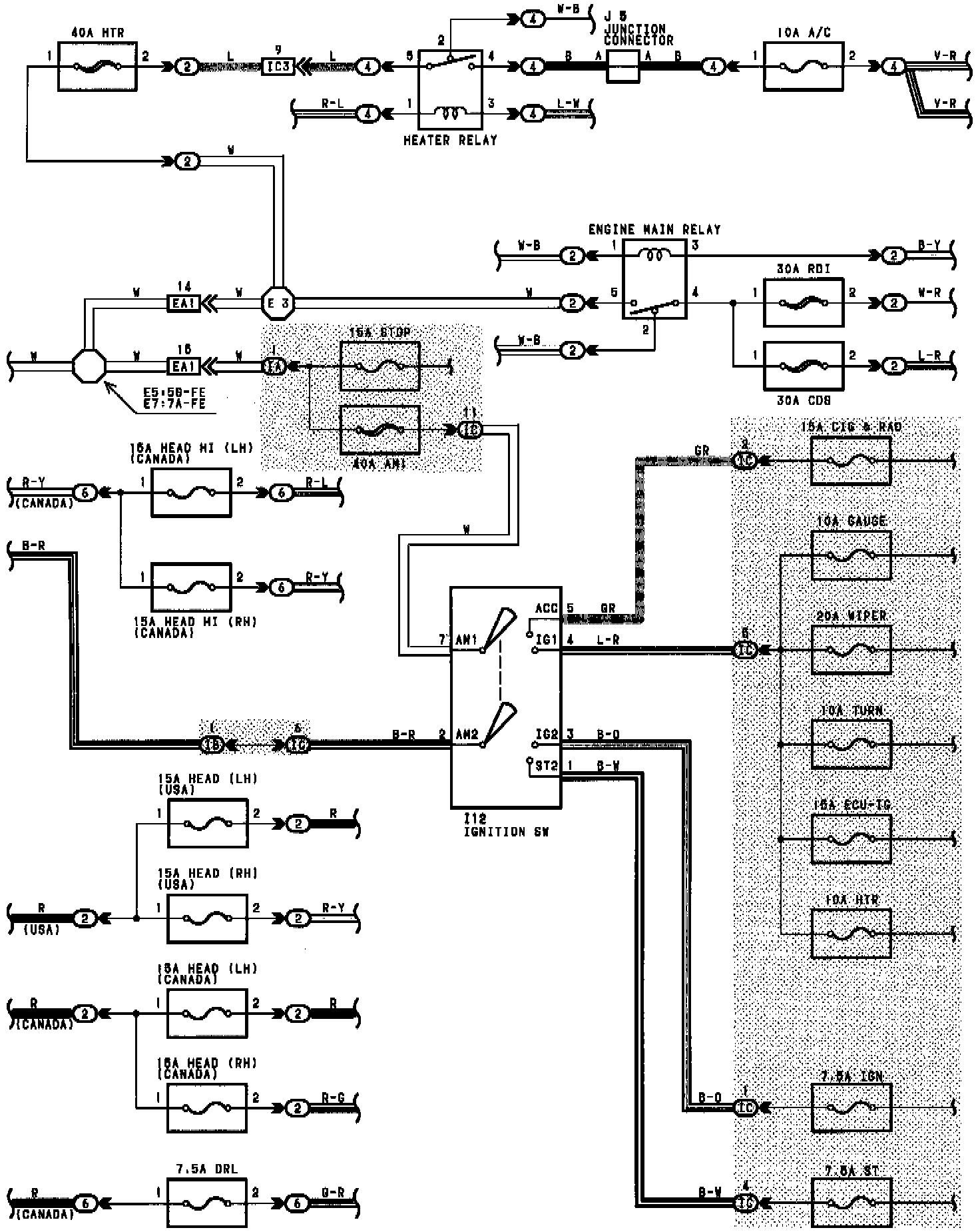

Power Source Wiring Diagram:

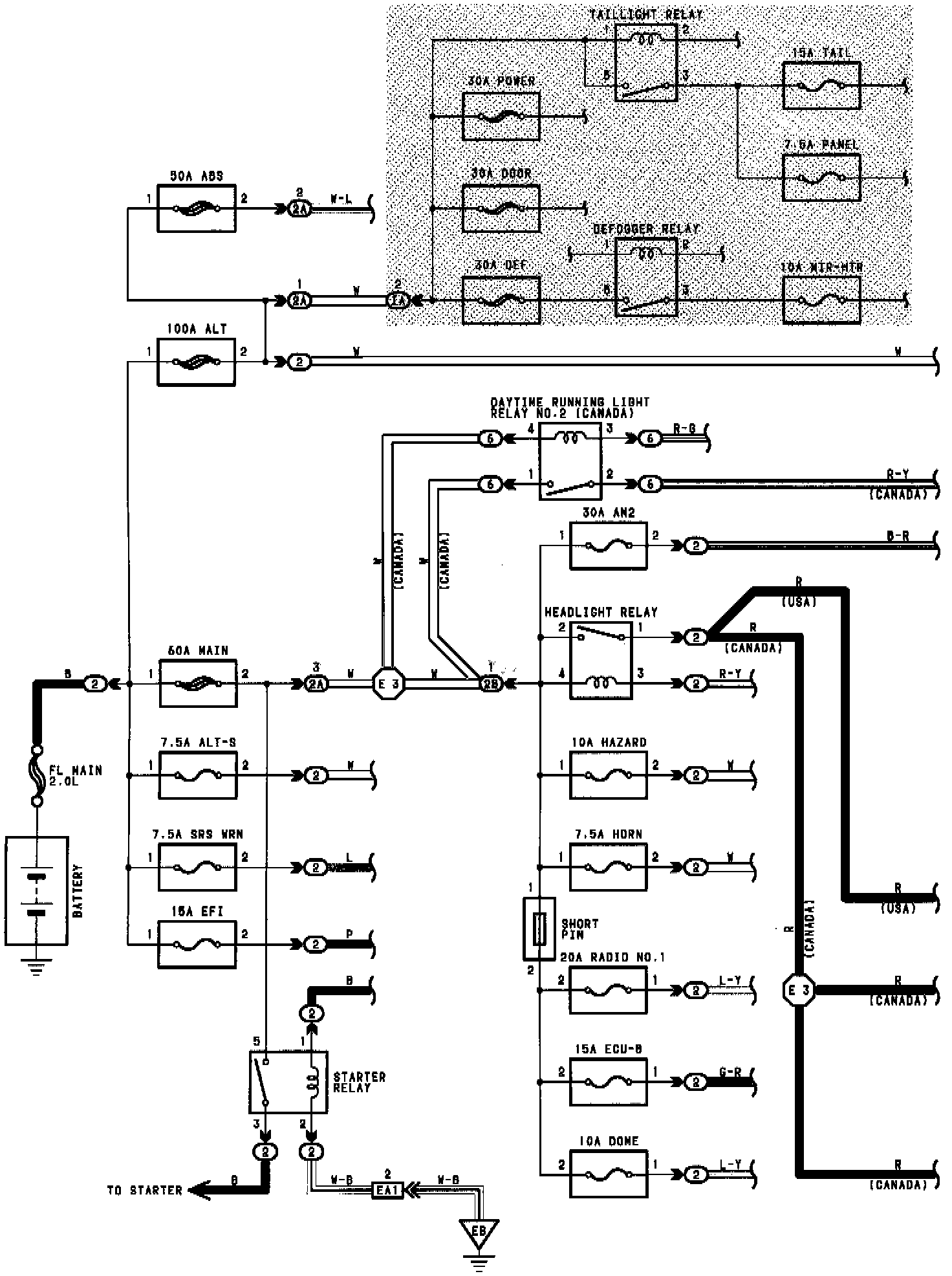

Power Source Wiring Diagram:
