Electrical Diagrams

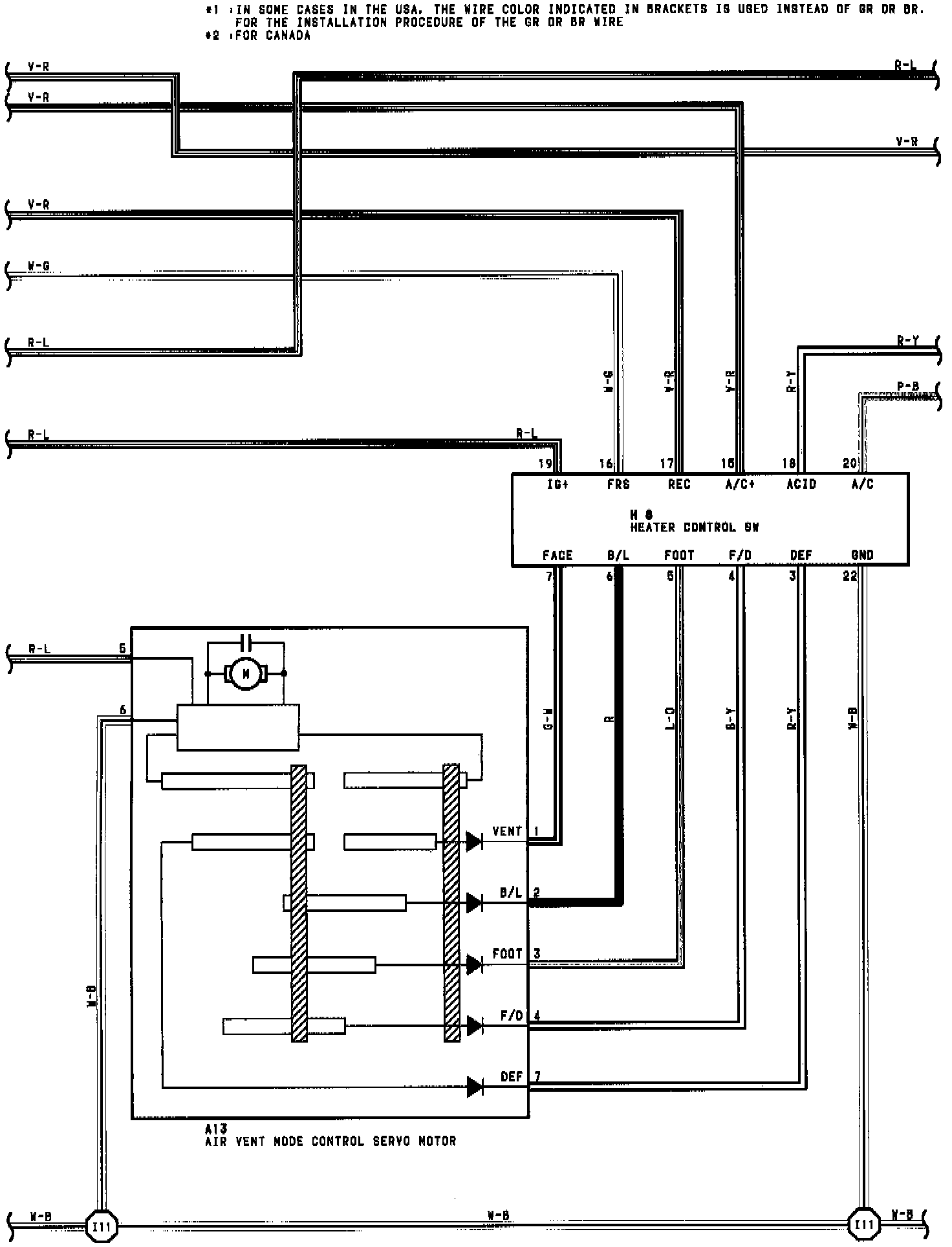

Air Conditioning Wiring Diagram:

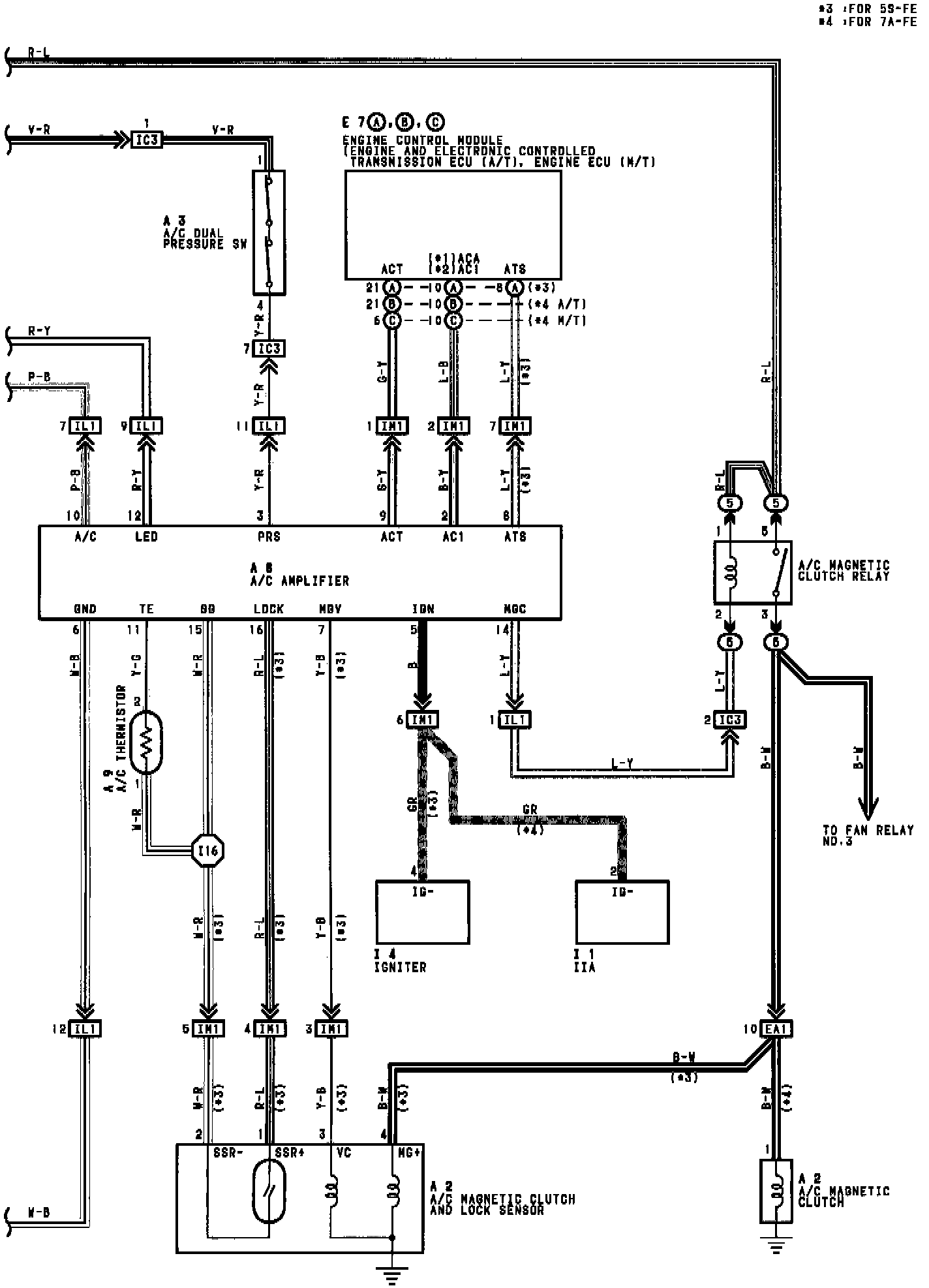

Air Conditioning Wiring Diagram:

Air Conditioning Wiring Diagram:
