Installation

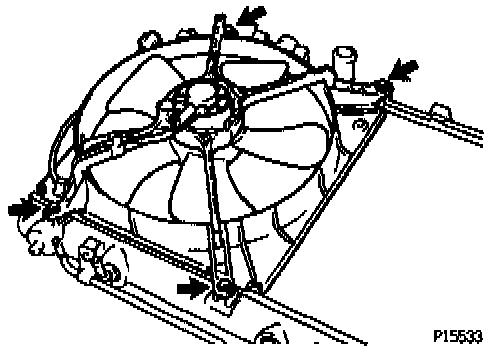

1. Install No. 1 cooling fan to radiator with the 4 bolts.

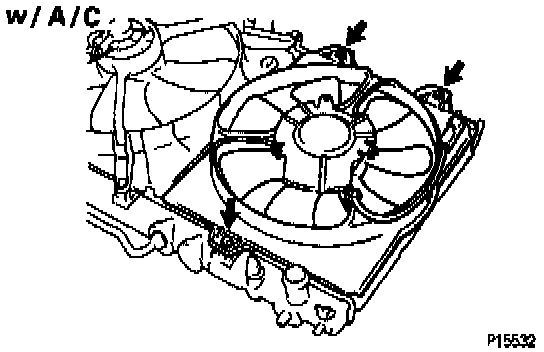

2. With A/C: Install the cooling fan to the radiator
with the 3 bolts.





3. Install radiator.

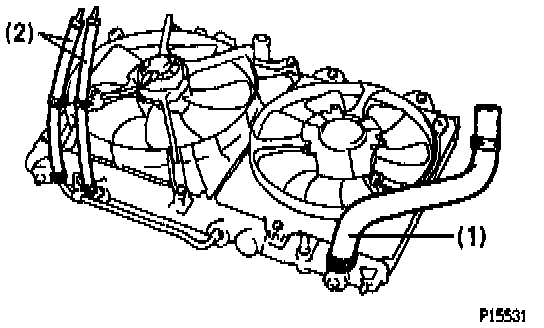

a. Install the following hoses:
1. Lower radiator hose.
2. 2 A/T oil cooler hoses.

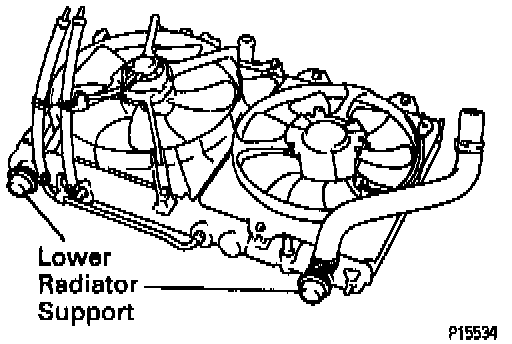

b. Install the 2 lower radiator supports to the radiator.





c. Attach the 2 lower radiator supports on the radiator to the body brackets.

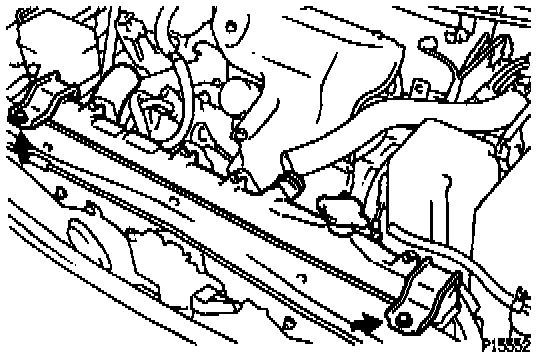

d. Install the 2 upper radiator supports with the 2 bolts.
Torque: 13 Nm (9 ft lb)

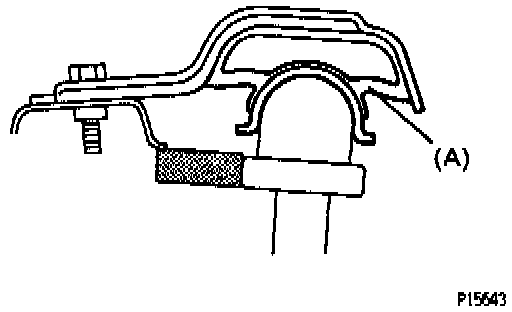

NOTE: After installation. check that the rubber cushion (A) of the support is not depressed.

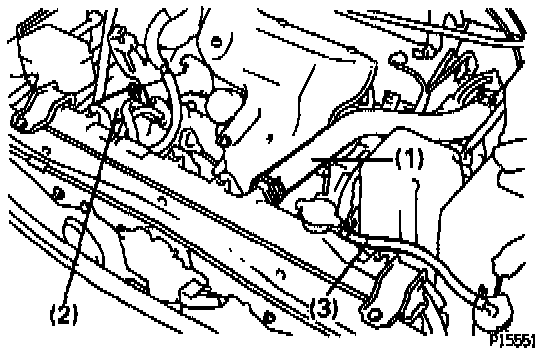

e. Connect the following hoses:
1. Upper radiator hose to radiator.
2. Lower radiator hose to water inlet.
3. Radiator reservoir hose to radiator.

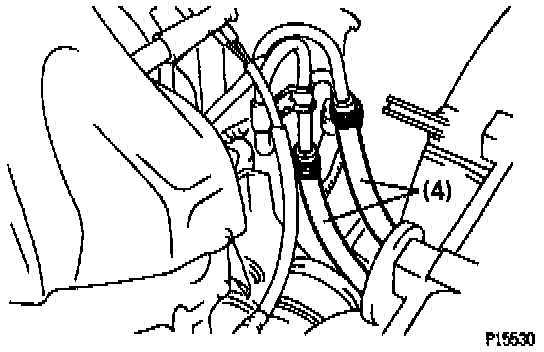

4. 2 A/T oil cooler hoses to oil cooler pipes.

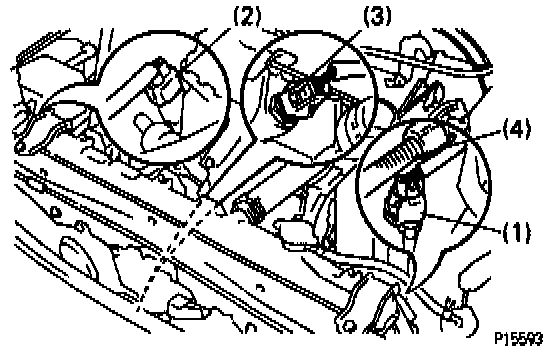

f. Connect the following connectors and wire:
1. No. 1 cooling fan connector.
2. With A/C: No. 2 cooling fan connector.
3. Engine Coolant Temperature (ECT) switch connector for electric cooling fan.
4. Wire to clamp on No. 1 cooling fan.

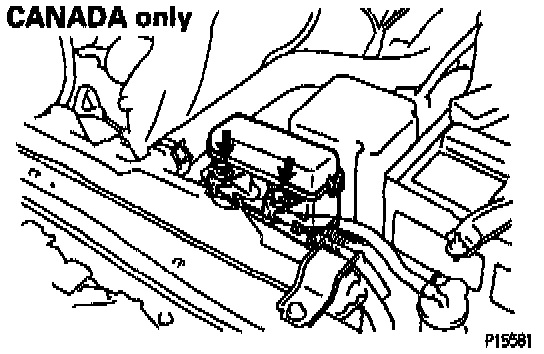

4. CANADA only: Install the relay box (for daytime running light system) with the 2 bolts.
5. Fill with engine coolant.
6. Connect negative (-) terminal cable to battery.
7. Start engine and check for coolant leaks.
