Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
Electronically Controlled Transmission (ECT) System
Electronically Controlled Transmission (ECT) System

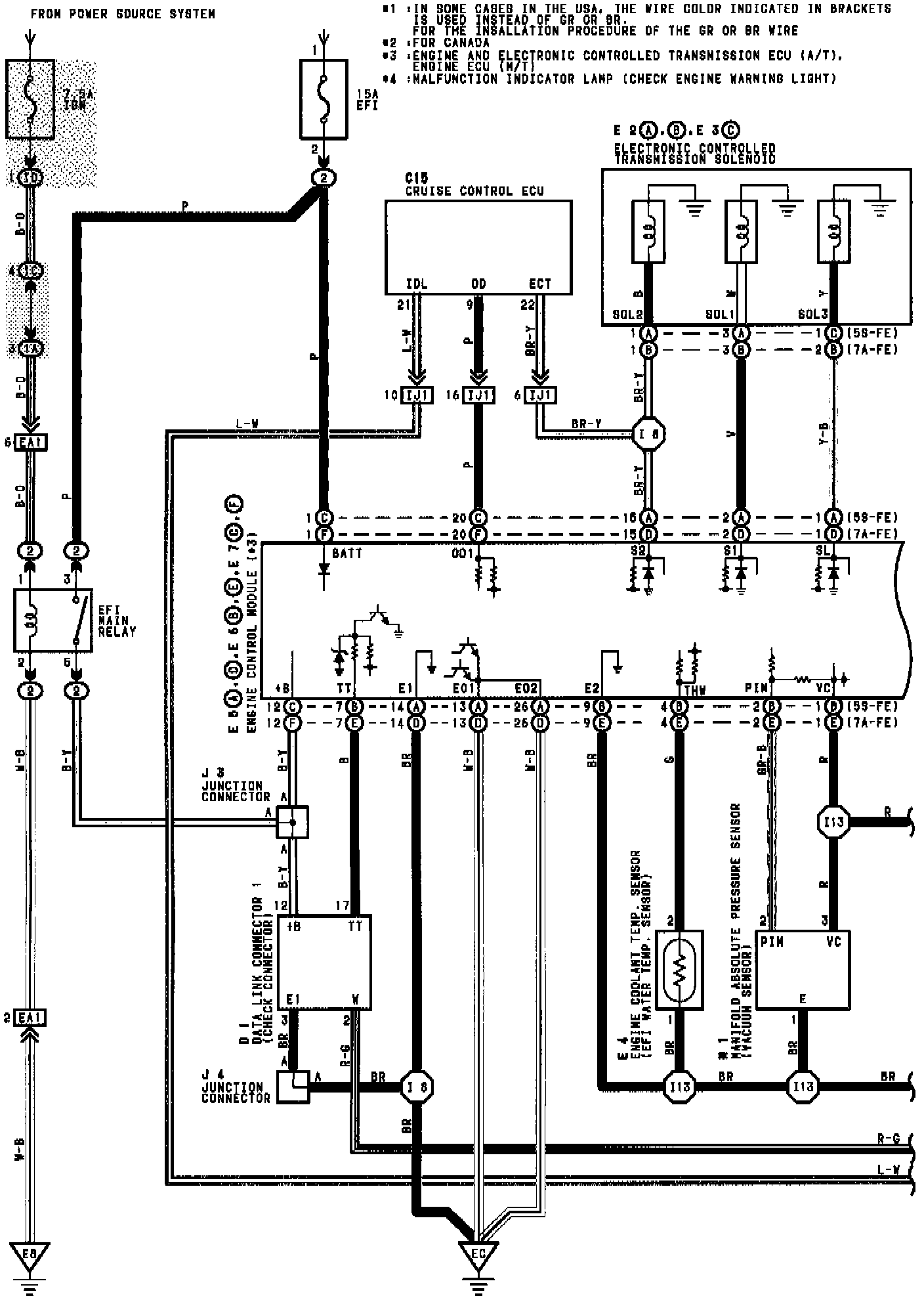

Electronic Controlled Transmission Wiring Diagram:

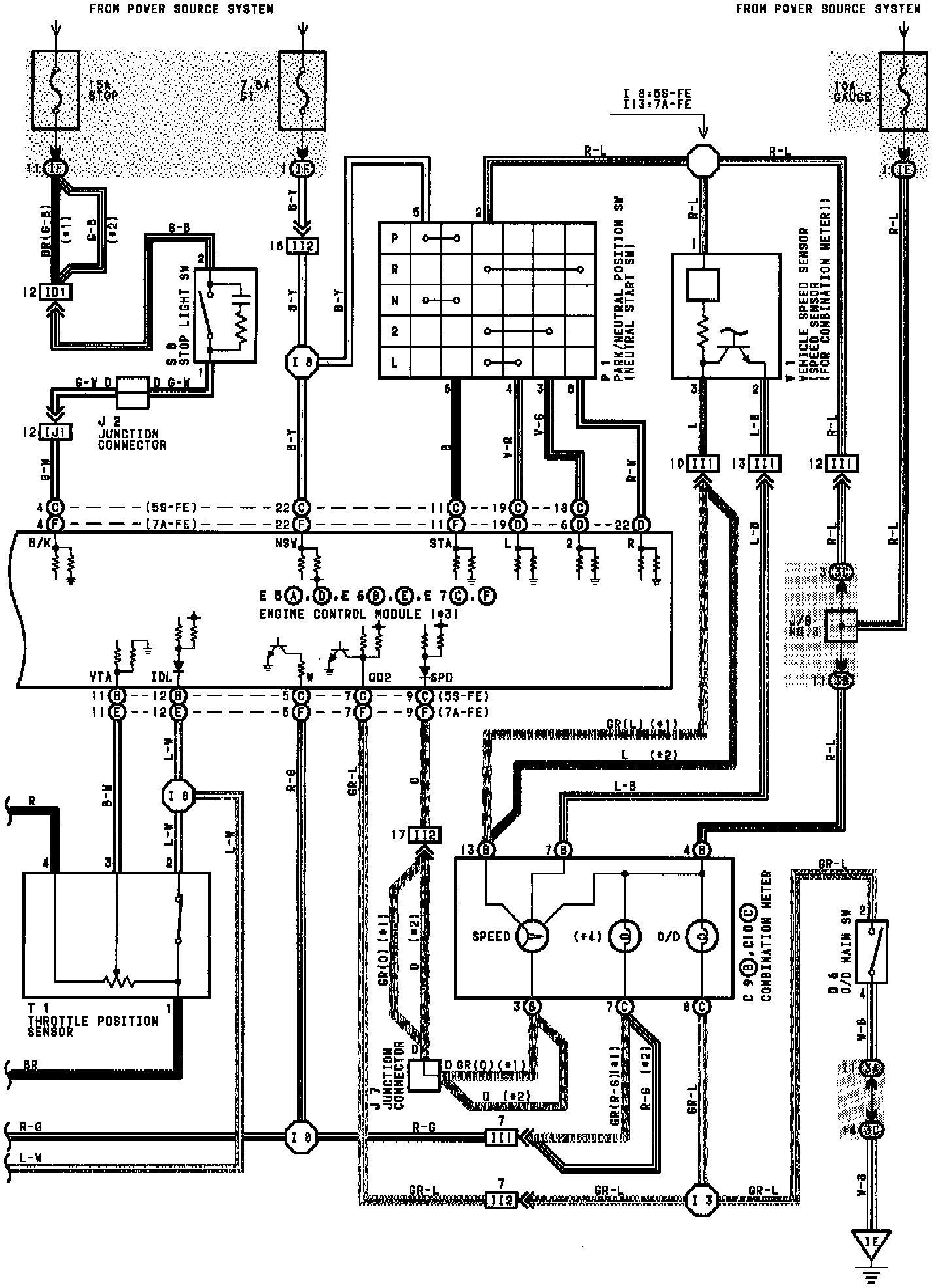

Electronic Controlled Transmission Wiring Diagram:
