System Diagram
System Diagram

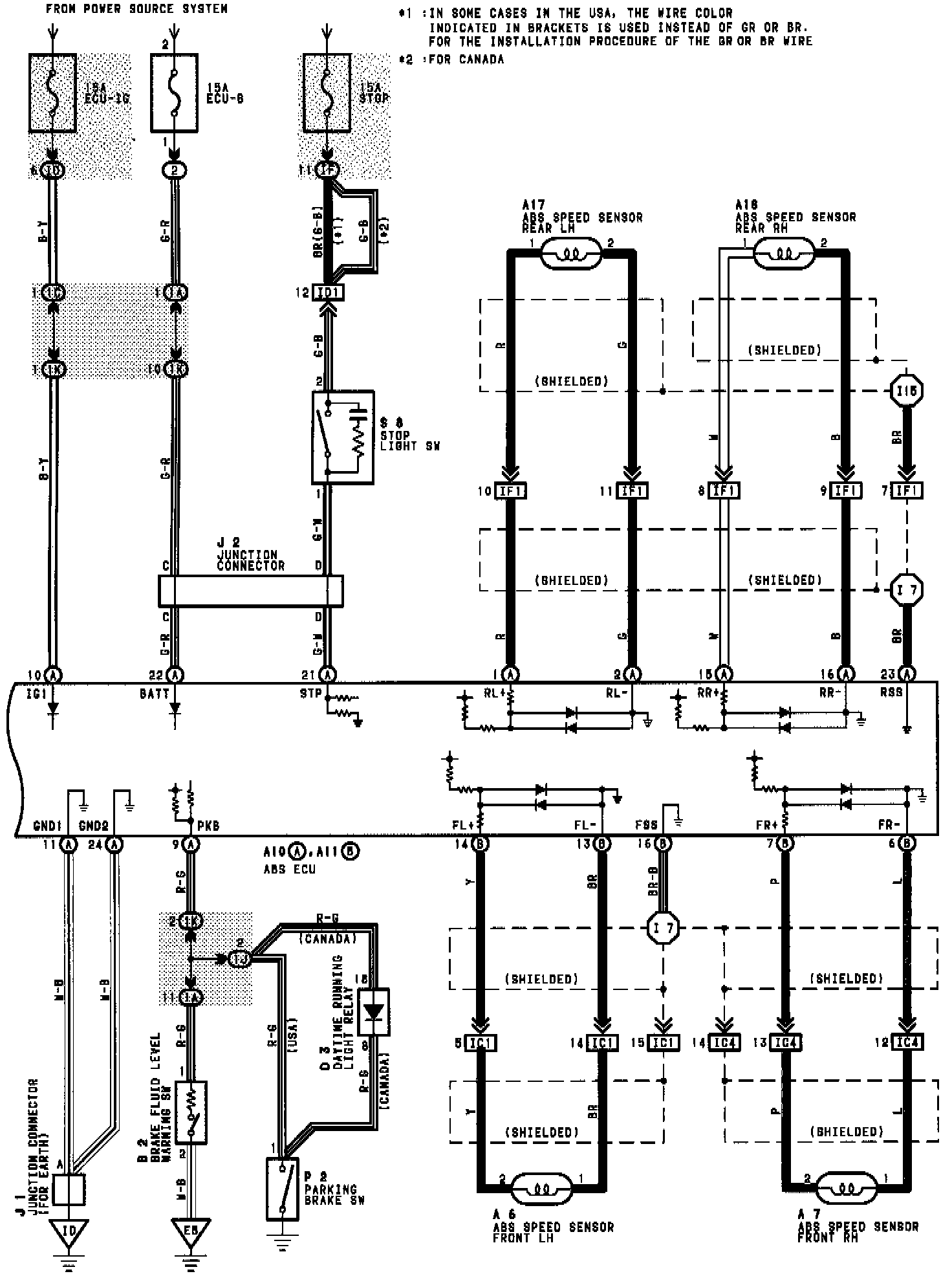

ABS (Anti-Lock Brake System) Wiring Diagram:

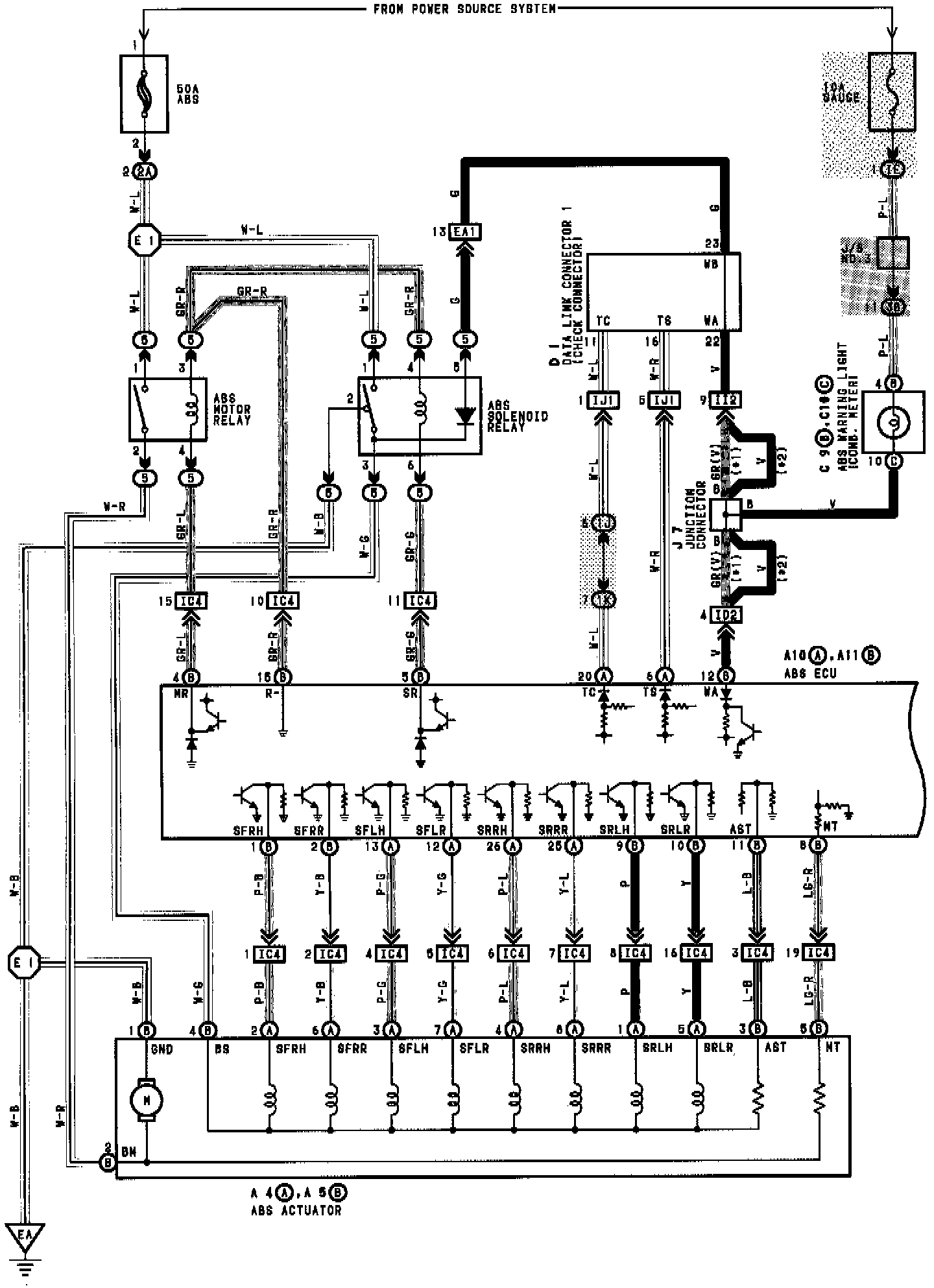

ABS (Anti-Lock Brake System) Wiring Diagram:
