Toyota
>>
1994
>>
Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>
Connector ID
Connector ID

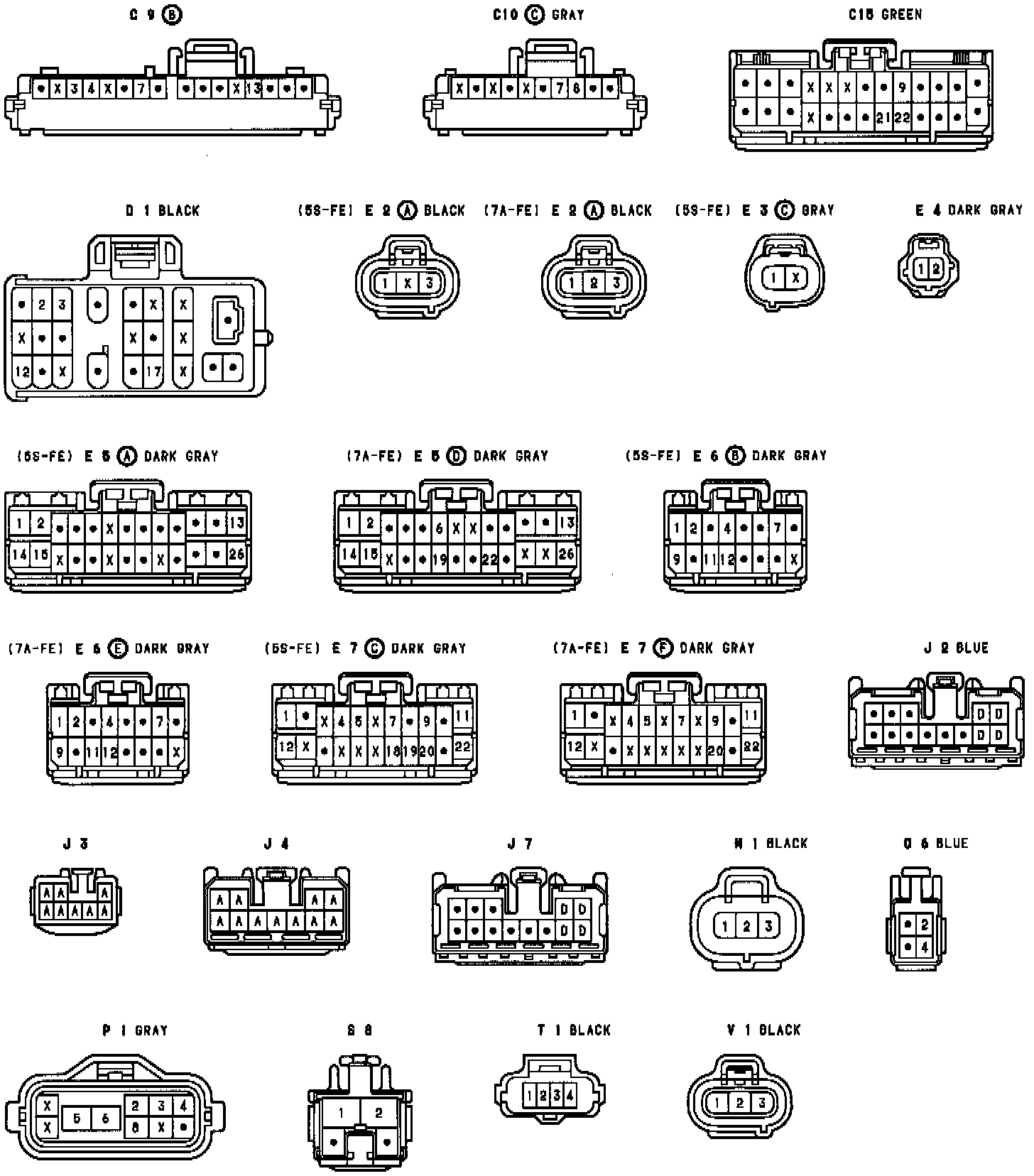

Electronic Controlled Transmission Connector Views:
