Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Systems
Air Bag Systems

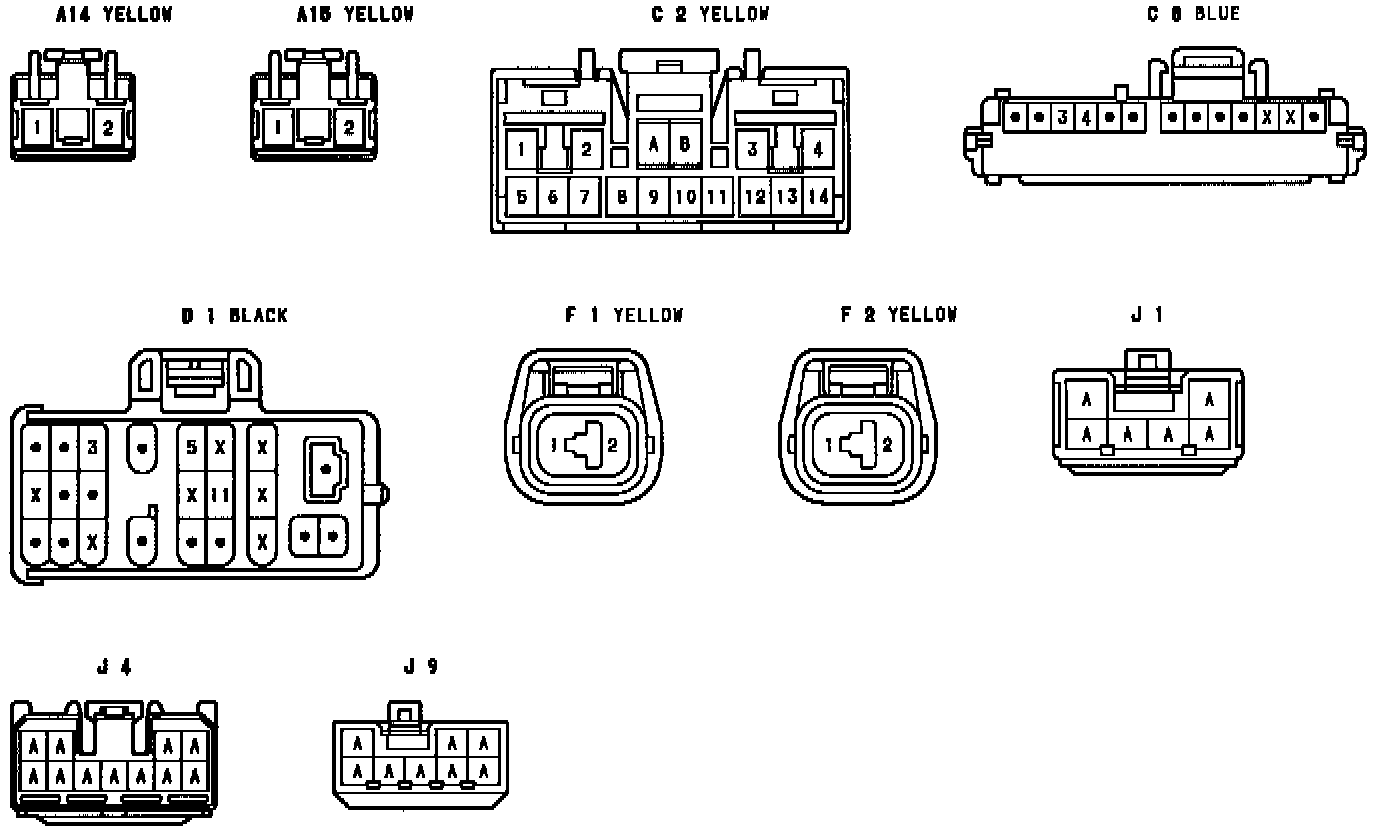

SRS (Supplemental Restraint System) Connector Views:
