Symptom Related Diagnostic Procedures

DIAGNOSIS BY SYMPTOMS

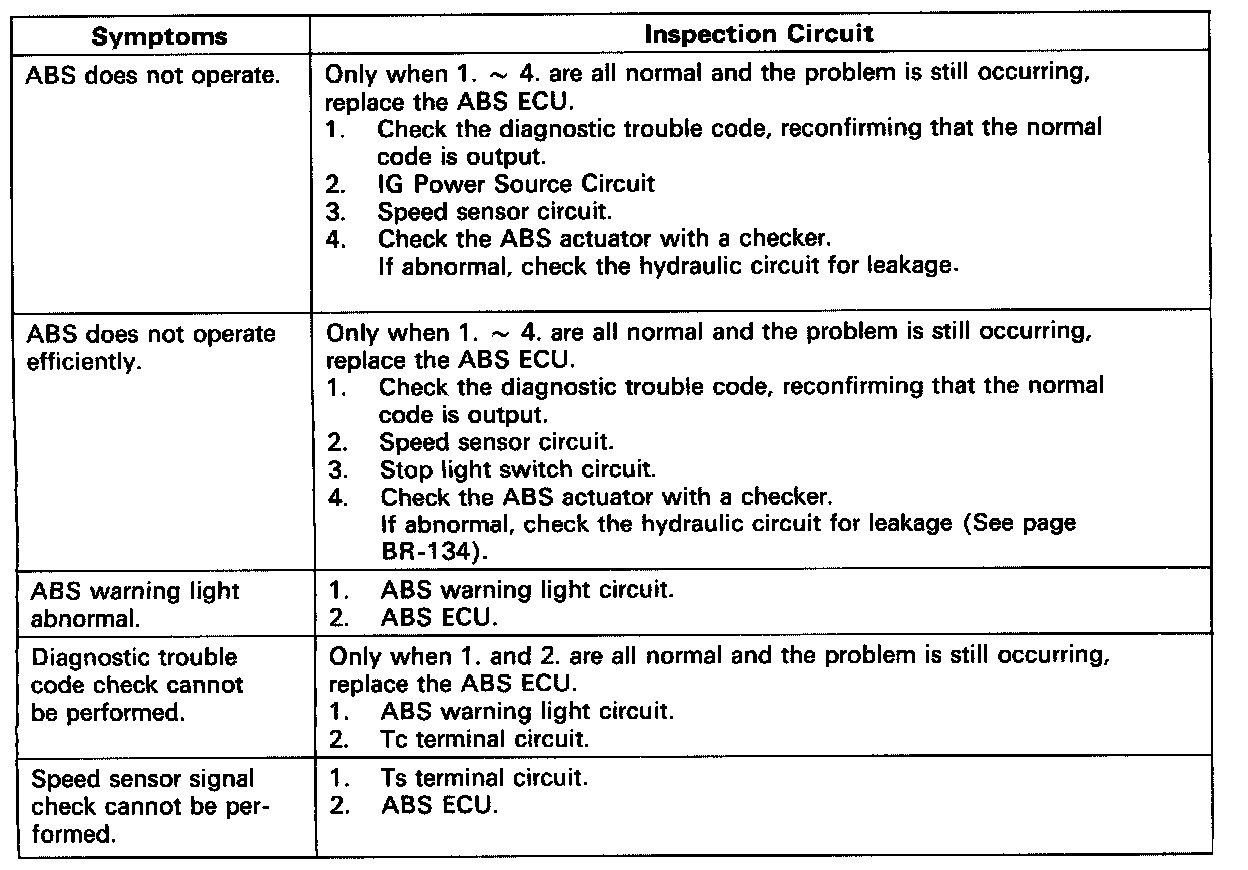

Problem Symptoms Chart:

If a normal code is displayed during the diagnostic trouble code check but the problem still occurs, check the circuits for each problem symptom in the order given in the table below and proceed to the relevant page for troubleshooting.
