Tc Terminal Circuit

Tc Terminal Circuit

CIRCUIT DESCRIPTION
Connecting terminals Tc and E1 of the DLC1 causes the ECU to display the diagnostic trouble code by flashing the ABS warning light.

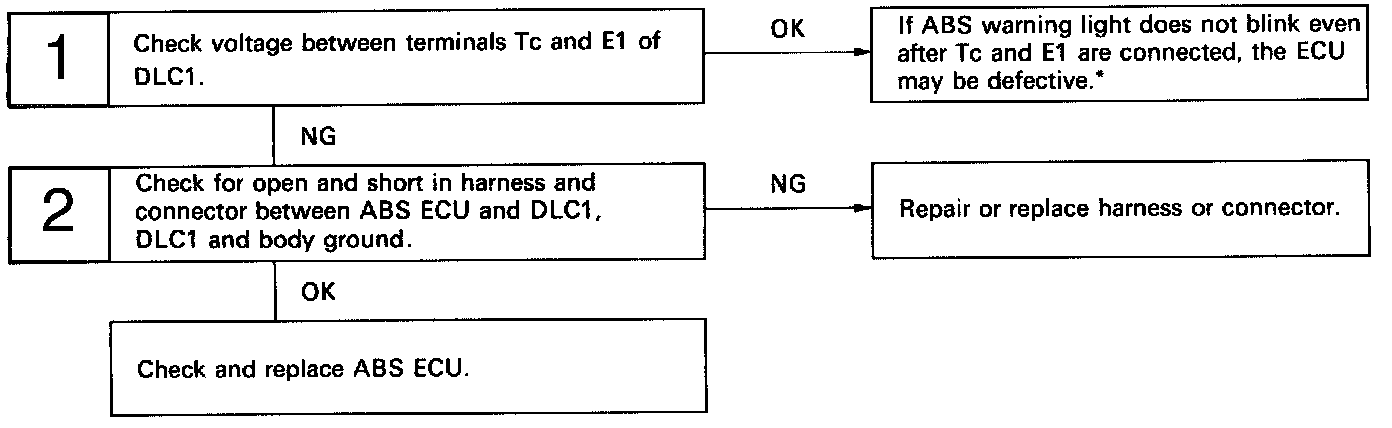

Diagnostic Chart:

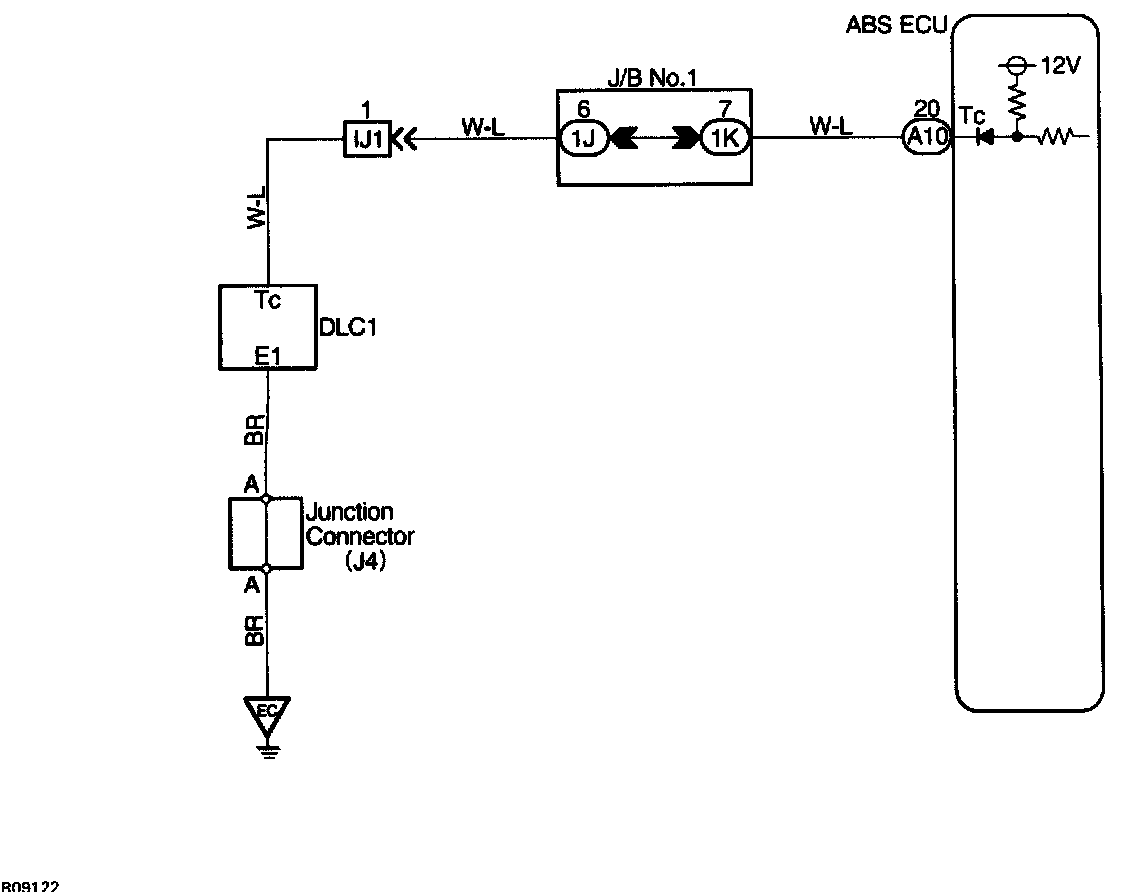

Wiring Diagram:






INSPECTION PROCEDURE

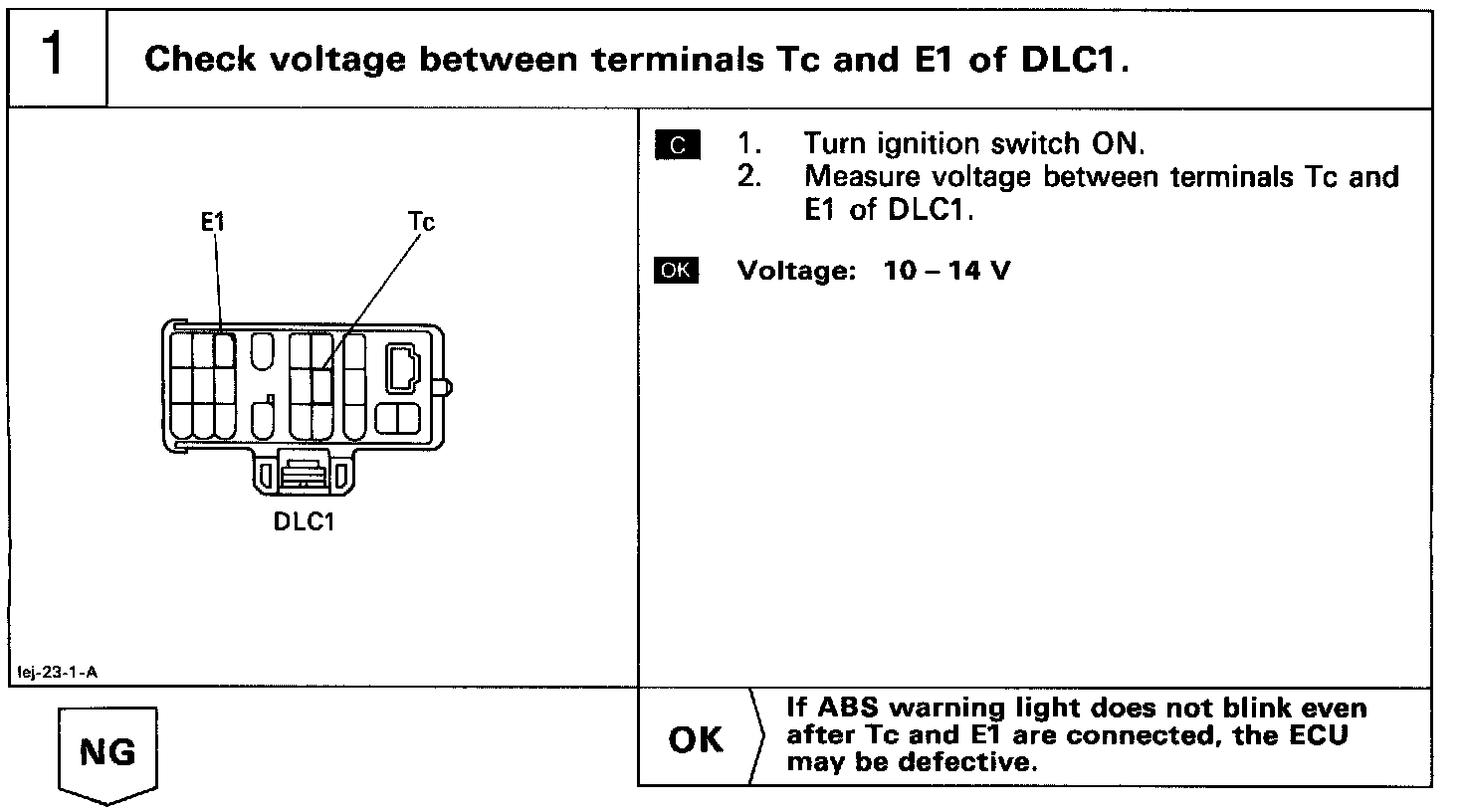

Step 1:

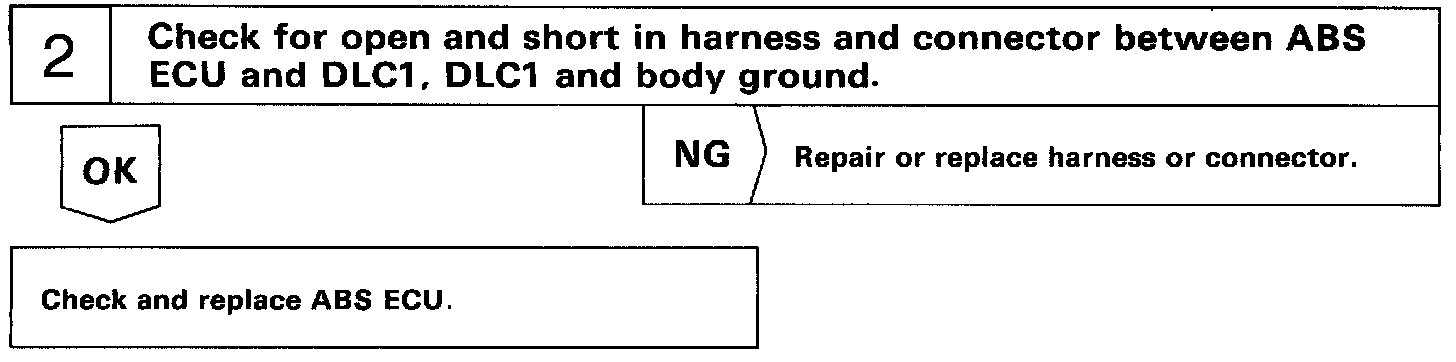

Step 2:
