ABS Diagnosis System

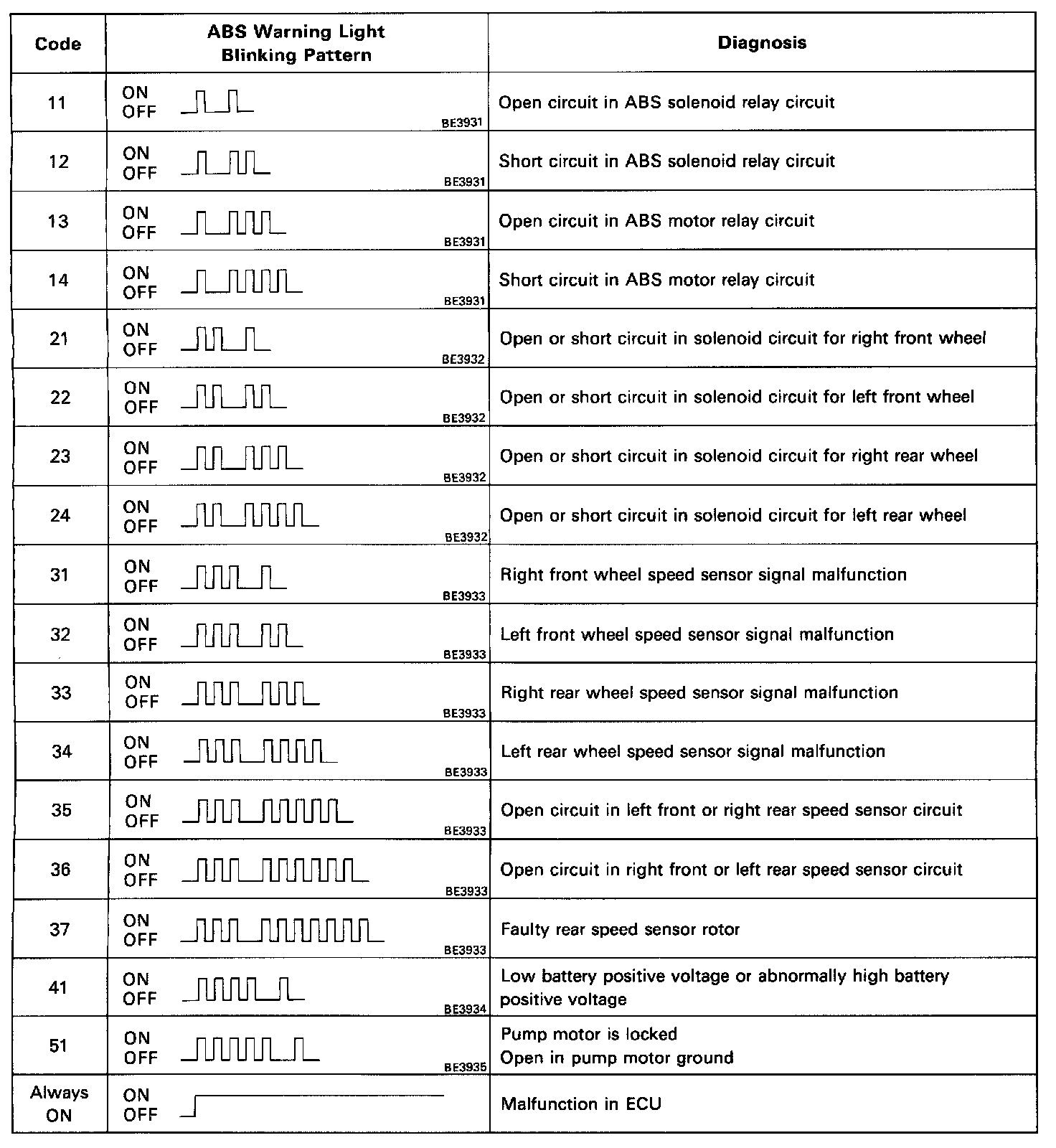

DIAGNOSTIC TROUBLE CODE CHART






If a malfunction code is displayed during the diagnostic trouble code check, check the circuit listed for that code.

HINT: Using SST 09843-18020, connect the terminals Tc and E1, and remove the short pin.
