Wiper Switch: Testing and Inspection

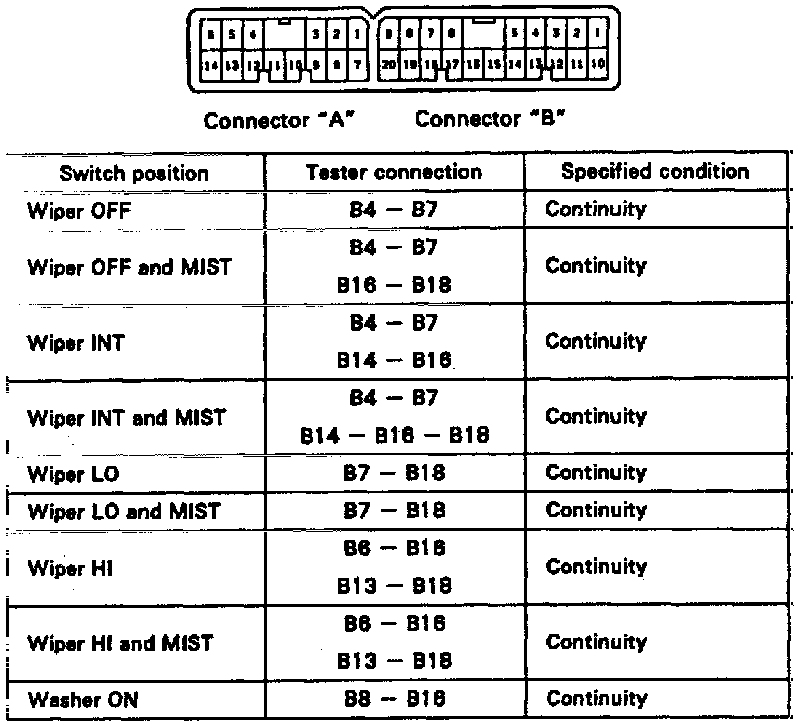

Fig. 2 Front Wiper & Washer Switch Inspection.:

1. Using suitable ohmmeter, inspect continuity between terminals, Fig. 2.
2. If continuity is not as indicated, replace switch.
