A/T - Improved Torque Converter Operation At Decel/Stop: Overview

REF.: TRANSMISSION & CLUTCH

NO.: TC94-006

DATE: NOVEMBER 4, 1994

MODEL: VK

A540E ATM SECONDARY REGULATOR MODIFICATION





To improve torque converter lock-up characteristics during deceleration or coming to a stop, the following change has been made:

Component: Modified

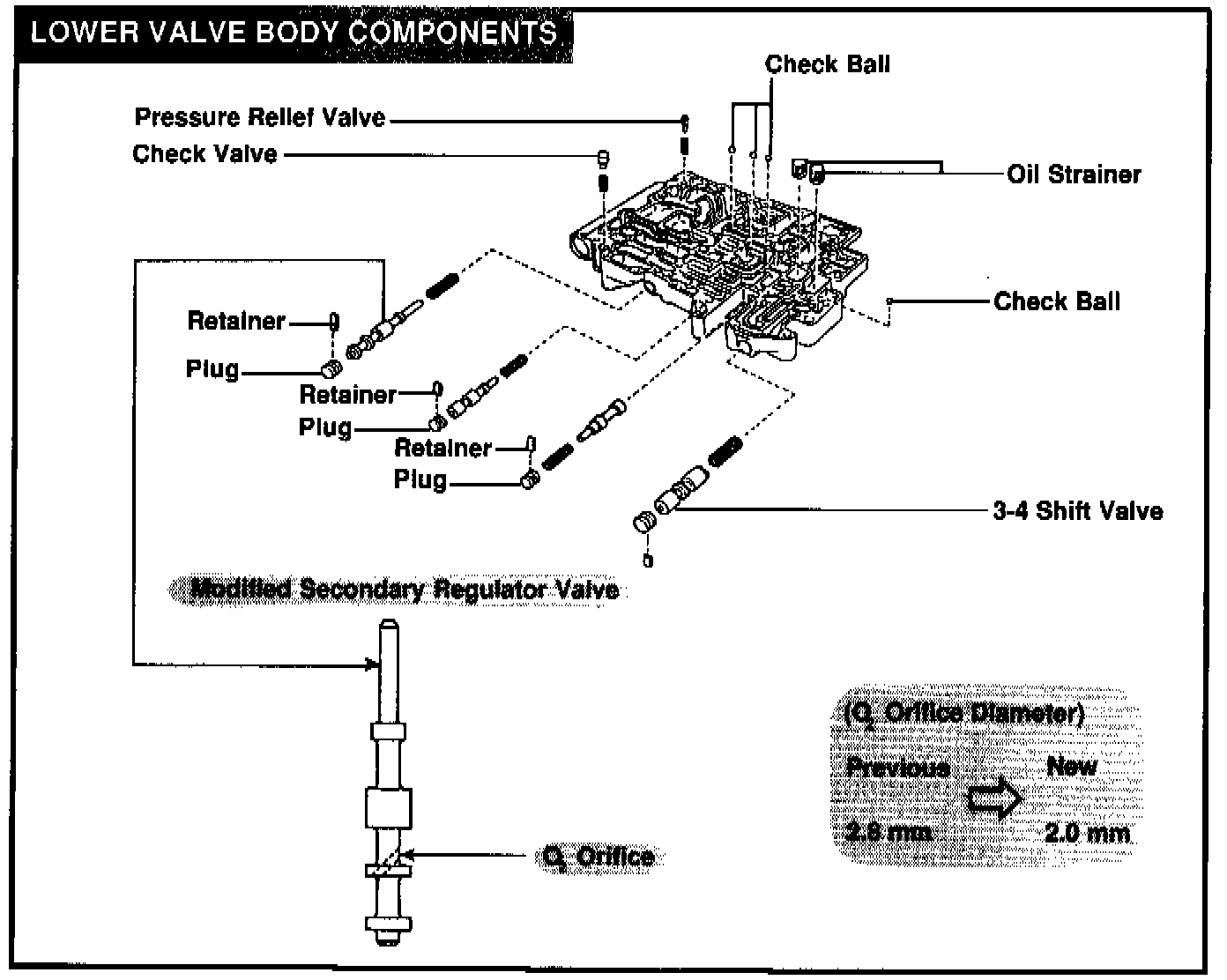

Secondary Regulator Valve Internal orifice diameter reduced from
2.8 mm to 2.0 mm

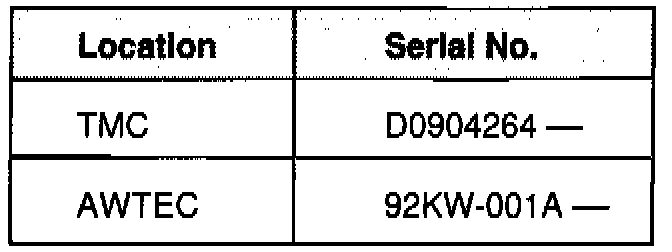

PRODUCTION EFFECTIVE:





A540E Transaxles built/remanufactured from October, 1993.





PART CHANGE INFORMATION:

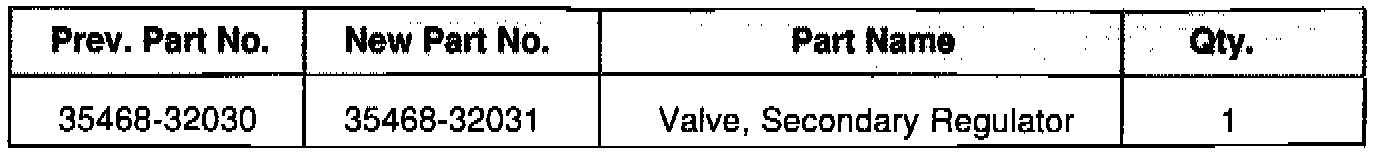

PART NUMBER INFORMATION:

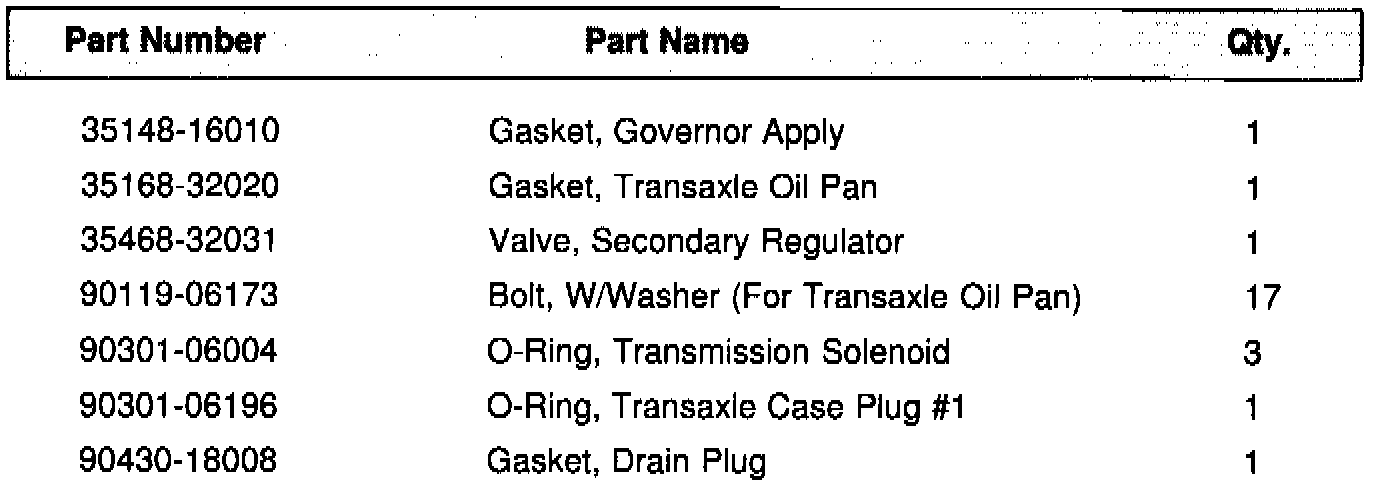

To repair affected transaxles, the secondary regulator valve is available as a kit (P/N 04354-32010) which includes the parts:

After removing valve body from the transmission, use the following procedure to install the modified secondary regulator valve.
