Installation

PROCEDURE




1. Install fuel pump bracket assembly to fuel tank.
^ Install a new gasket to the pump bracket.

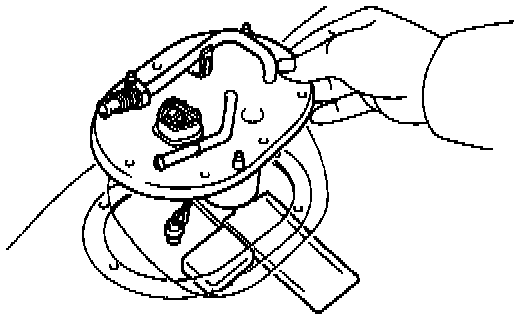

^ Insert the pump bracket assembly into the fuel tank.

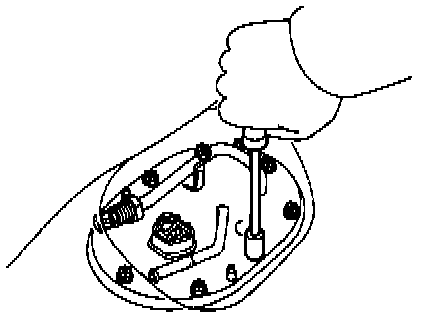

^ Install the pump bracket with the 8 screws.

Torque: 4.0 Nm (35 in lb)





2. Connect fuel pipe and hose to fuel pump bracket.

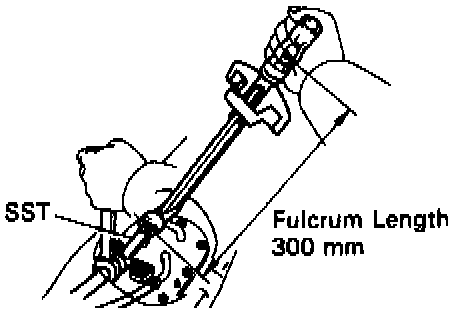

^ Using appropriate tools, connect the outlet pipe to the pump bracket (SST 09631-22020).

Torque: 28 Nm (21 ft lb)

^ Connect the return hoses to the pump bracket.
3. Connect fuel pump lead wire.
4. Connect negative (-) terminal cable to battery and check for fuel leakage.





5. Install floor service hole cover.
^ Install the service hole cover with the 5 screws.
^ Connect the fuel pump / sender gauge connector.
6. Install rear seat cushion.
