Assembly

PROCEDURE

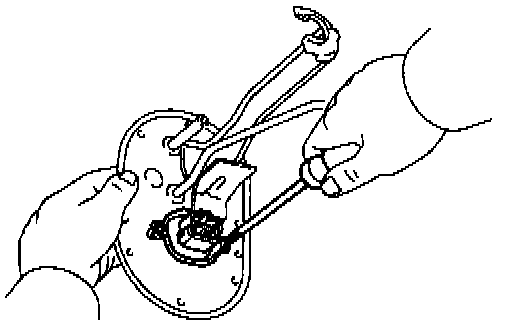

1. Install connector.
^ Install the gasket. connector and connector support with the 2 screws.
2. Install fuel pump filter to fuel pump.
^ Install the pump filter with a new clip.

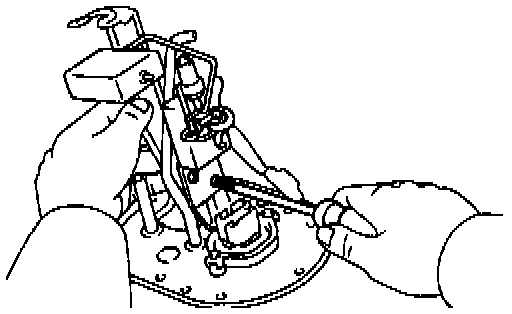

3. Install fuel sender gauge to fuel pump bracket.
^ Install the sender gauge with the 2 screws.
^ Connect the fuel sender gauge connector.

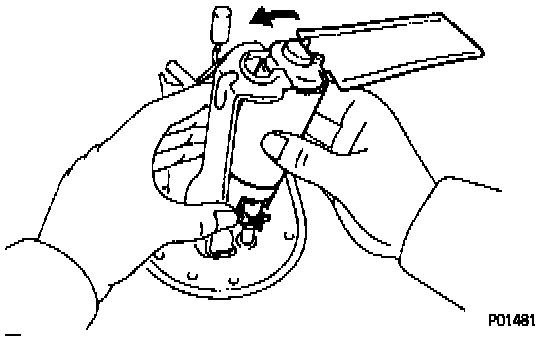

4. Install fuel pump to fuel pump bracket.
^ Install the rubber cushion to the fuel pump.
^ Connect the fuel hose to the outlet port of the fuel pump.
^ Install the fuel pump by pushing the lower side of the fuel pump.
^ Install the fuel pump connector.
