Installation

PROCEDURE

Installation

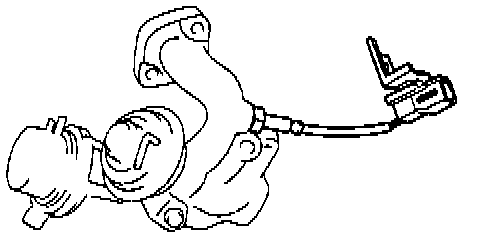

1. Reinstall Exhaust Gas Recirculation (EGR) Gas Temperature Sensor.

Torque: 20 Nm (14 ft lb).





2. Reinstall EGR Valve and Vacuum Modulator assembly with the 3 nuts.

Torque: 12 Nm (9 ft lb).





^ Reconnect the following hoses:
Vacuum hose from port P of EGR Vacuum Modulator. (1)
Vacuum hose from port Q of EGR Vacuum Modulator. (2)
Vacuum hose from port R of EGR Vacuum Modulator. (3)
Vacuum hose from EGR Valve. (4)

3. Reconnect the EGR Gas Temperature Sensor connector.
4. Reconnect the negative (-) terminal of the battery.
