Control Module HVAC: Testing and Inspection

INSPECTION

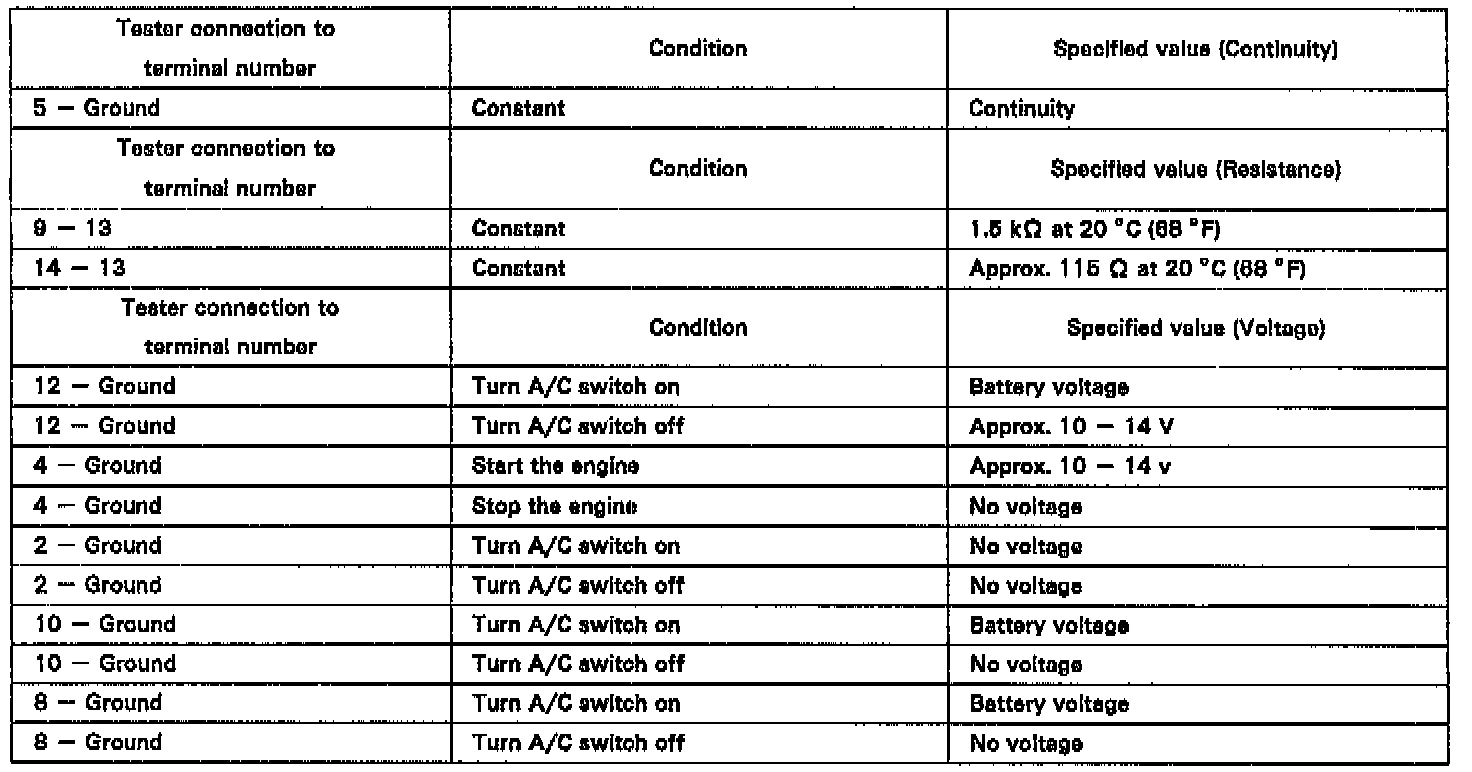

Disconnect the amplifier and inspect the connector on the wire harness side, as shown in the chart.

Test conditions

- Ignition switch : ON

- Temperature control dial: MAX COOL

- Blower dial : HI

If circuit is not as specified, replace the amplifier.
