Blower Motor: Testing and Inspection

INSPECT BLOWER MOTOR OPERATION

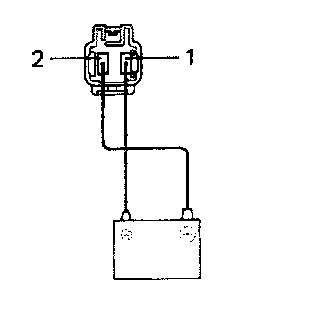

Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, then check that the motor operation is smooth.
