System Diagram
System Diagram

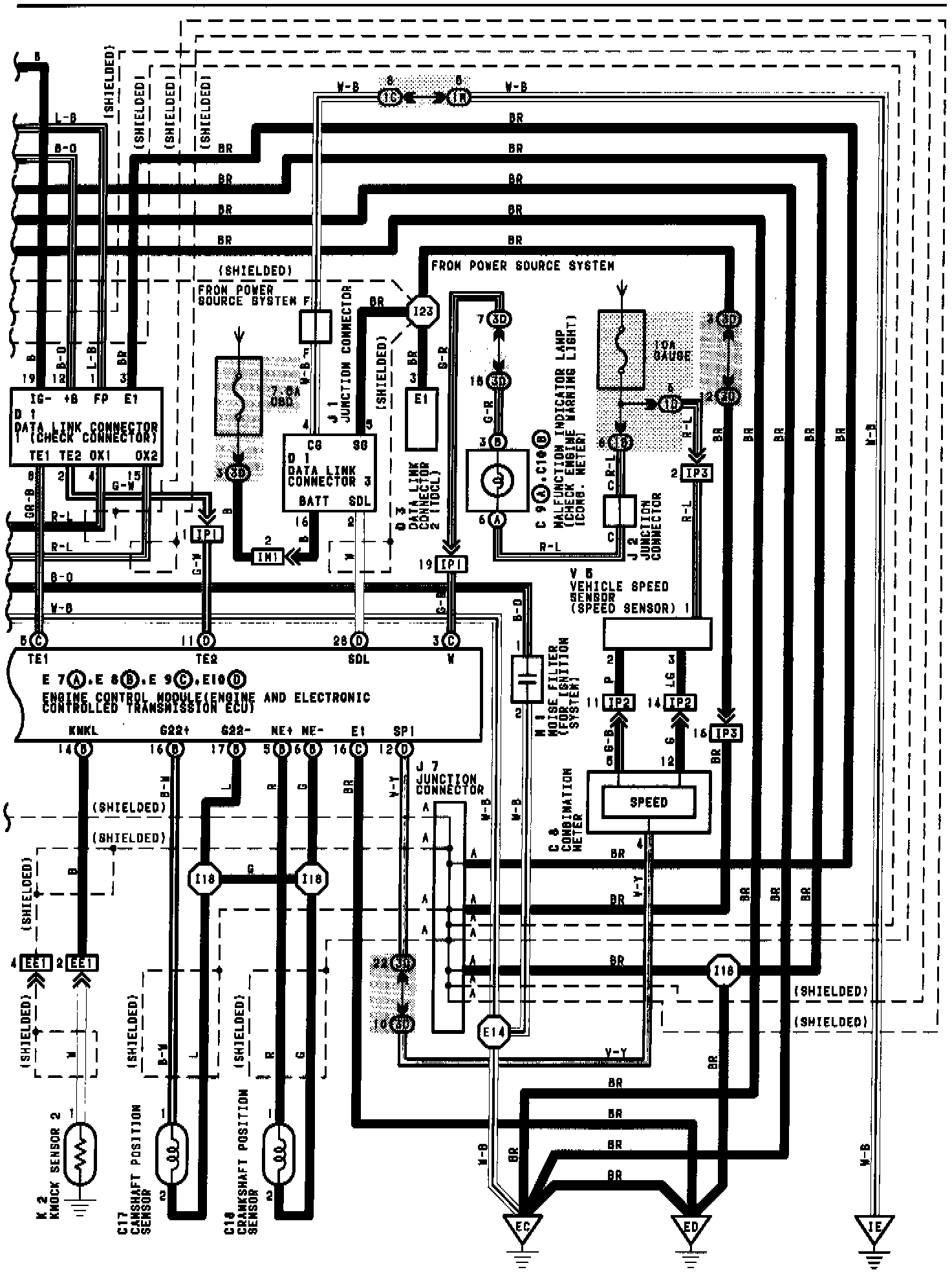

Engine Control - Part 1 Of 4:

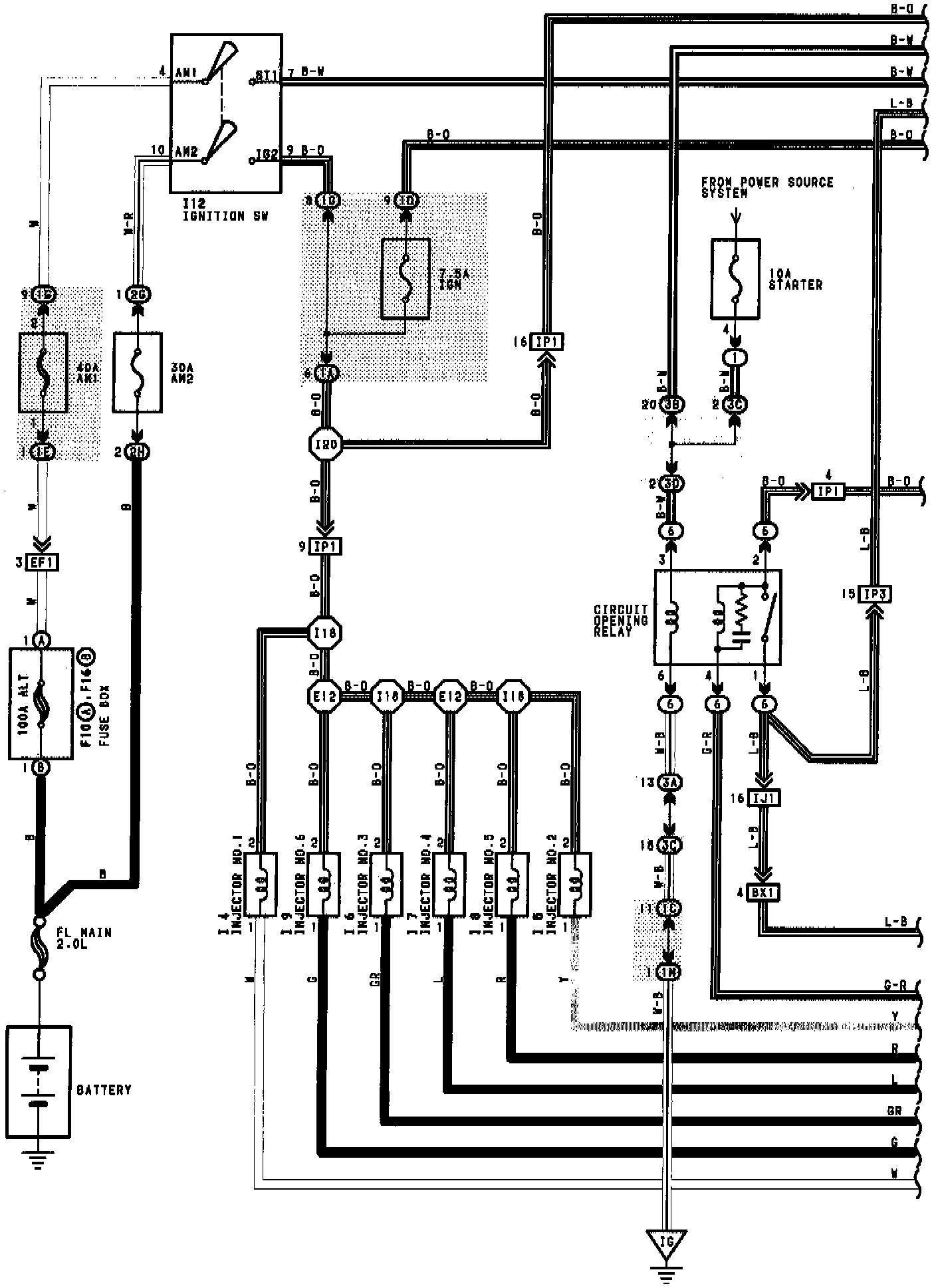

Engine Control - Part 2 Of 4:

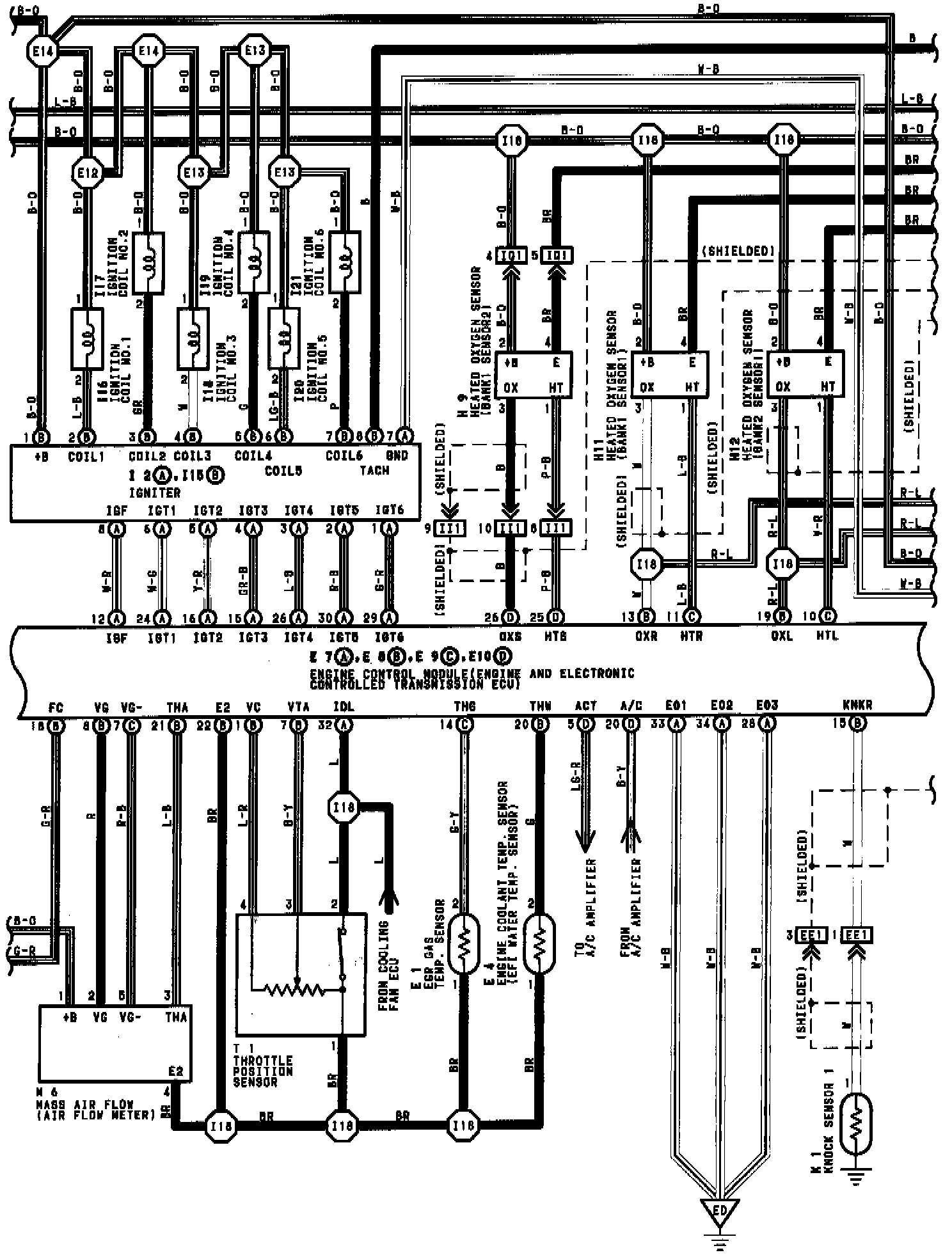

Engine Control - Part 3 Of 4:

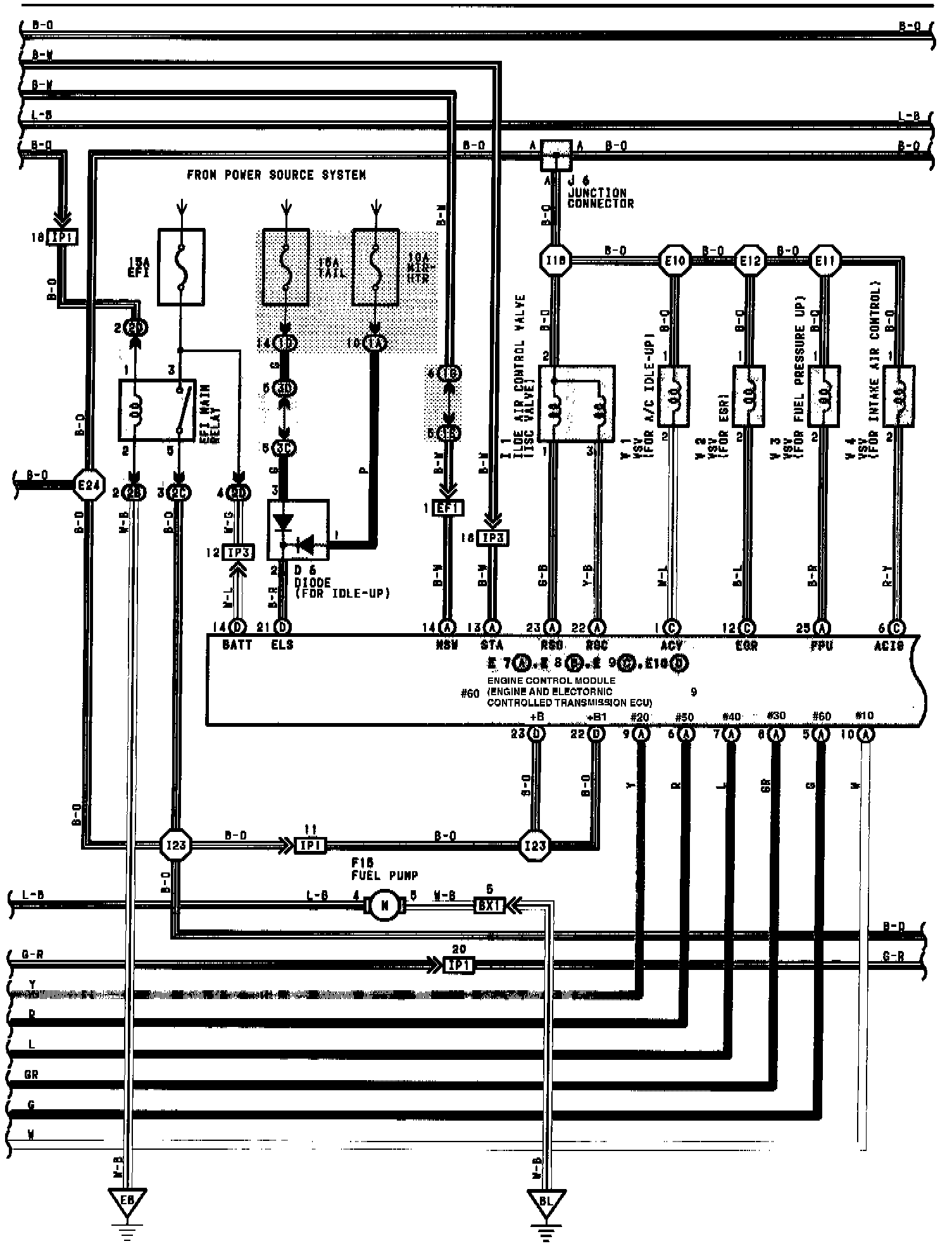

Engine Control - Part 4 Of 4:
