Back Door Lock Control (Without Power Window)
Back Door Lock Control (Without Power Window)

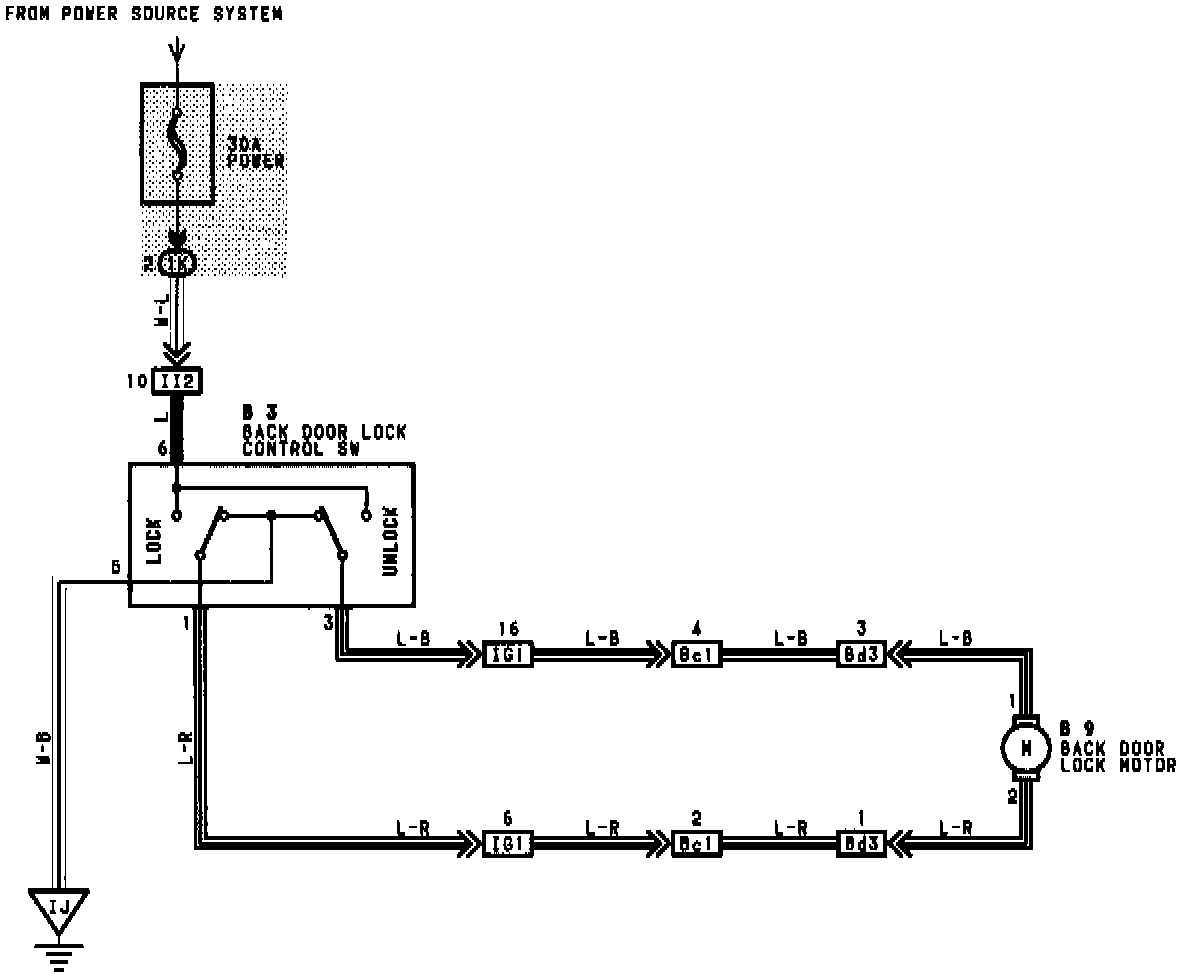

Back Door Lock w/o Power Window Wiring Diagram:
