Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1994
>>
Camry Wagon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
>>

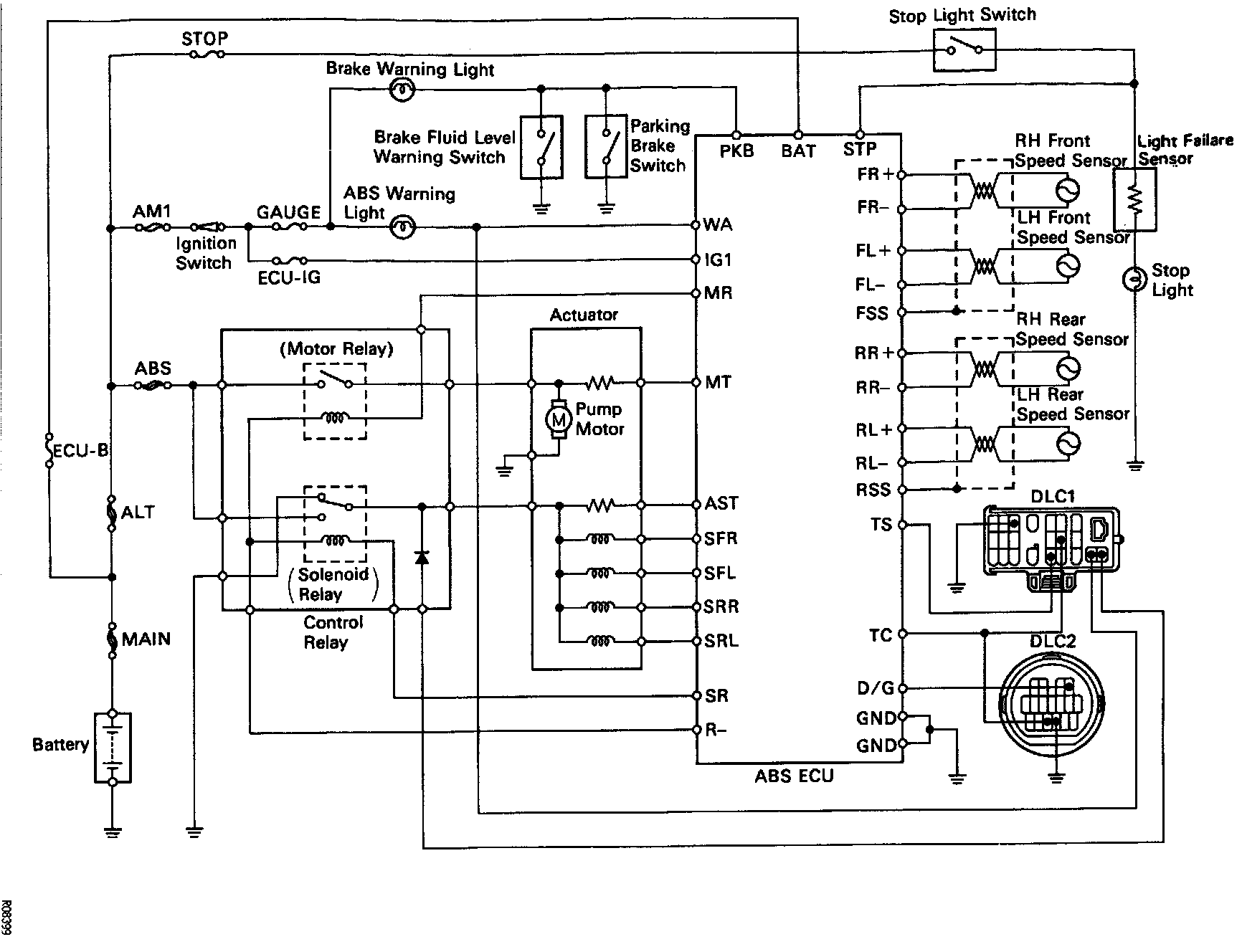

Wiring Schematic
Wiring Schematic
TMC Made Vehicle/NIPPONDENSO ABS:
TMC MADE VEHICLES/NIPPONDENSO
TMM Made Vehicle/BOSCH ABS:
TMM MADE VEHICLES/BOSCH ABS
