Camry Wagon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
ABS Light
ABS Light

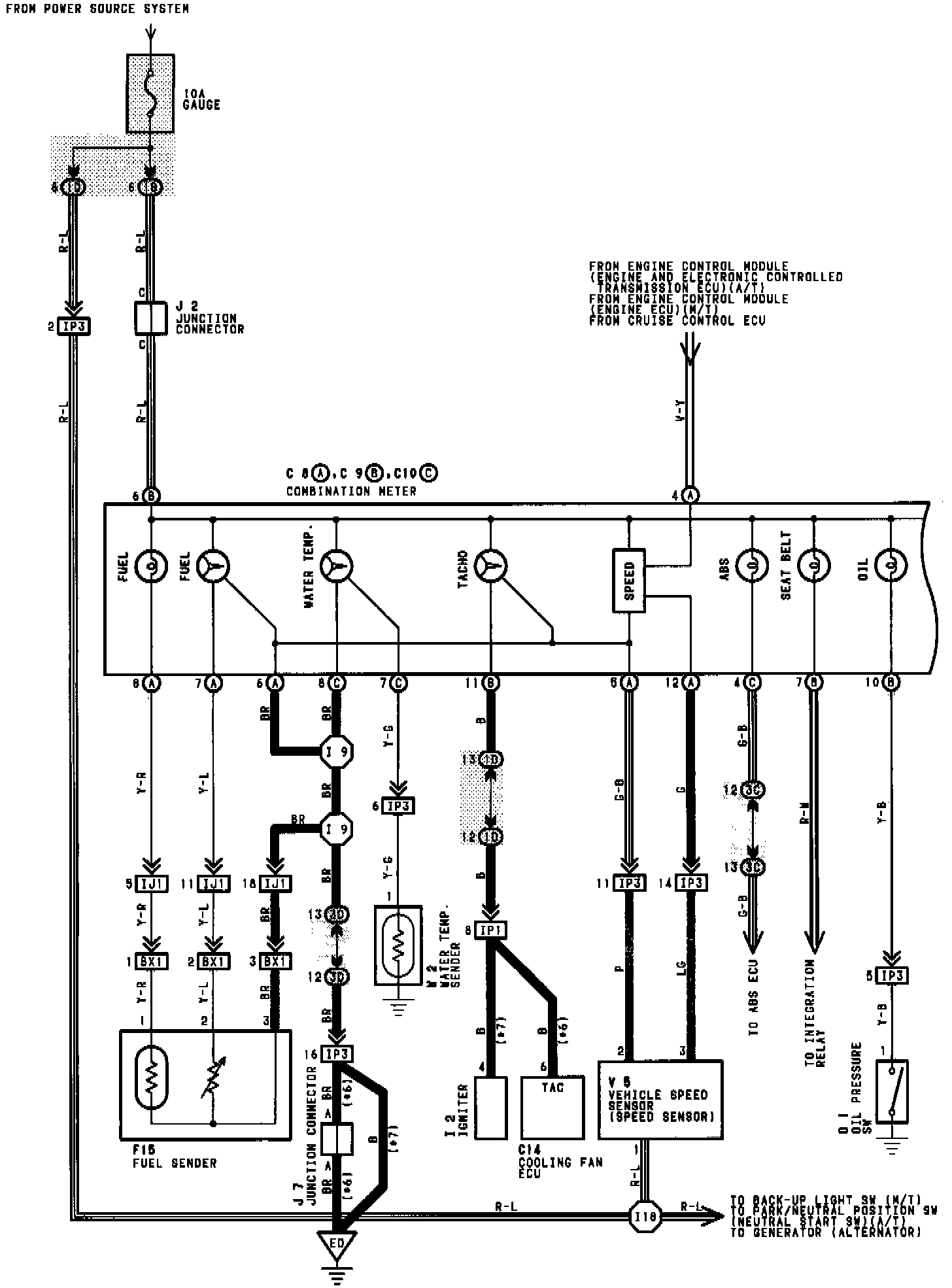

Combination Meter Wiring Diagram:

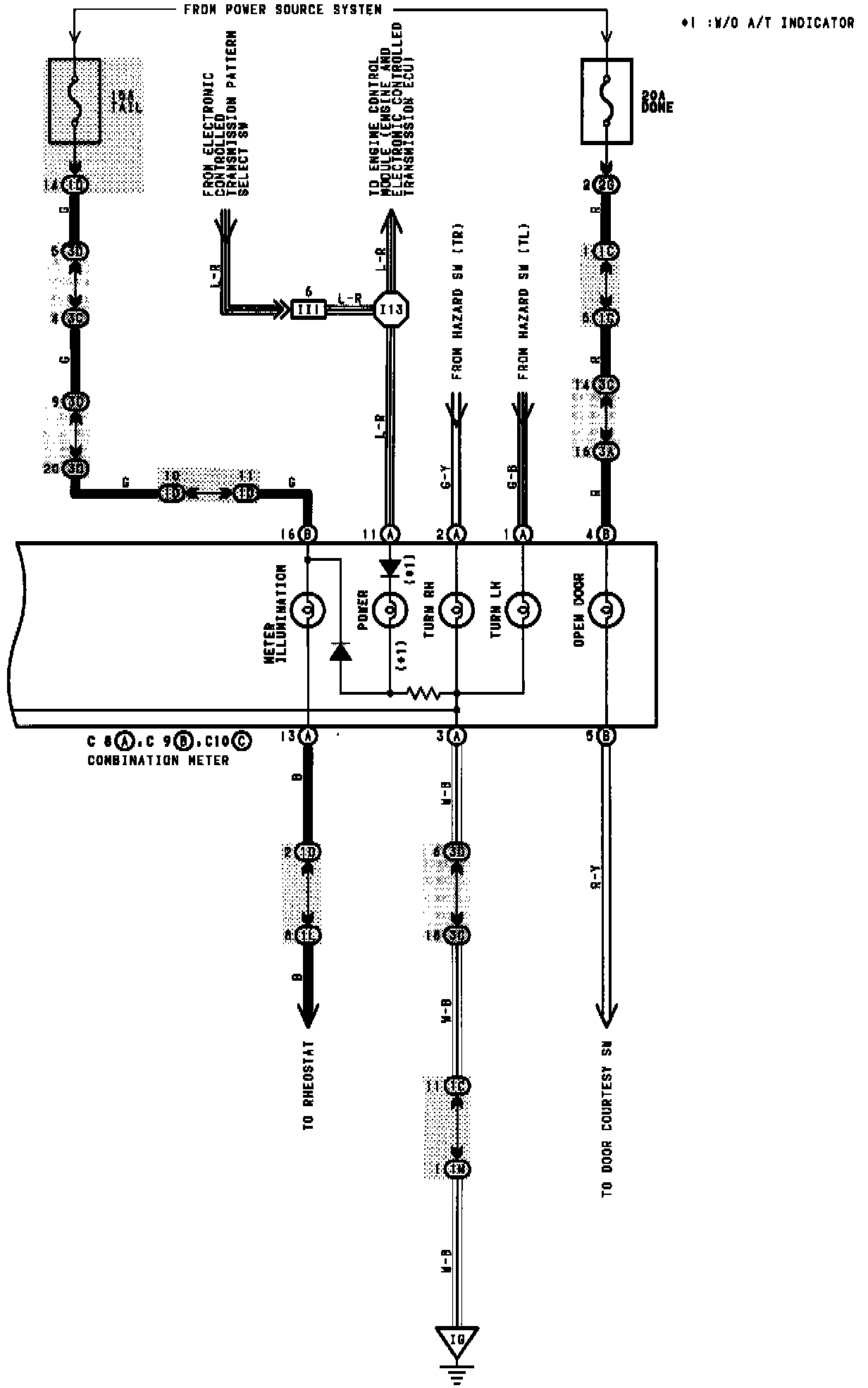

Combination Meter Wiring Diagram:

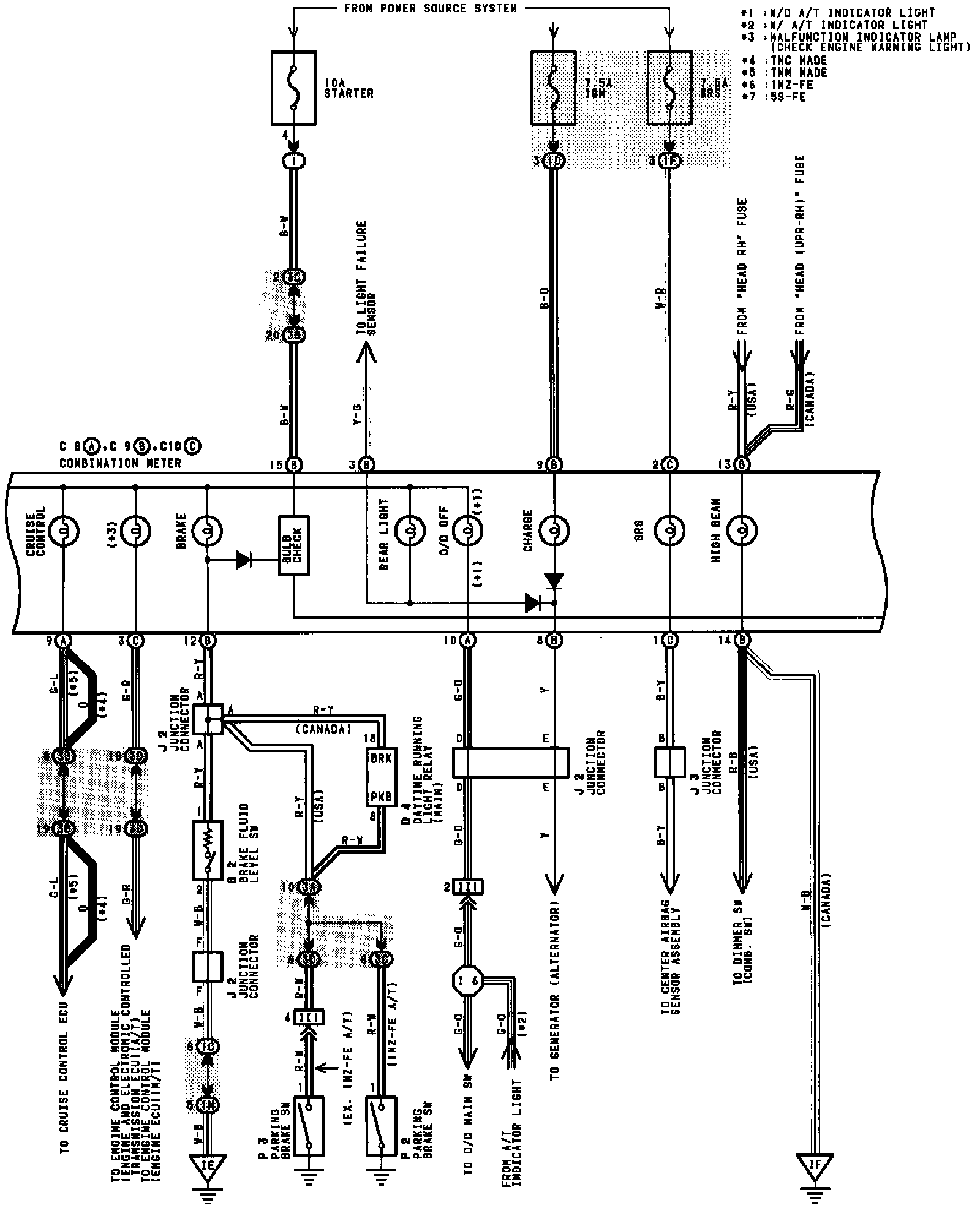

Combination Meter Wiring Diagram:
