ABS (TMC/Denso Made)

ECU Terminal Values Measurement
Using TOYOTA Break-out-box And Toyota Hand-held Tester

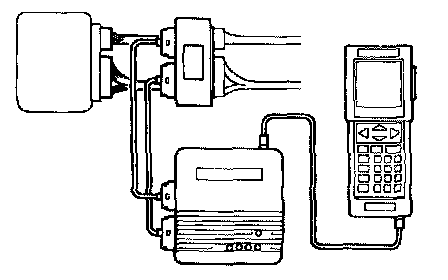

1. Hook up the Toyota break-out-box and Toyota hand-held tester to the vehicle.
2. Read the ECU input/output values by following the prompts on the tester screen.

HINT: Toyota hand-held tester has a "Snapshot" function. This records the measured values and is effective in the diagnosis of intermittent problems.

HINT: Please refer to the Toyota hand-held tester/Toyota breakout-box operator's manual for further details.

ECU Terminals

TMC Made Vehicle/NIPPONDENSO ABS:

TMM Made Vehicle/BOSCH ABS:

ECU Terminals Standard Value
