Tc Terminal Circuit

Circuit Description
Connecting terminals Tc and E1 of the DLC1 or the DLC2 causes the ECU to display the diagnostic trouble code by flashing the ABS warning light.

Wiring Diagrams

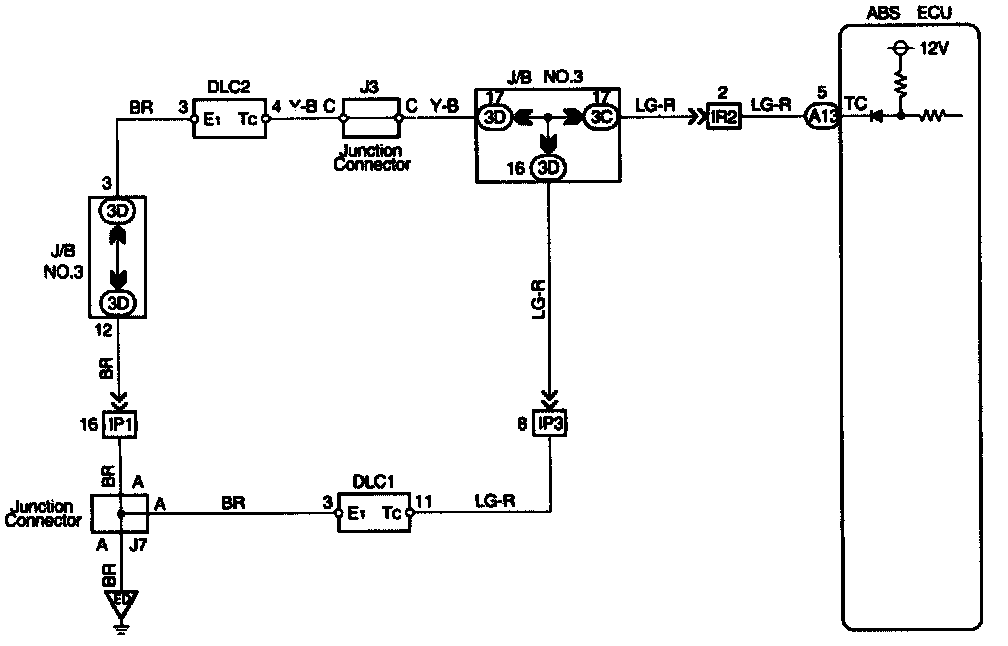

1MZ-FE:

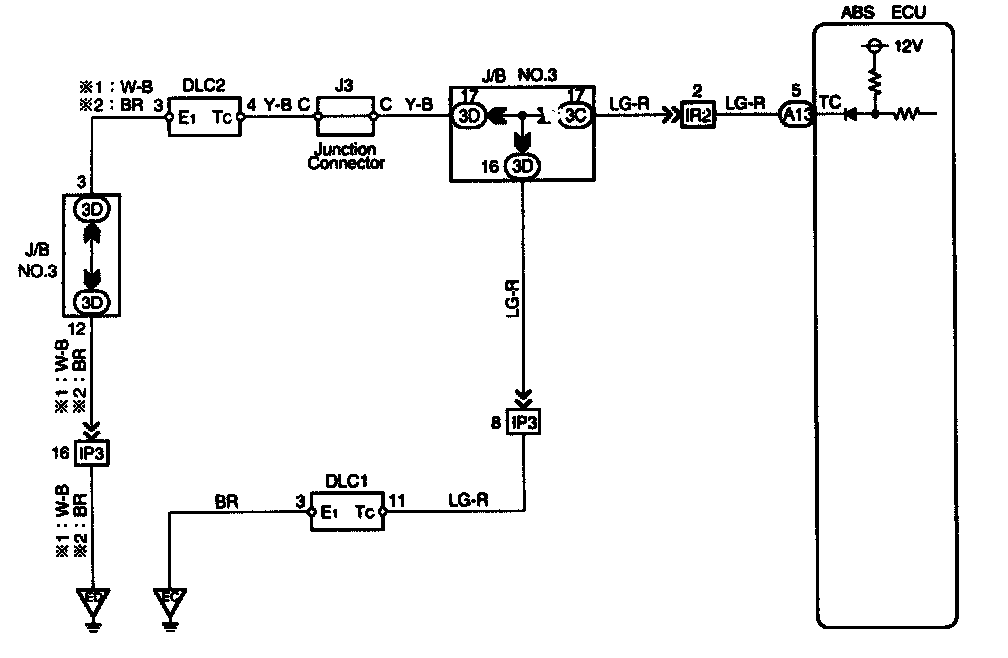

5S-FE:

Inspection Procedure

Step 1:

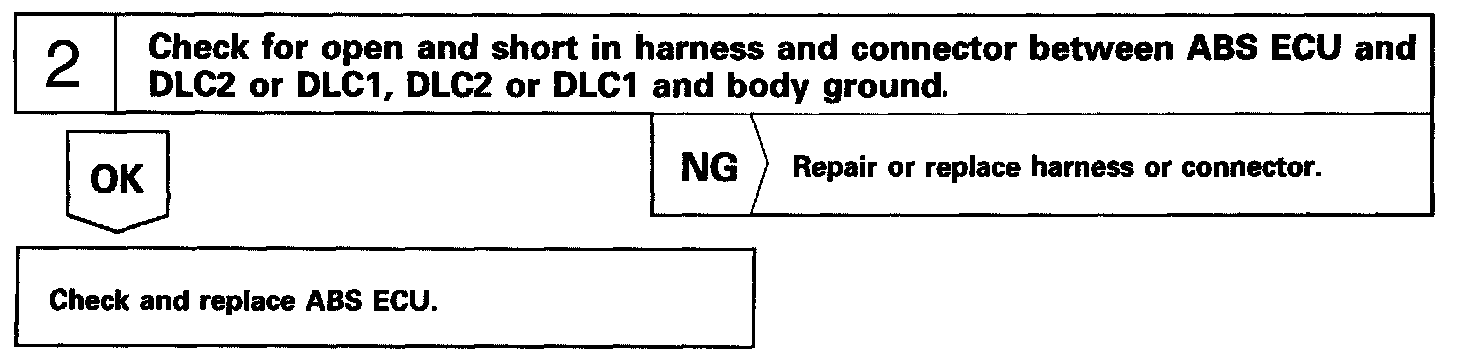

Step 2:

*: Provided that the harness between terminal Tc of DLC2 or DLC1 and terminal Tc of ECU is not open.
