ABS (TMC/Denso Made)

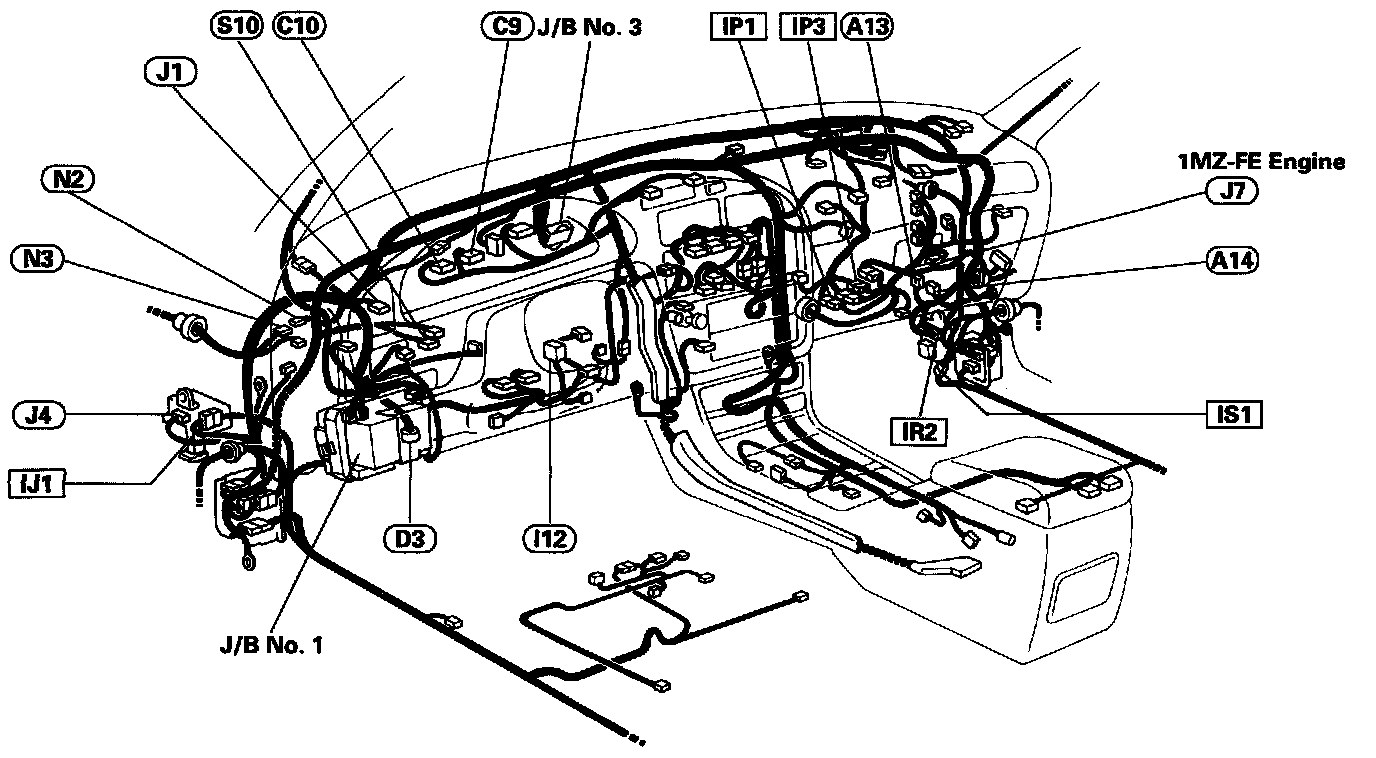

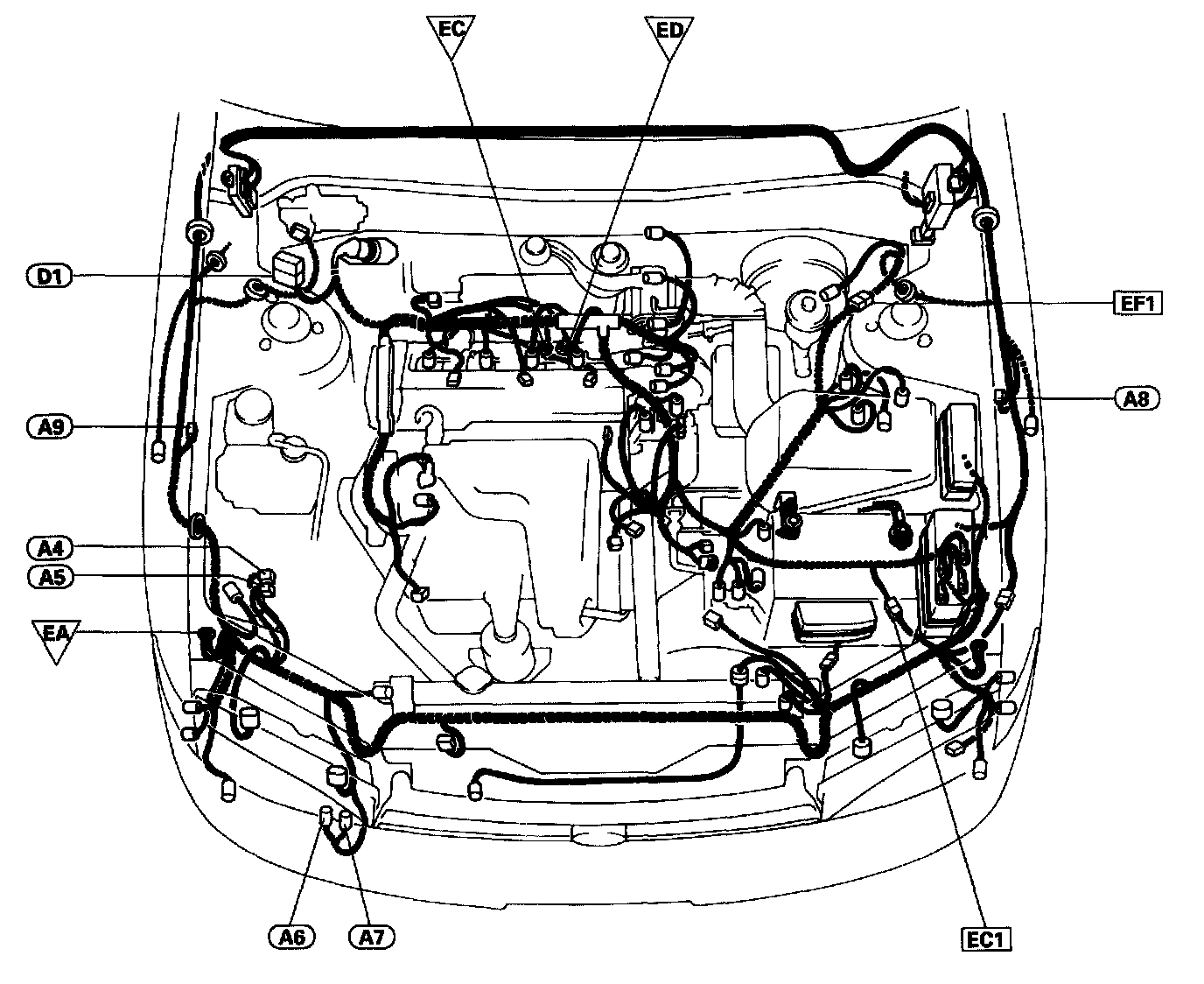

1MZ-FE Connector Locations:

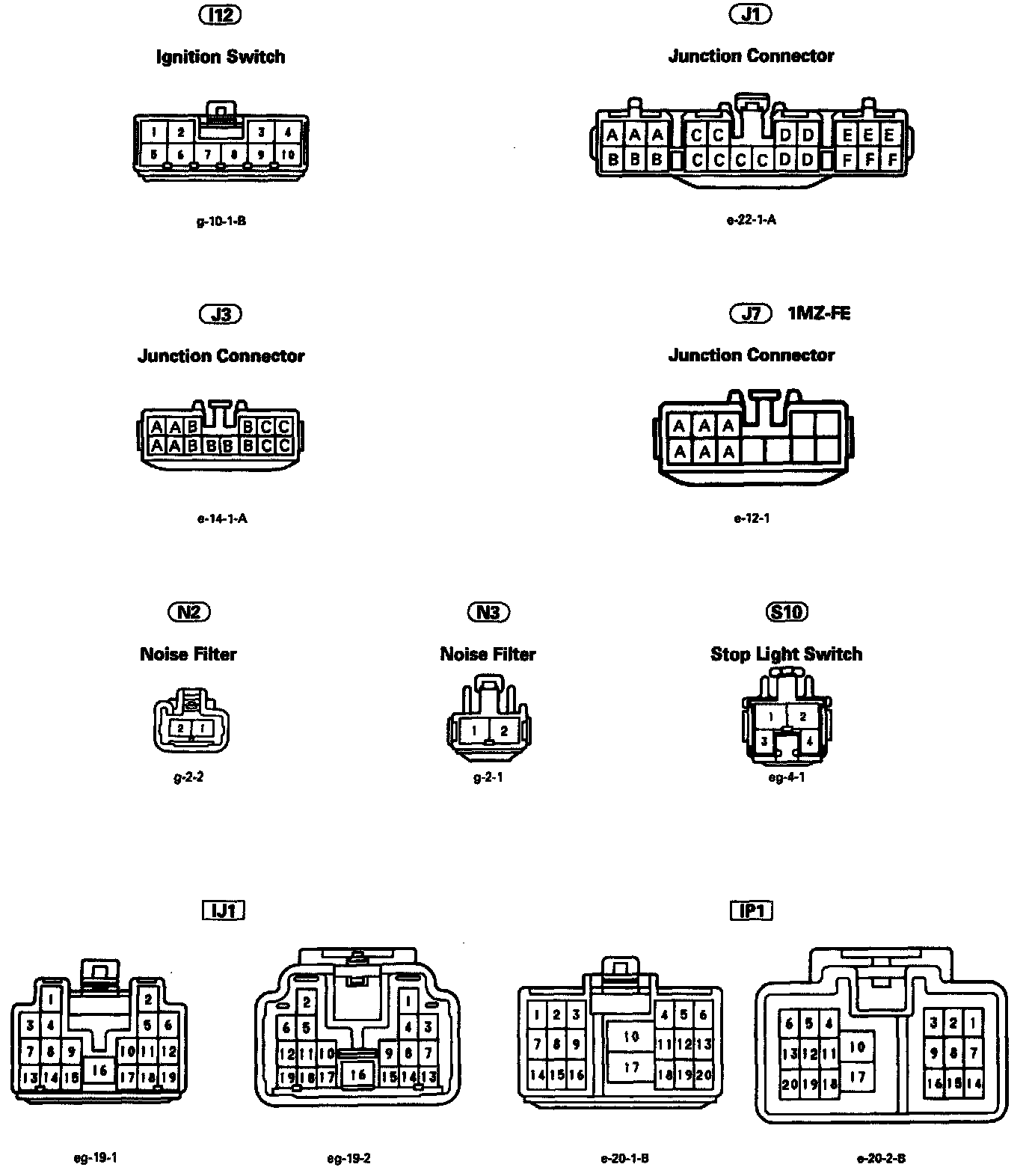

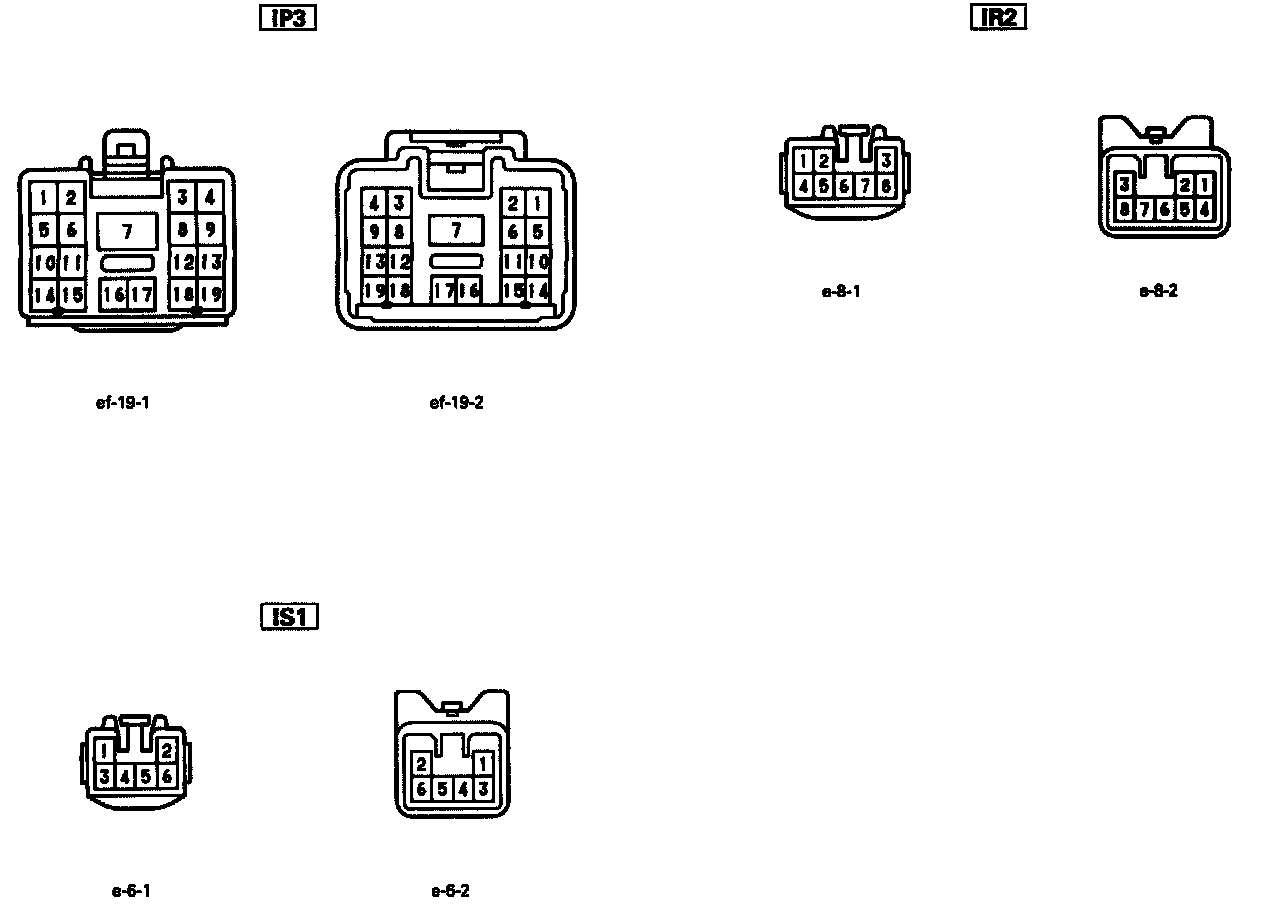

1MZ-FE Connector Views Part 1 Of 2:

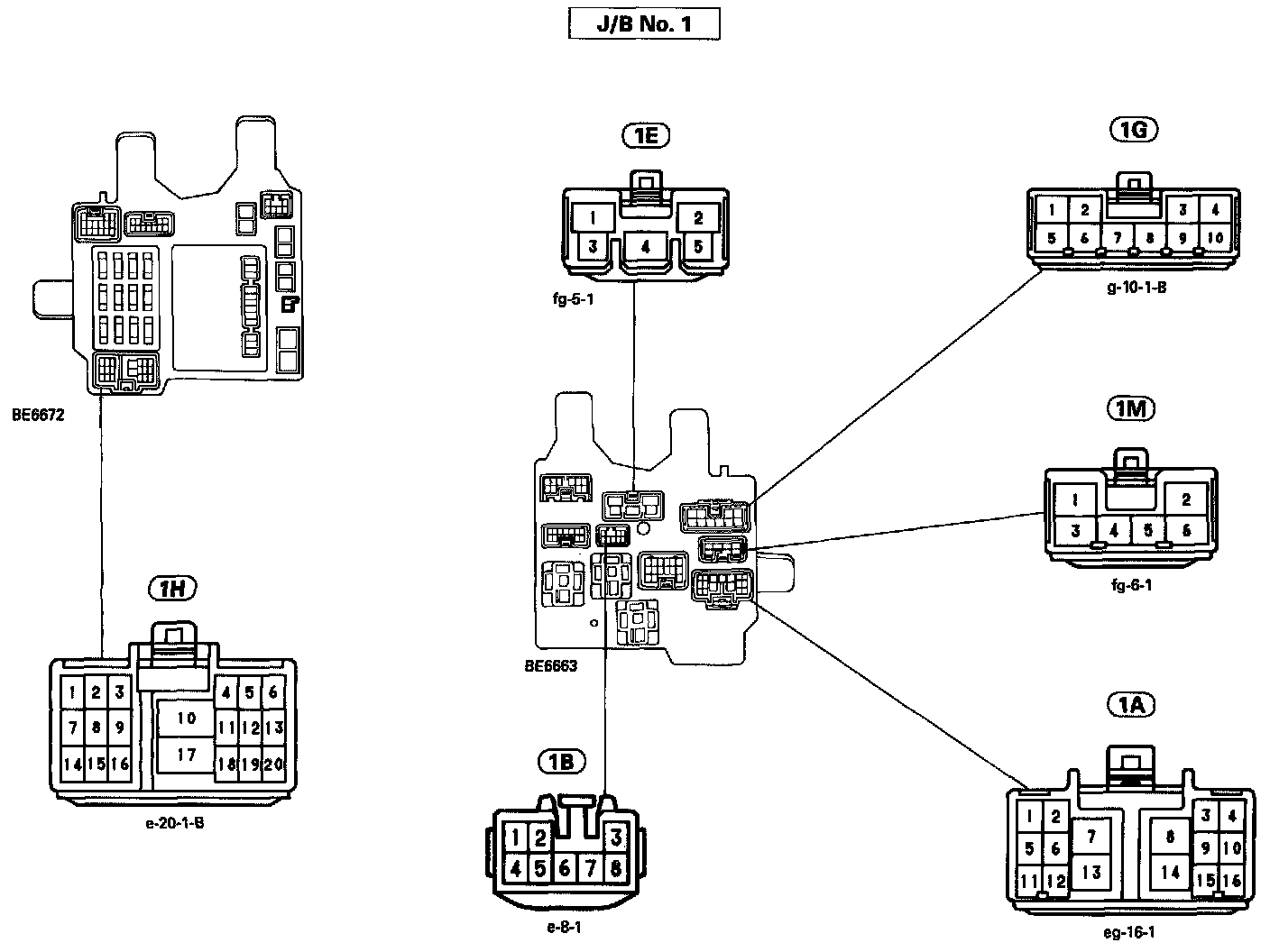

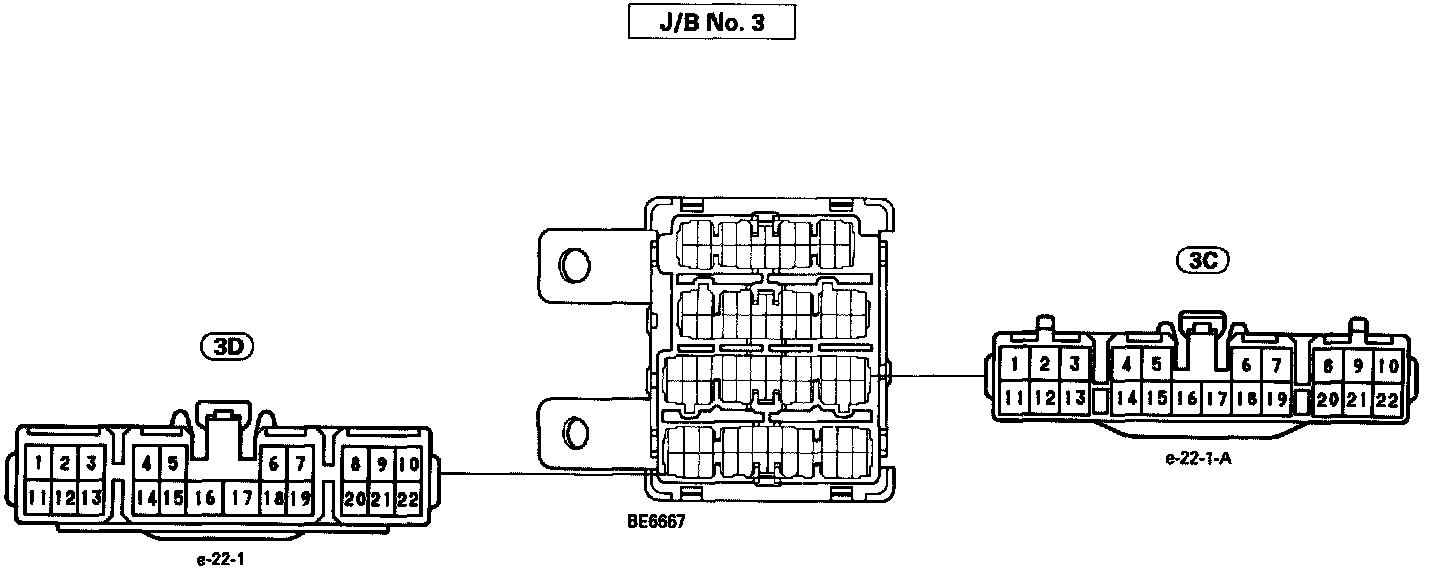

1MZ-FE Connector Views Part 2 Of 2:

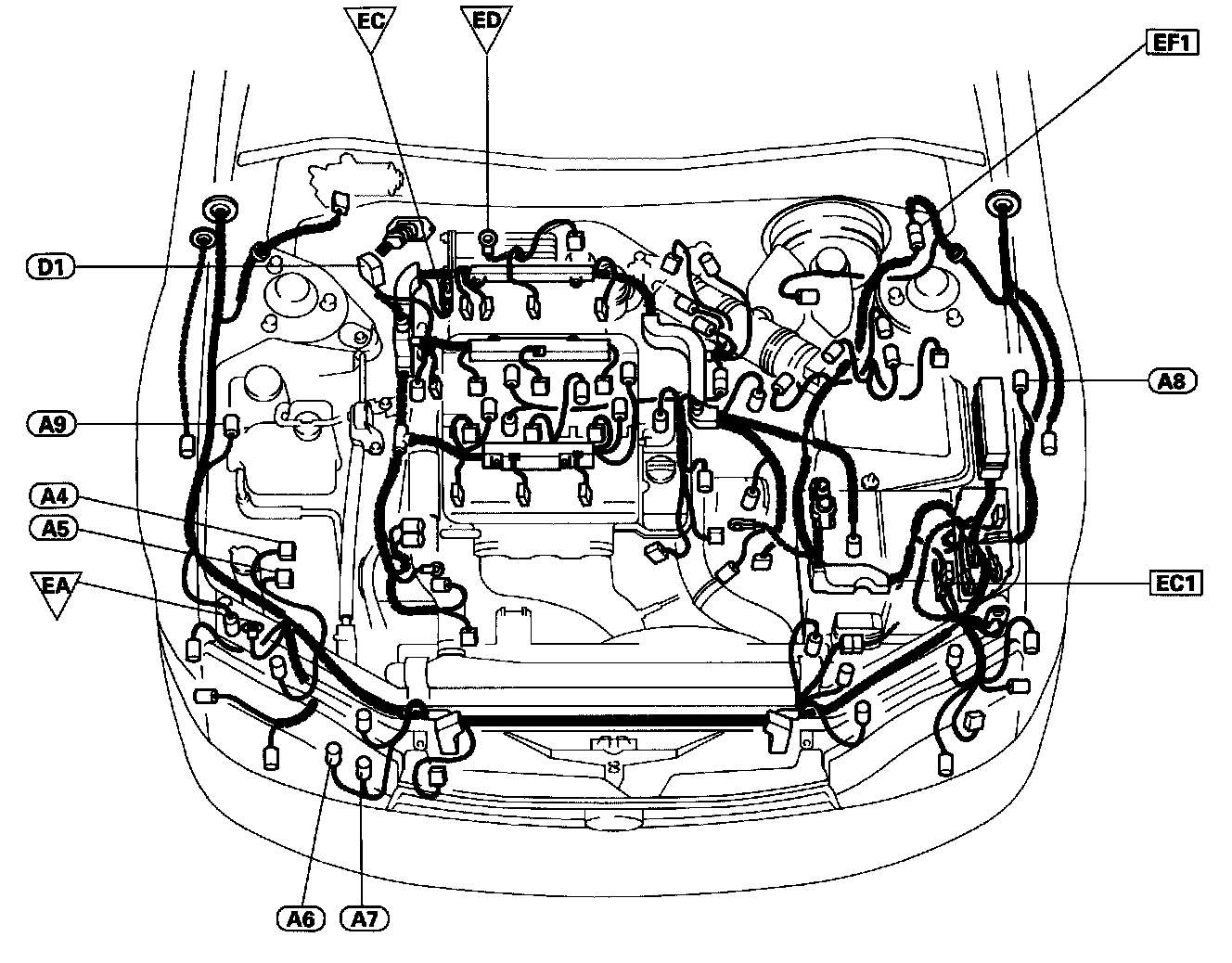

5S-FE Connector Locations:

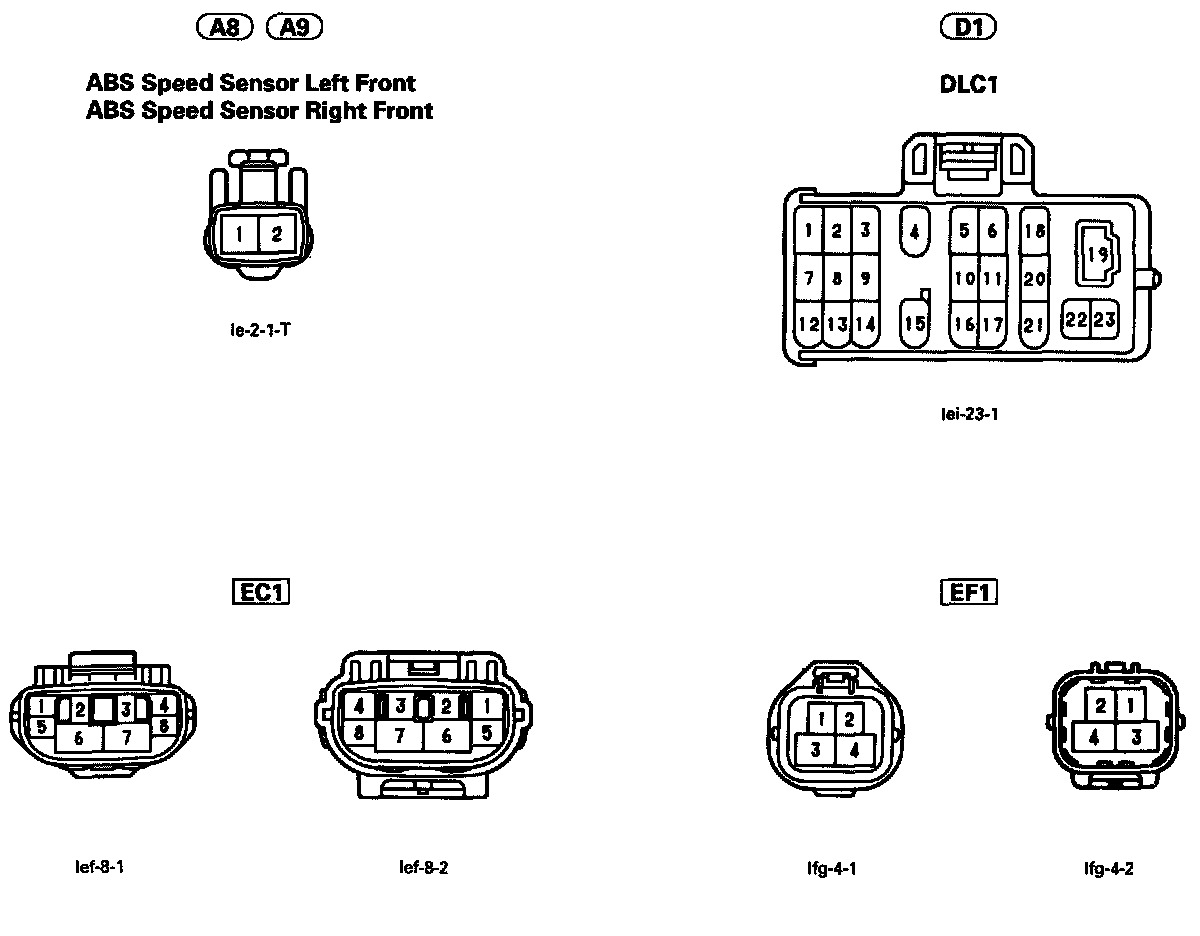

5S-FE Connector Views Part 1 Of 2:

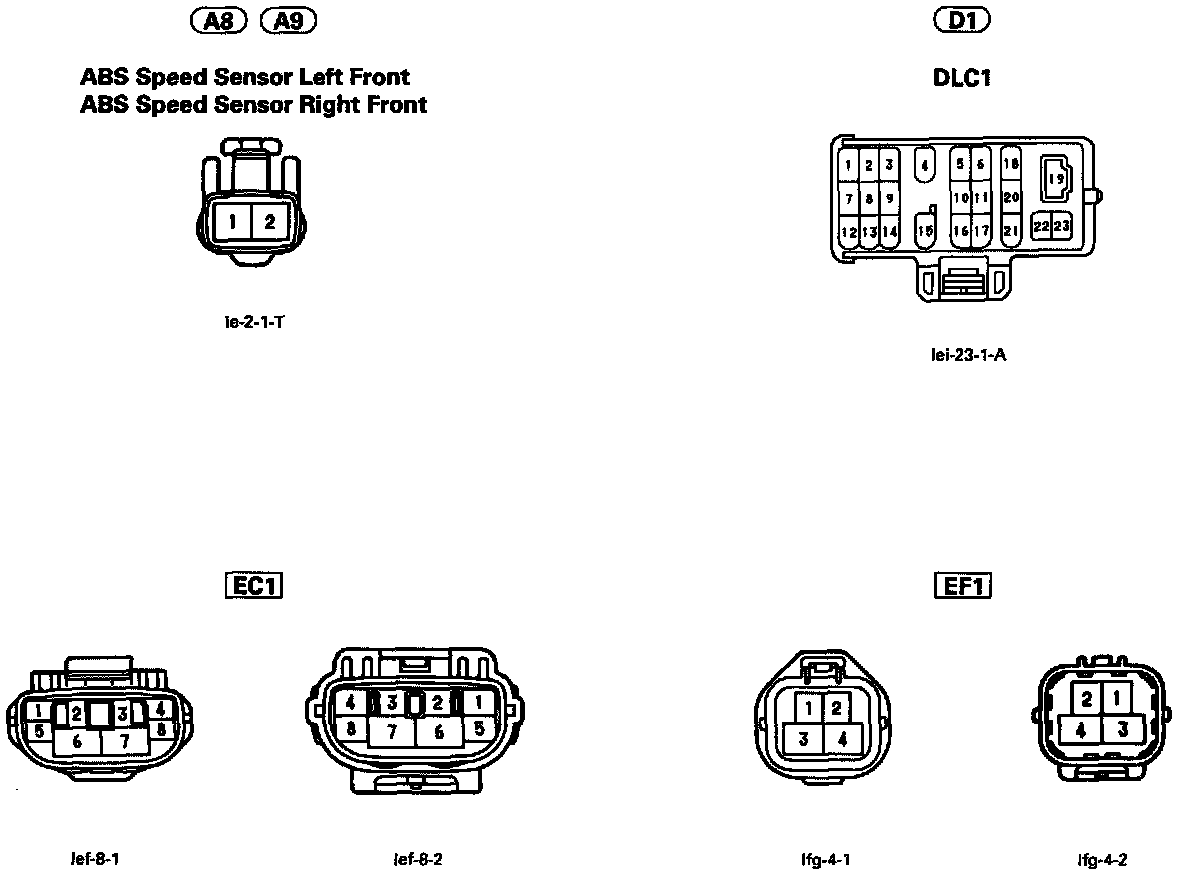

5S-FE Connector Views Part 2 Of 2:

Connector Location:

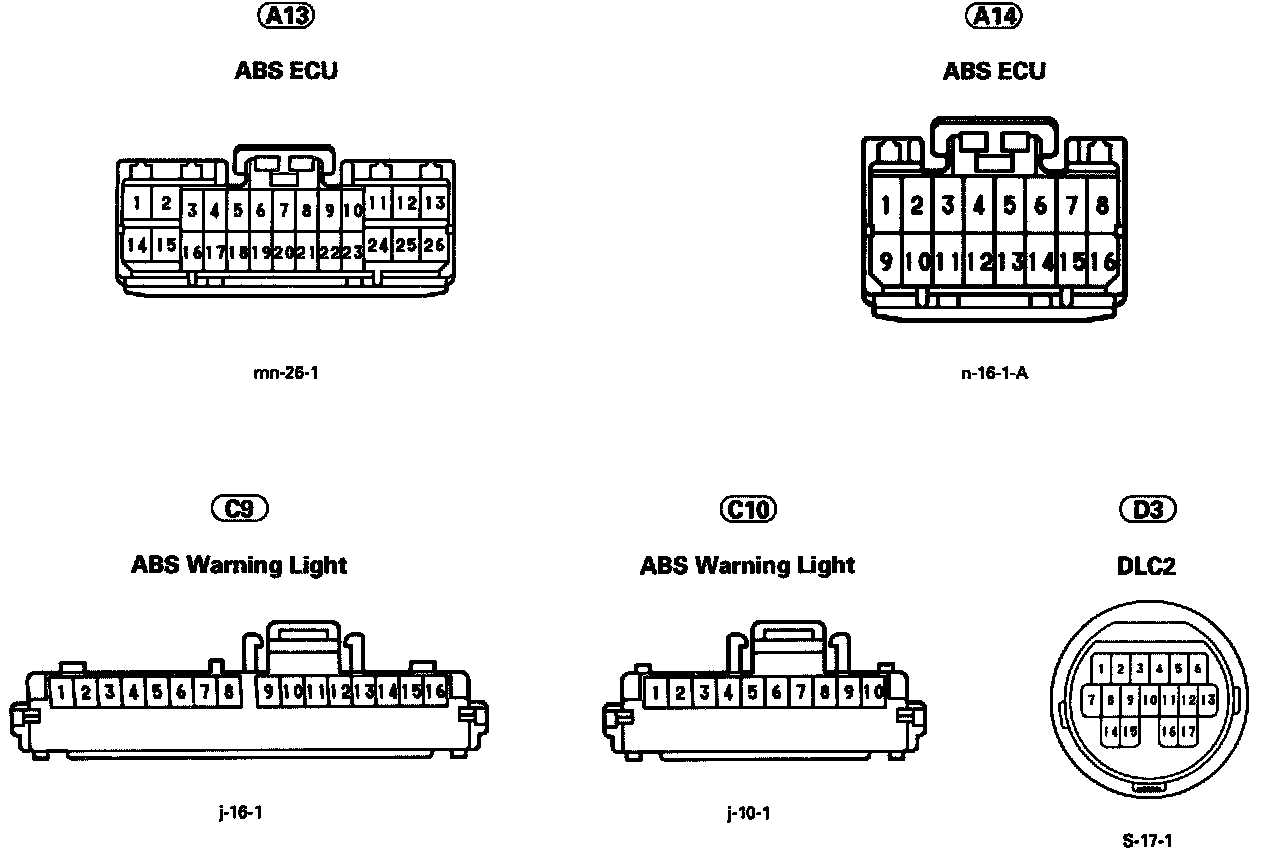

Part 1 Of 5:

Part 2 Of 5:

Part 3 Of 5:

Part 4 Of 5:

Part 5 Of 5:

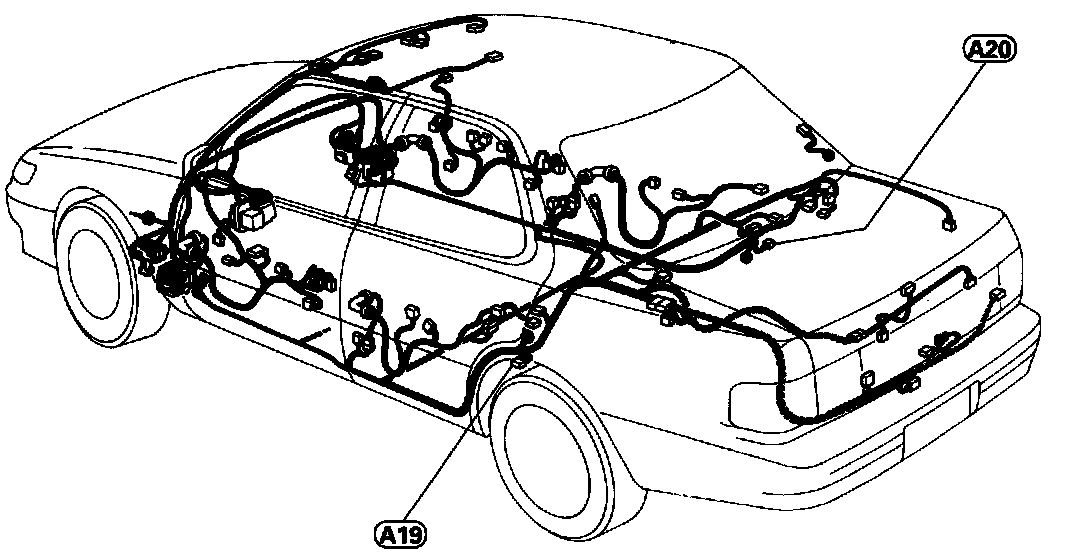

Sedan:

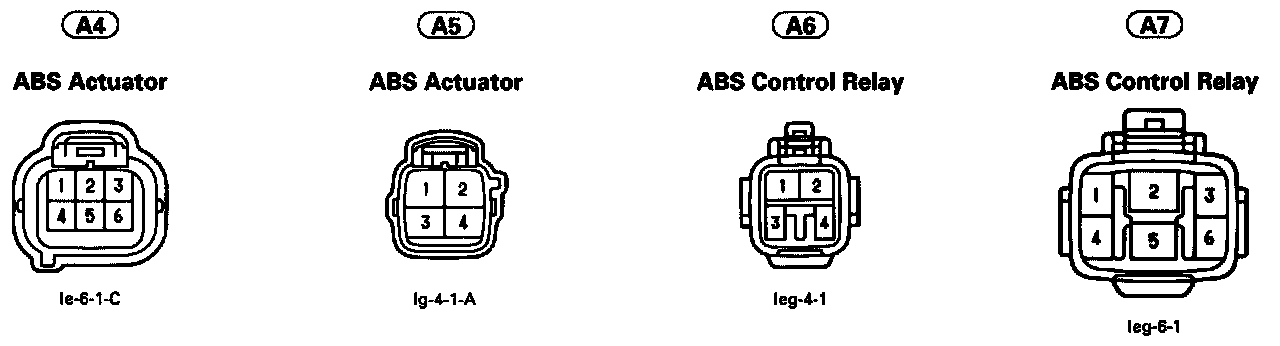

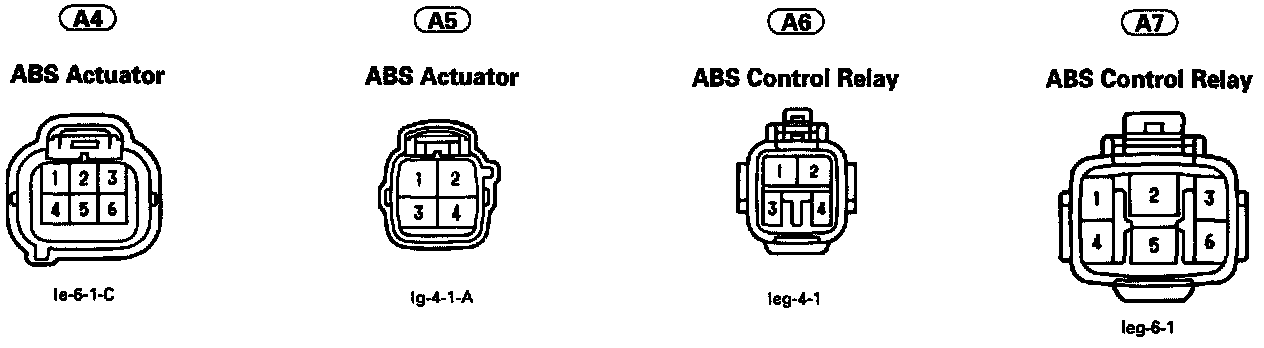

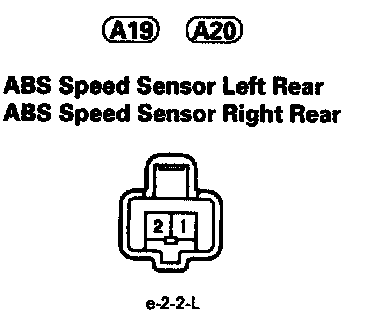

Connector:
