Door Unlock Detection Switch

DOOR UNLOCK DETECTION SWITCH INSPECTION

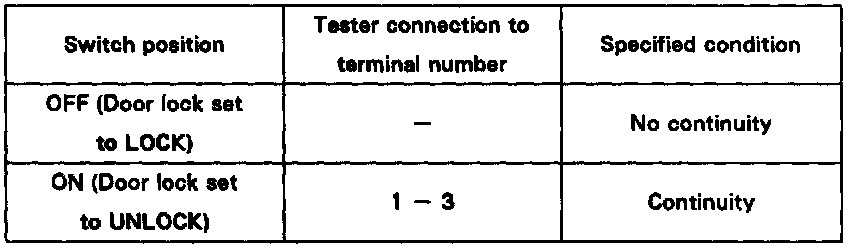

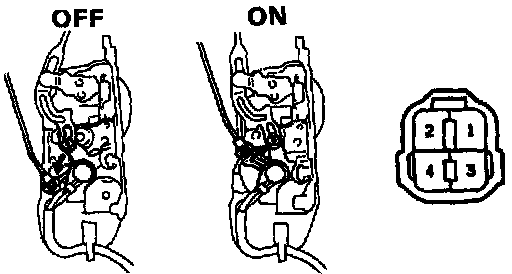

INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY








If continuity is not as specified, replace the door lock assembly
