Throttle Position Sensor Inspection

Throttle Position Sensor Circuit

CIRCUIT DESCRIPTION
The throttle position sensor detects the throttle valve opening angle and sends signals to the ECM.

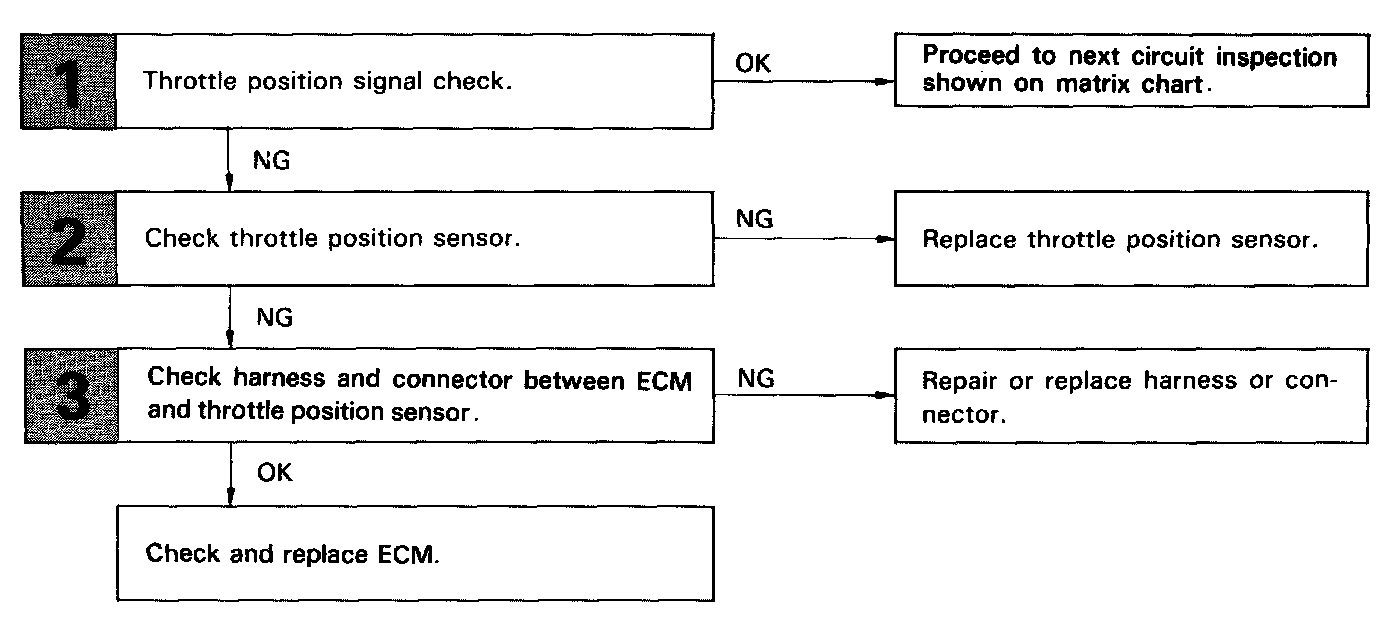

DIAGNOSTIC CHART

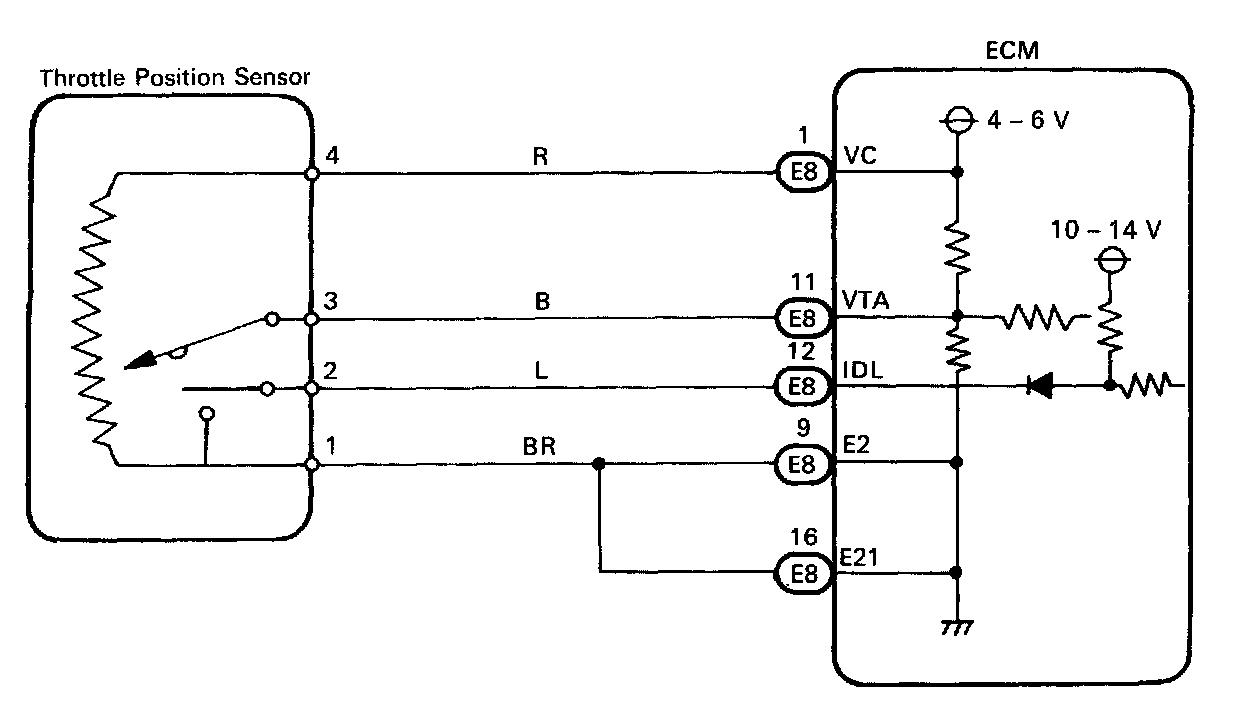

WIRING DIAGRAM

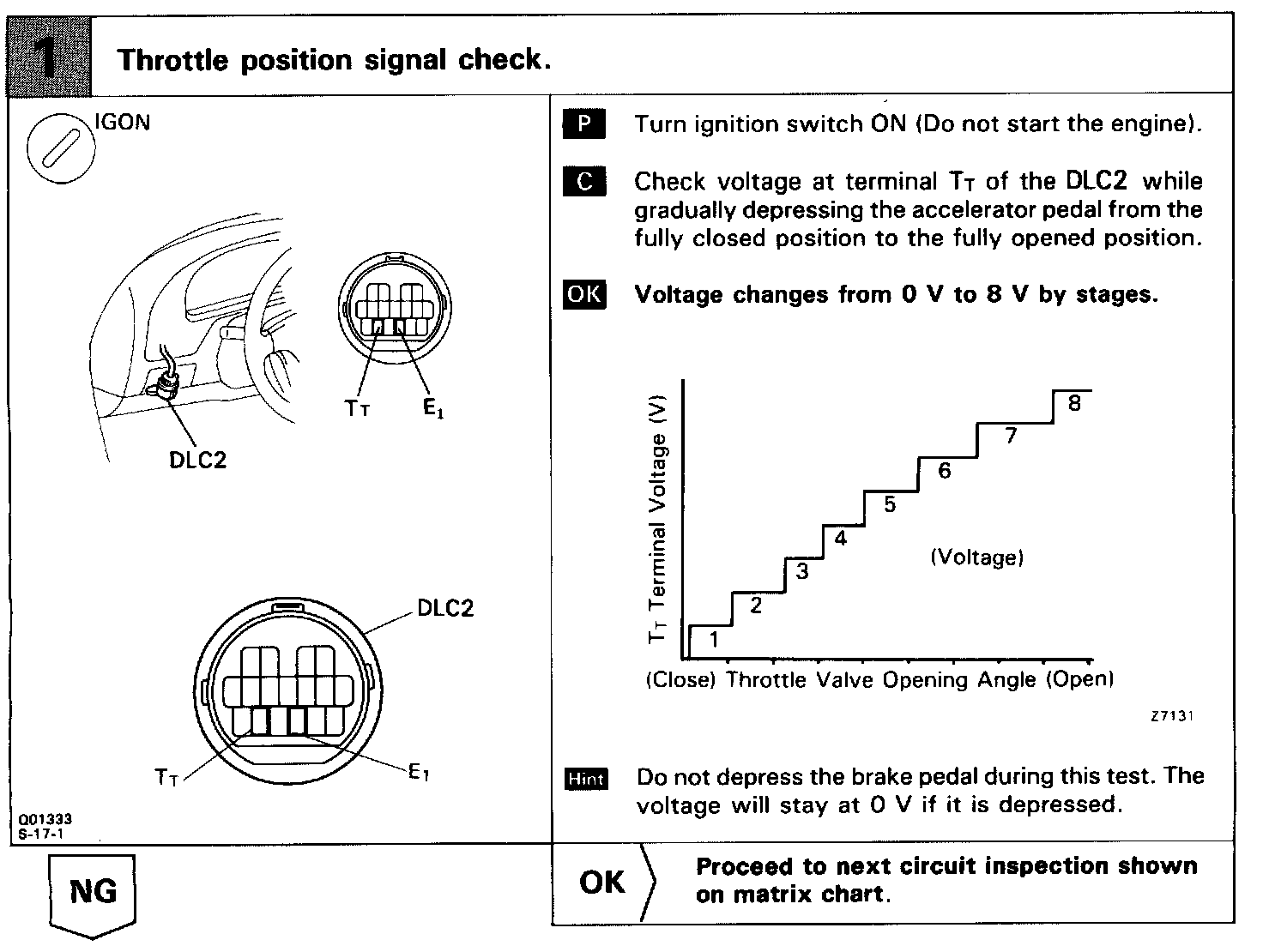

Step 1:

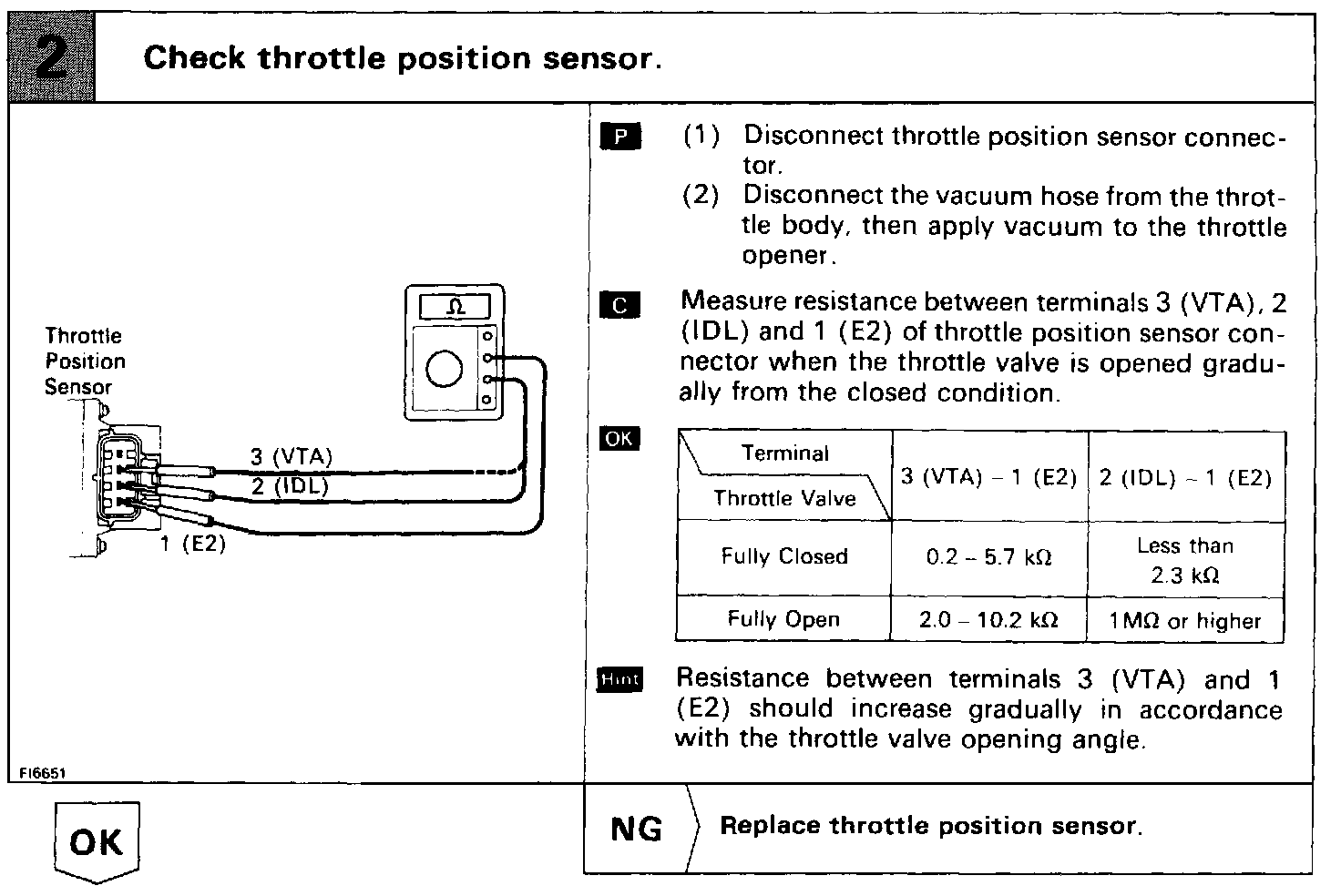

Step 2:

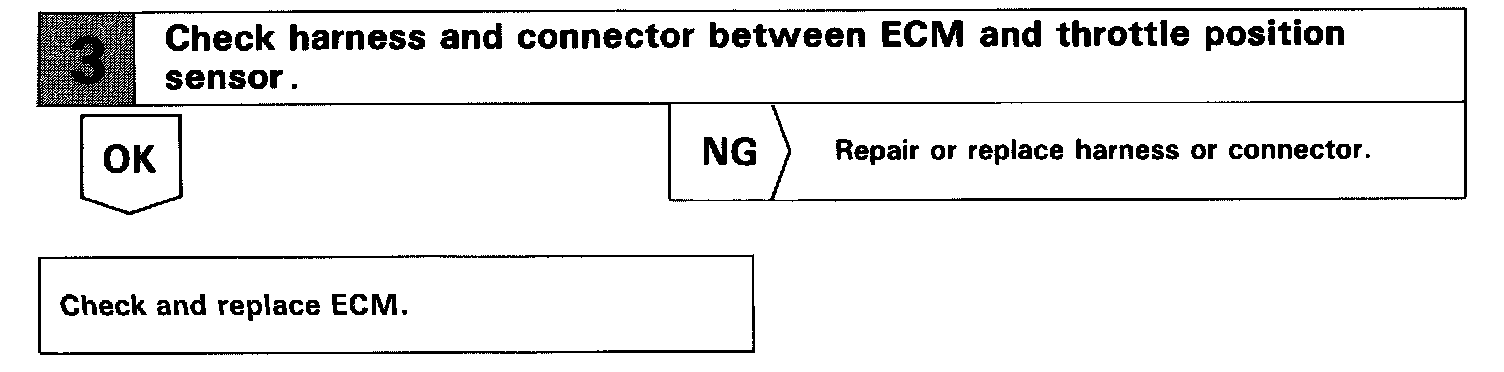

Step 3:

INSPECTION PROCEDURE
