EGR Temperature Sensor: Locations

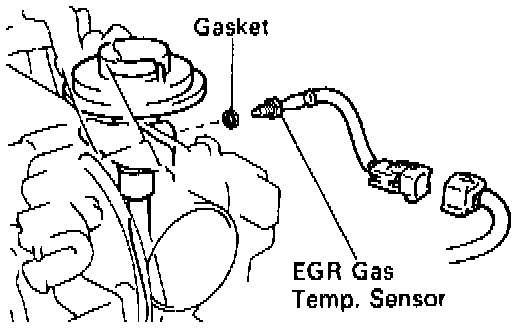

The Exhaust Gas Recirculation
(EGR)
Temperature Sensor is located at the base of the EGR Valve.
