Oscilloscope Patterns and Waveforms

INSPECTION USING OSCILLOSCOPE

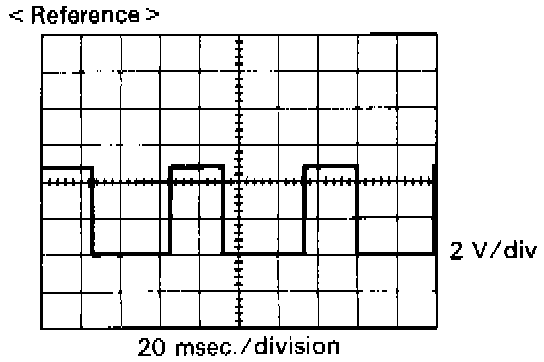

Waveform between terminals "SPD" and "E1" when vehicle speed at approx. 12 mph. The greater the vehicle speed, the greater the frequency of the pulsed signals.
