INSPECTION USING OSCILLOSCOPE

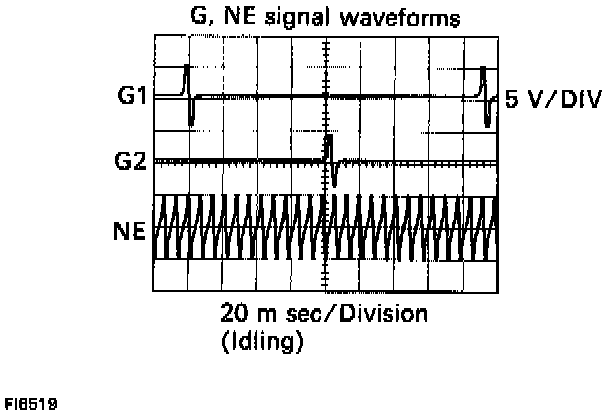

- During cranking or idling, check waveforms between terminals G1 (G2; NE) and G- of ECM.
- The correct waveforms appear as shown in the illustration.
