Receiver Dryer: Service and Repair

REMOVAL

1. Recover refrigerant from refrigeration system.

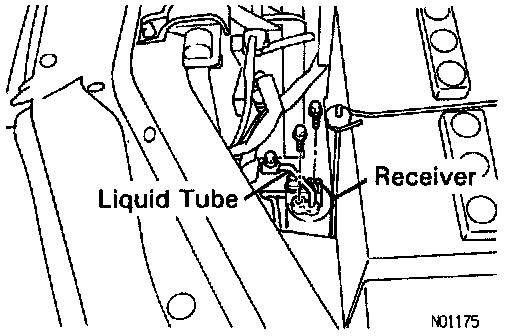

2. Remove two liquid tubes from receiver. Remove two bolts and both tubes from the receiver.

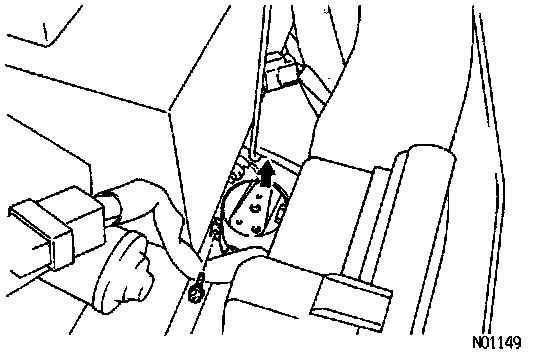

3. Remove the bolt, then remove the receiver from receiver holder.

NOTE: Cap the open fittings immediately to keeps moisture out of the system.

INSTALLATION

1. Install the receiver into the receiver holder with the bolt.
2. Install two liquid tubes to the receiver with two bolts.
Specified torque: 5.5 Nm (48 in.-lb)

NOTE: Do not remove the caps until the tubes are connected.

3. Replenish compressor oil if receiver has been replaced.
Add 15 cc (0.5 fl.oz.)
Compressor oil: ND OIL 6, SUNISO NO. 5GS or equivalent

4. Evacuate air in refrigeration system and charge with refrigerant.
Specified amount: 850 +/- 50 g (29.98 +/- 1.76 oz)

5. Inspect for leakage of refrigerant.
6. Inspect A/C operation.
