Home >> Toyota >> 1994 >> Camry Sedan 2-Door V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse, Relay, and Junction Block Data >> Junction Block No. 2

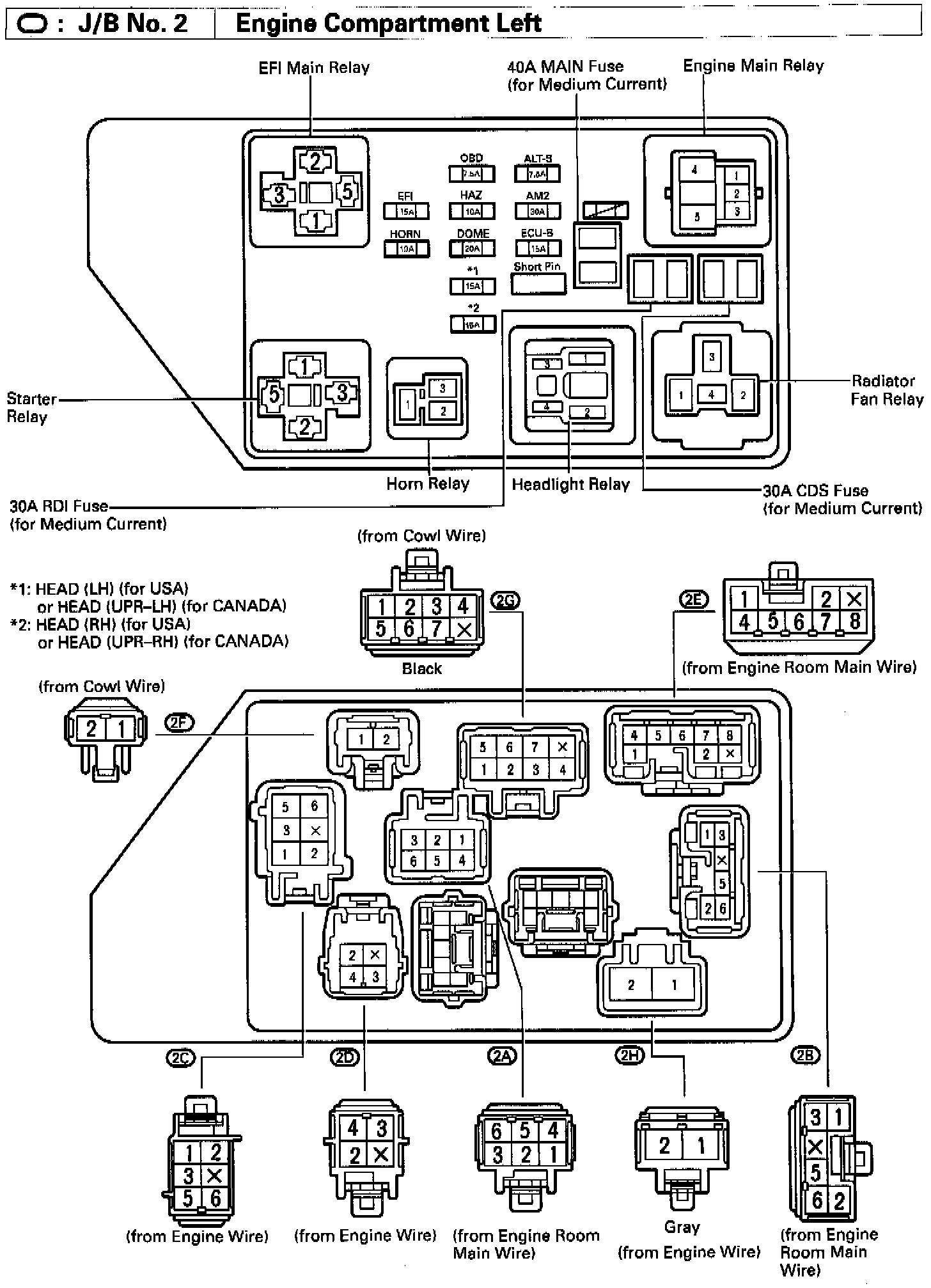

Junction Block No. 2

Relay Locations:
